Description
Avigilon HD NVR Series 3 Premium Surveillance Network Video Recorder
OS and Software
Microsoft Windows Server 2012 R2 with COA
Avigilon Server, Avigilon Control Center, and Avigilon Camera Setup software are installed
ACC Version 6.14.26.0 Enterprise
Perpetual Enterprise license keys supporting 62 cameras are installed
Chassis

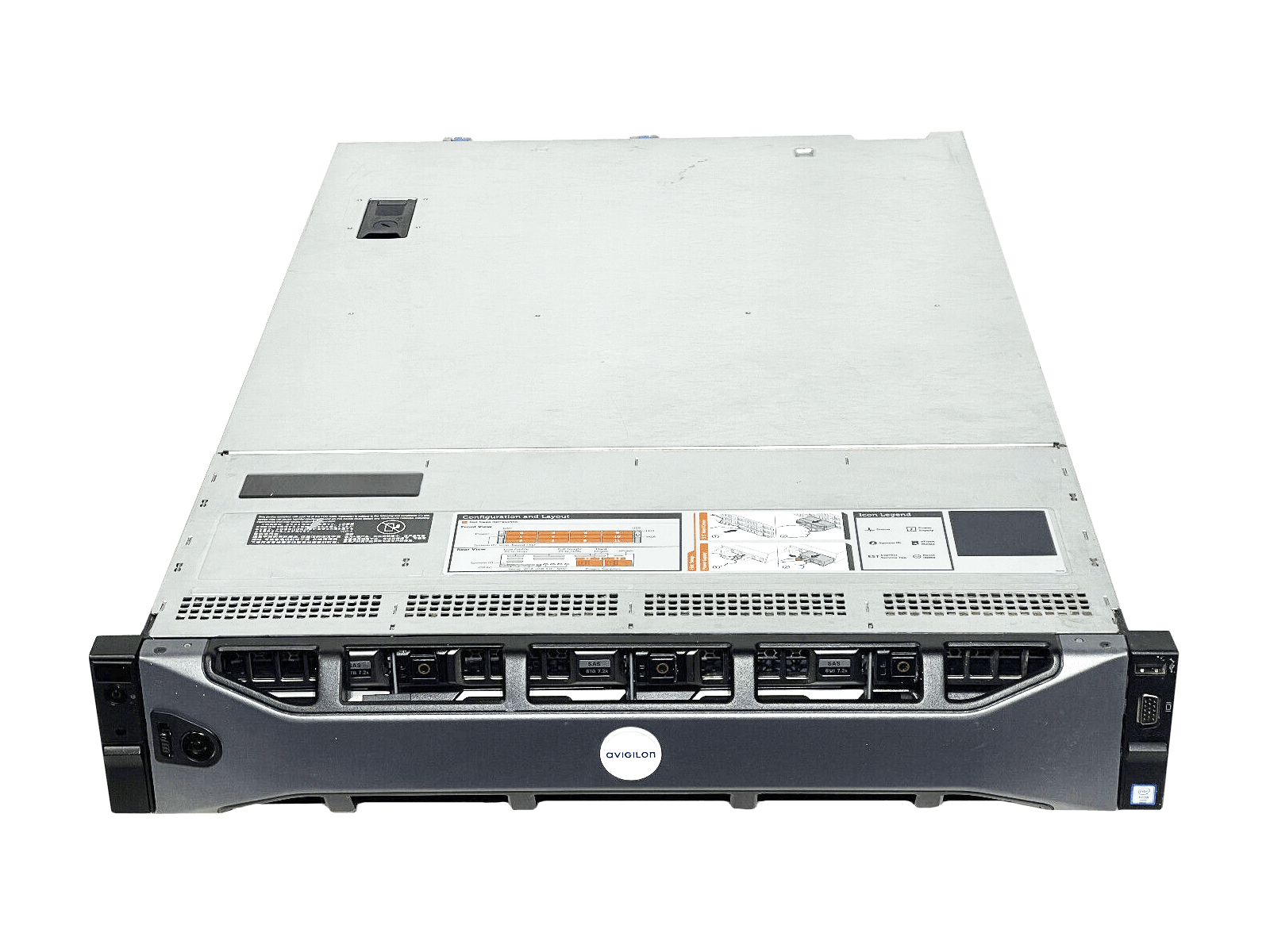

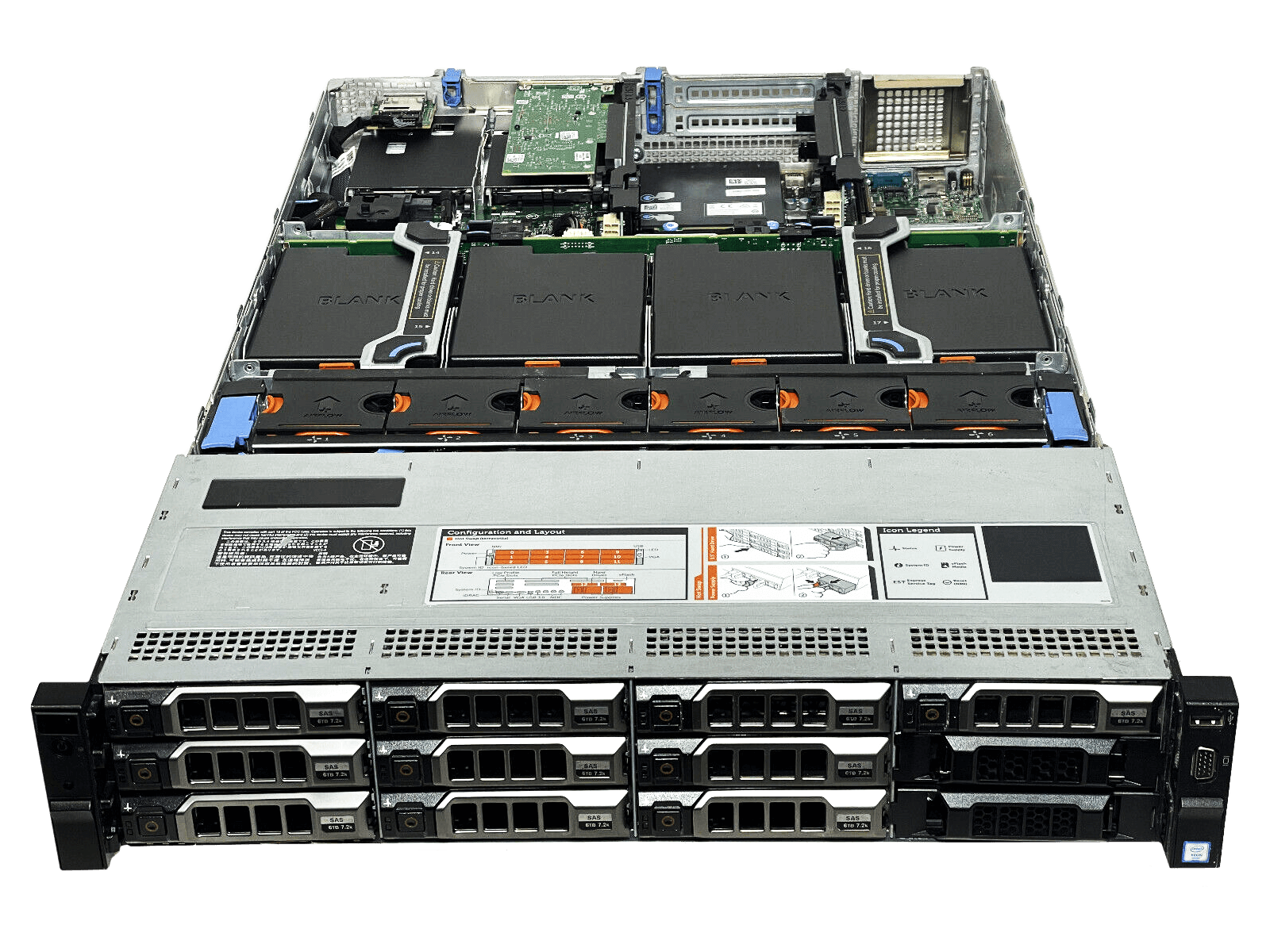

Based on Dell PowerEdge R730XD LFF server
2U Chassis

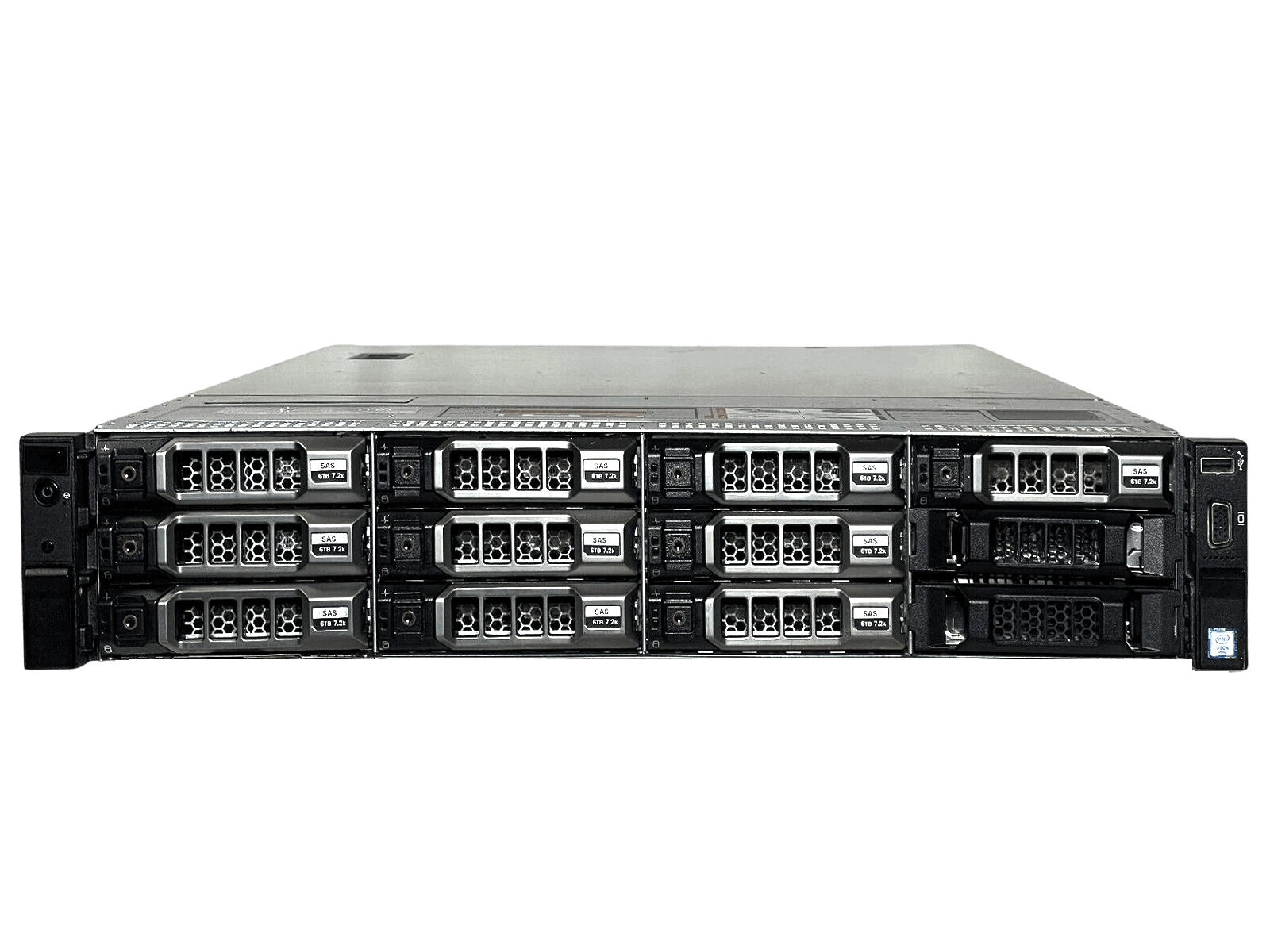

12 bay front backplane - up to 12x 3.5" LFF SAS/SATA drives
4 bay mid backplane - up to 4x 3.5" LFF SAS/SATA drives
2 bay rear backplane - up to 2x 2.5" SFF SAS/SATA drives

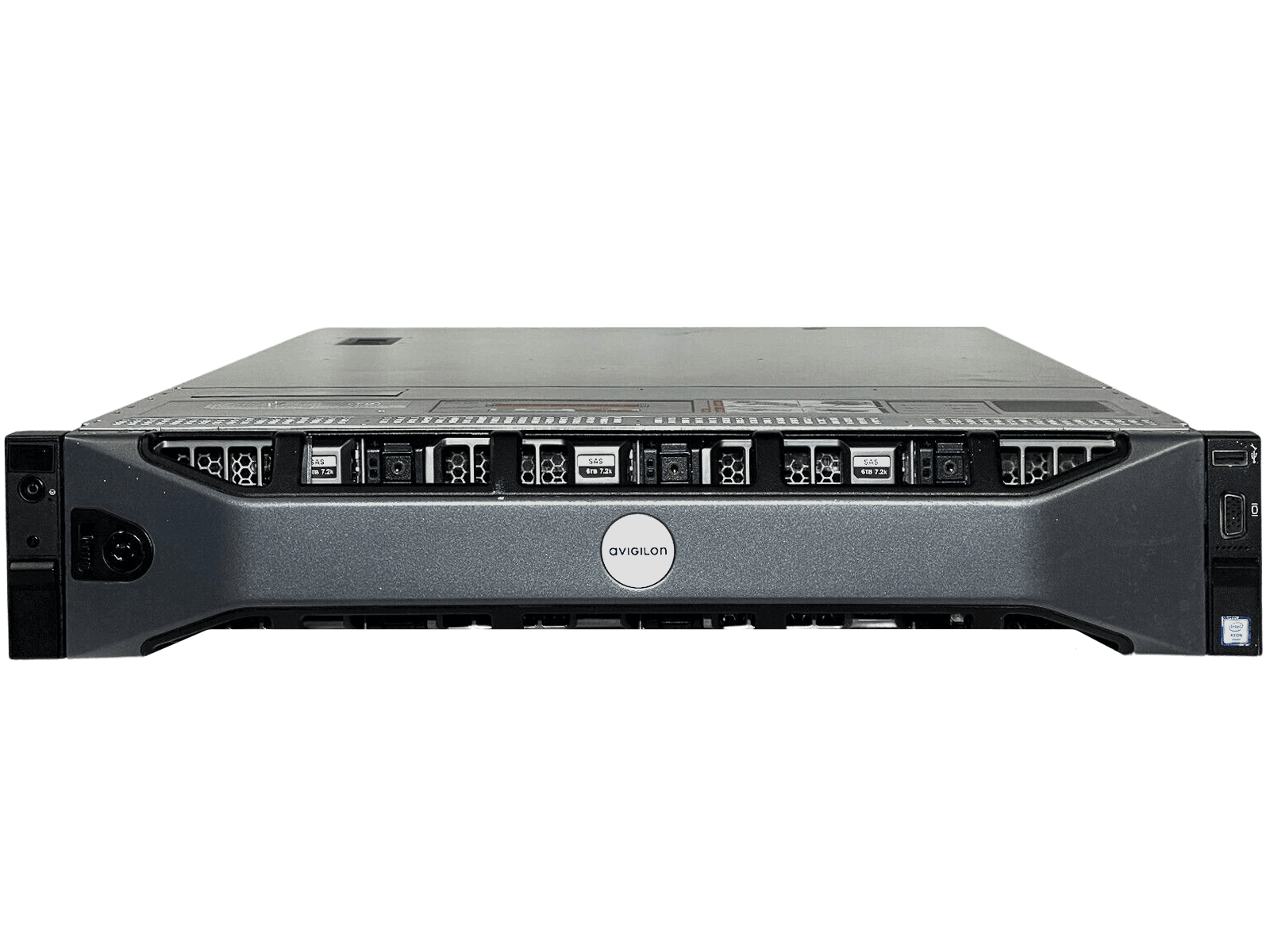

Avigilon bezel is included
Sliding Rail Kit is included

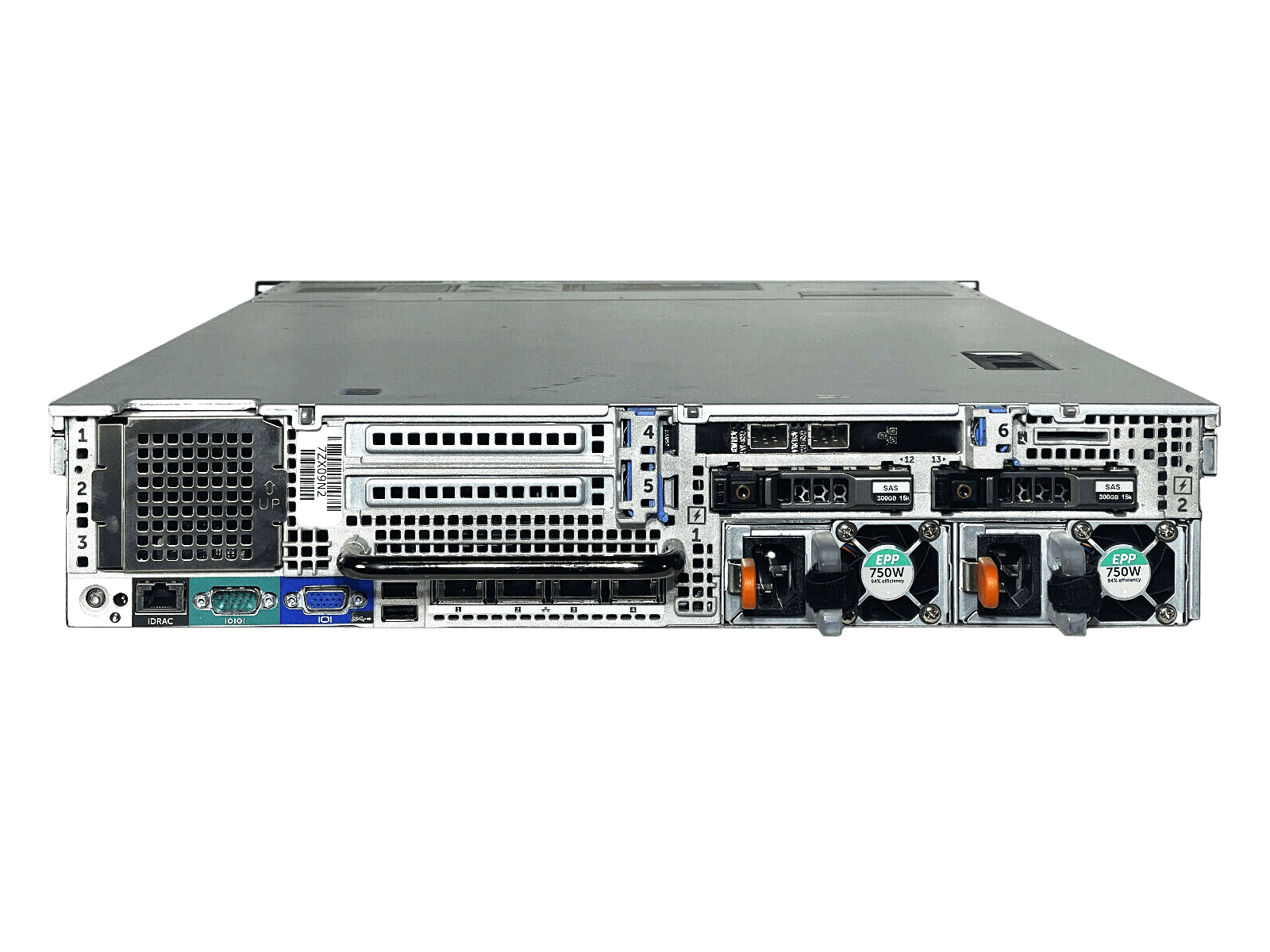

2x Hot-Swappable 750W 80 Plus Platinum PSU
Power cords - free if requested - please specify type and length desired
CPU
Intel(R) Xeon(R) E5-2620 v3 6 cores @ 2.40GHz
RAM
16GB DDR4 Registered ECC memory
HDD/SSD/RAID/Optical

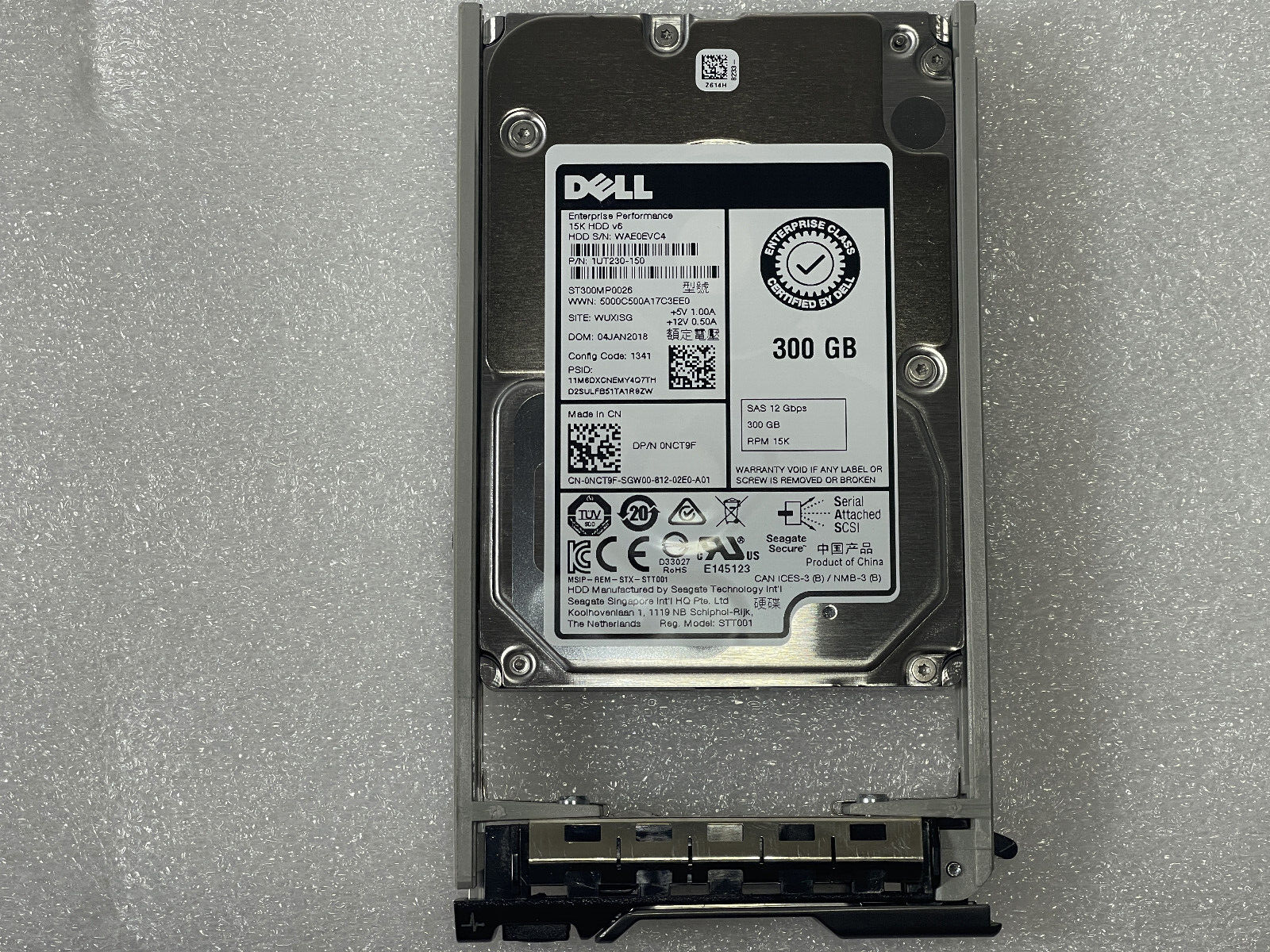

2x 300GB 15K SAS 12Gbps HDDs in RAID 1 for OS

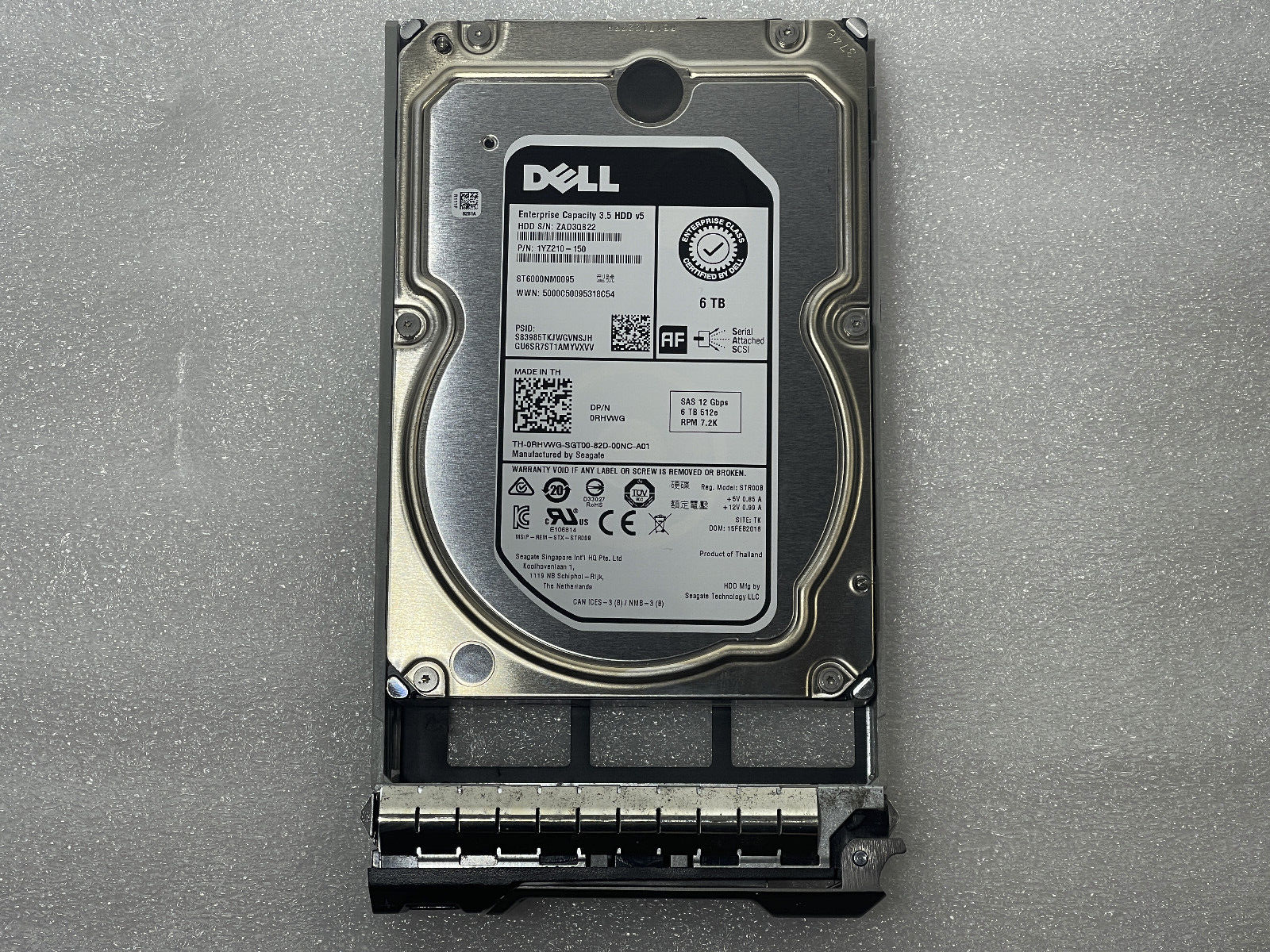

10x 6TB 7.2K SAS 12Gbps HDDs in RAID 6 (60TB raw, 48TB effective), used as Avigilon Server storage
PERC H730P RAID Controller with 2GB Battery-Backed Write Cache
iDRAC
iDRAC8 Express
NIC
4 port Broadcom 5720 Gigabit Ethernet rNDC

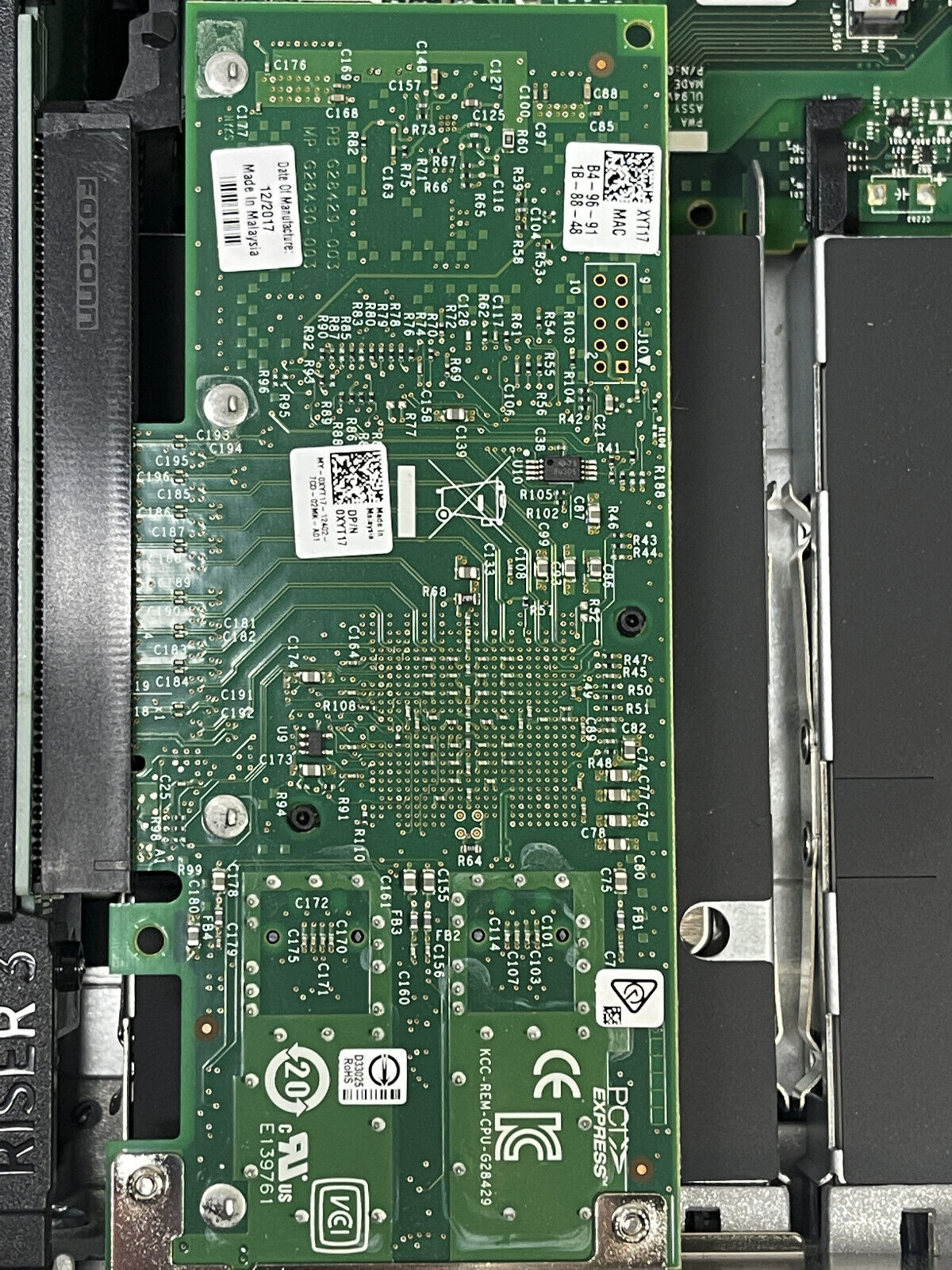

2 port Dell Intel X520 PCI-e 10GbE NIC
Additional info
Part numbers may be different due to manufacturer revisions, for reference only
LOC E-R5-2
