Description

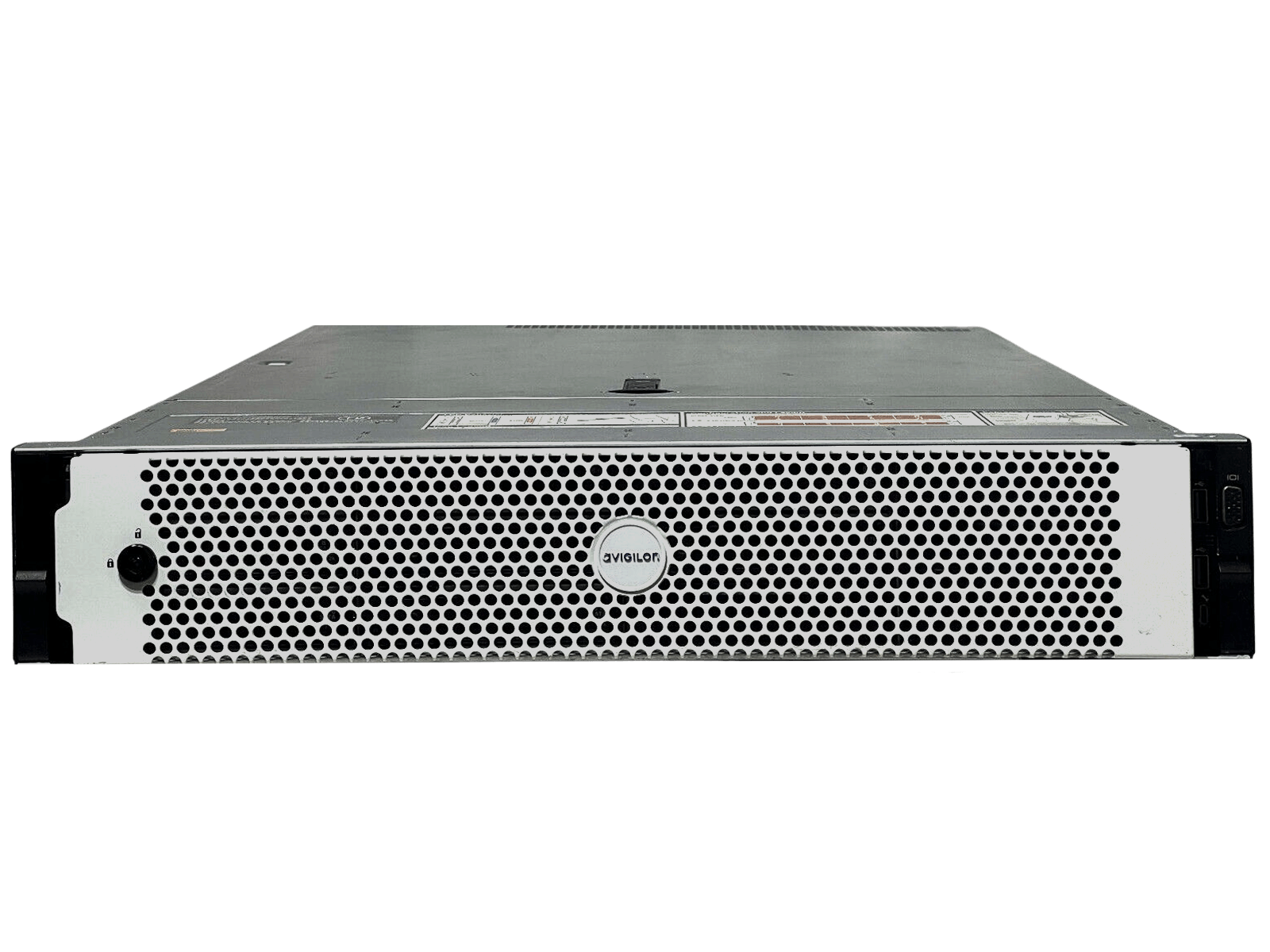

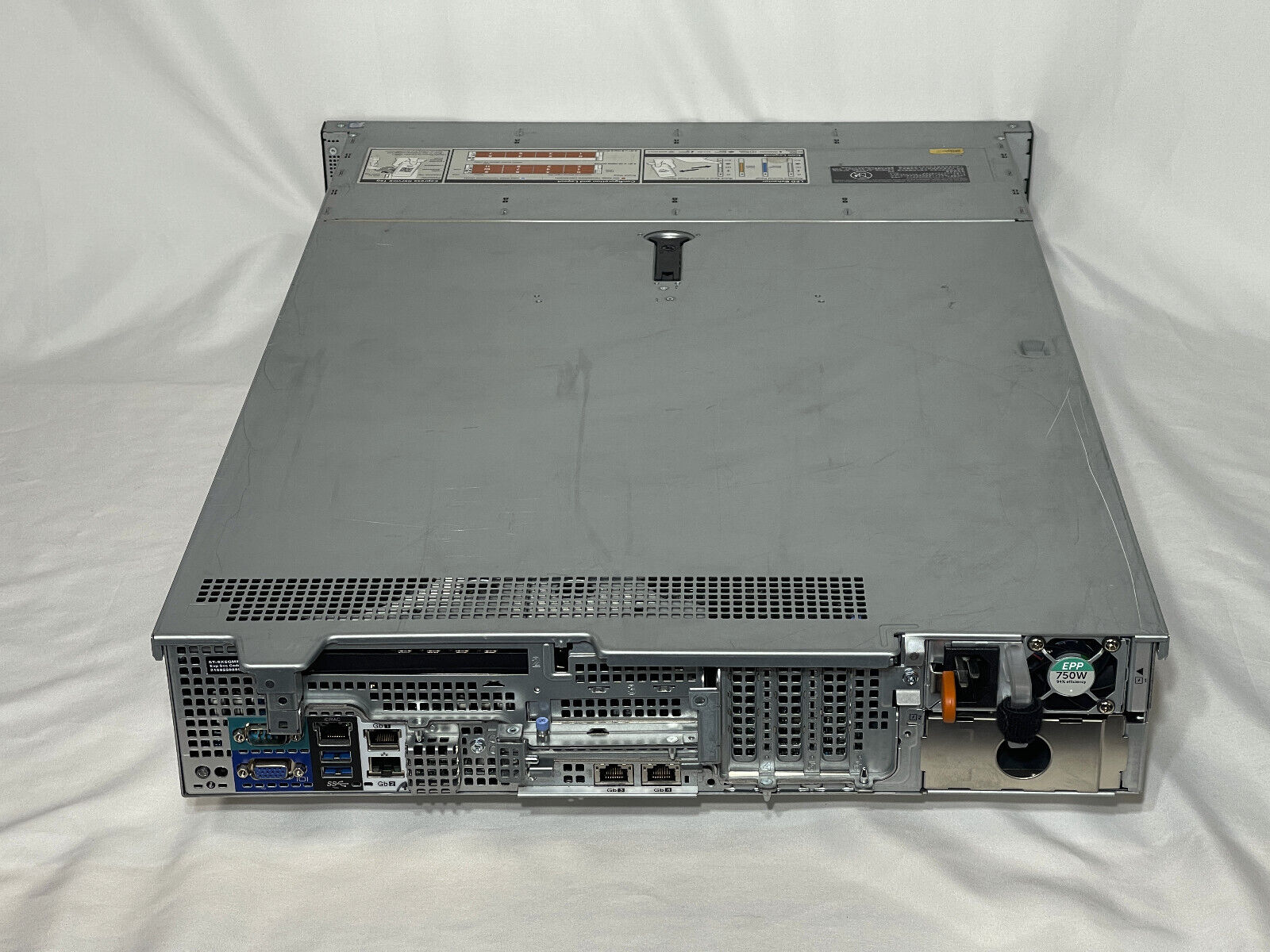

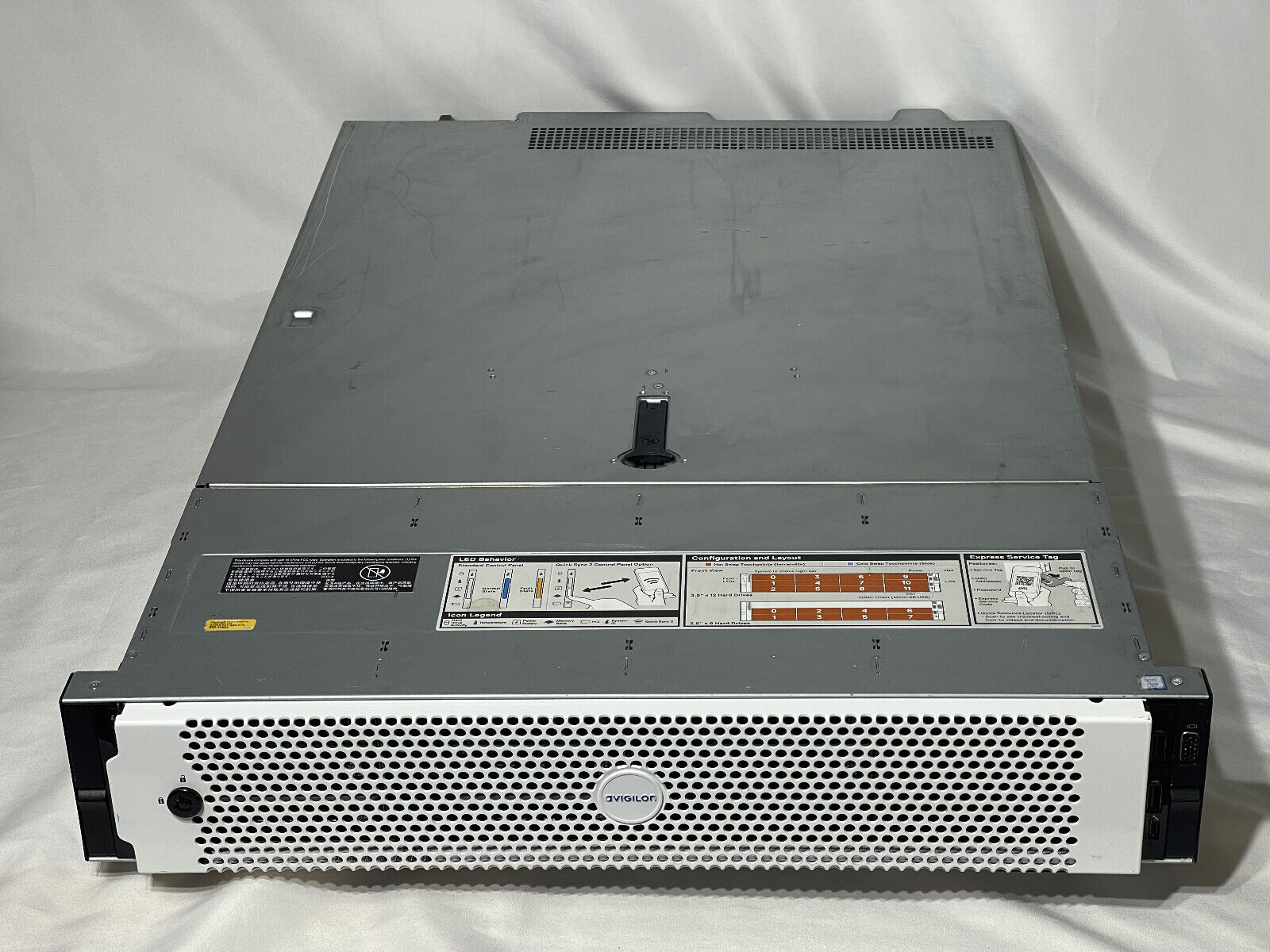

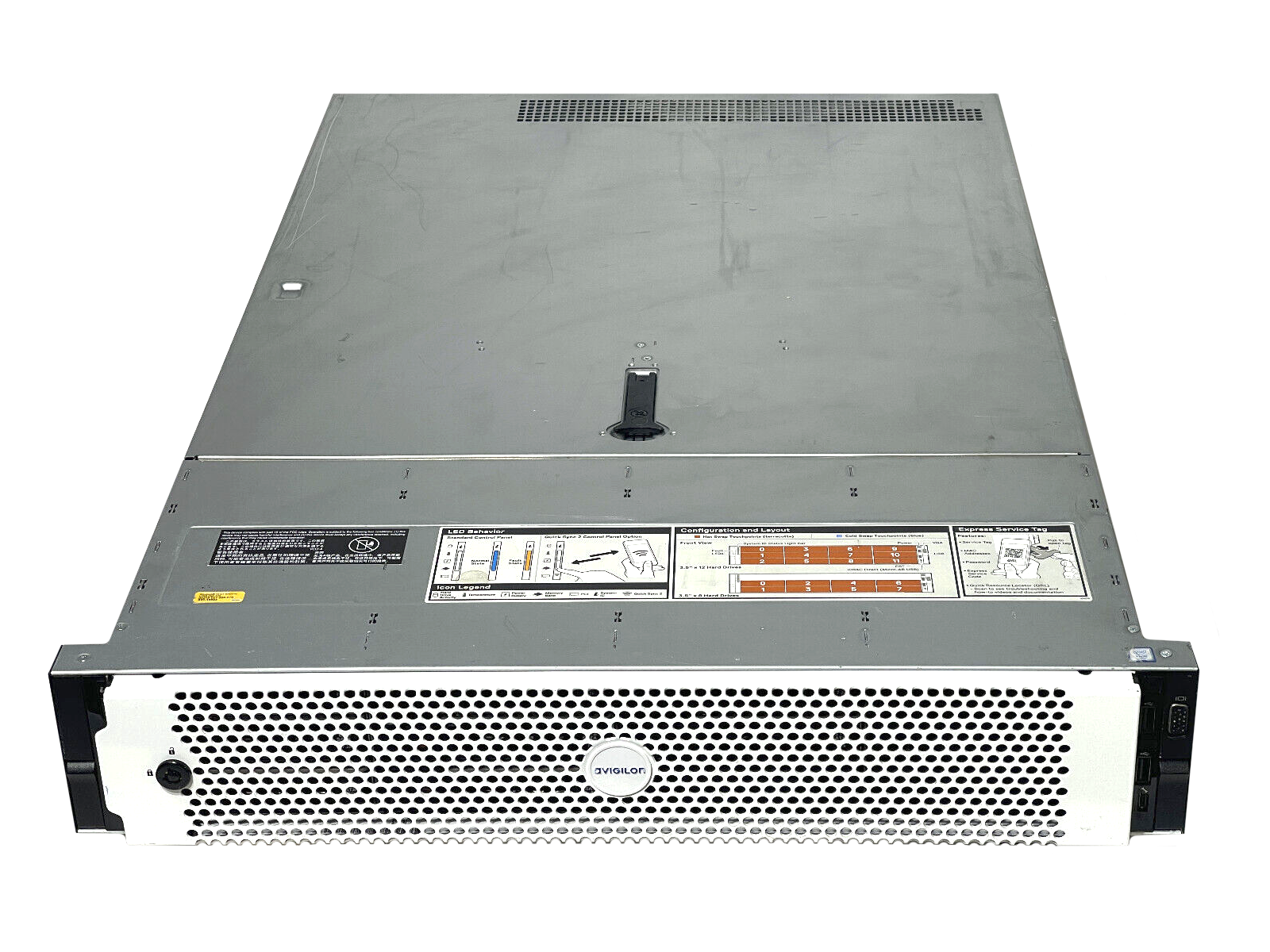

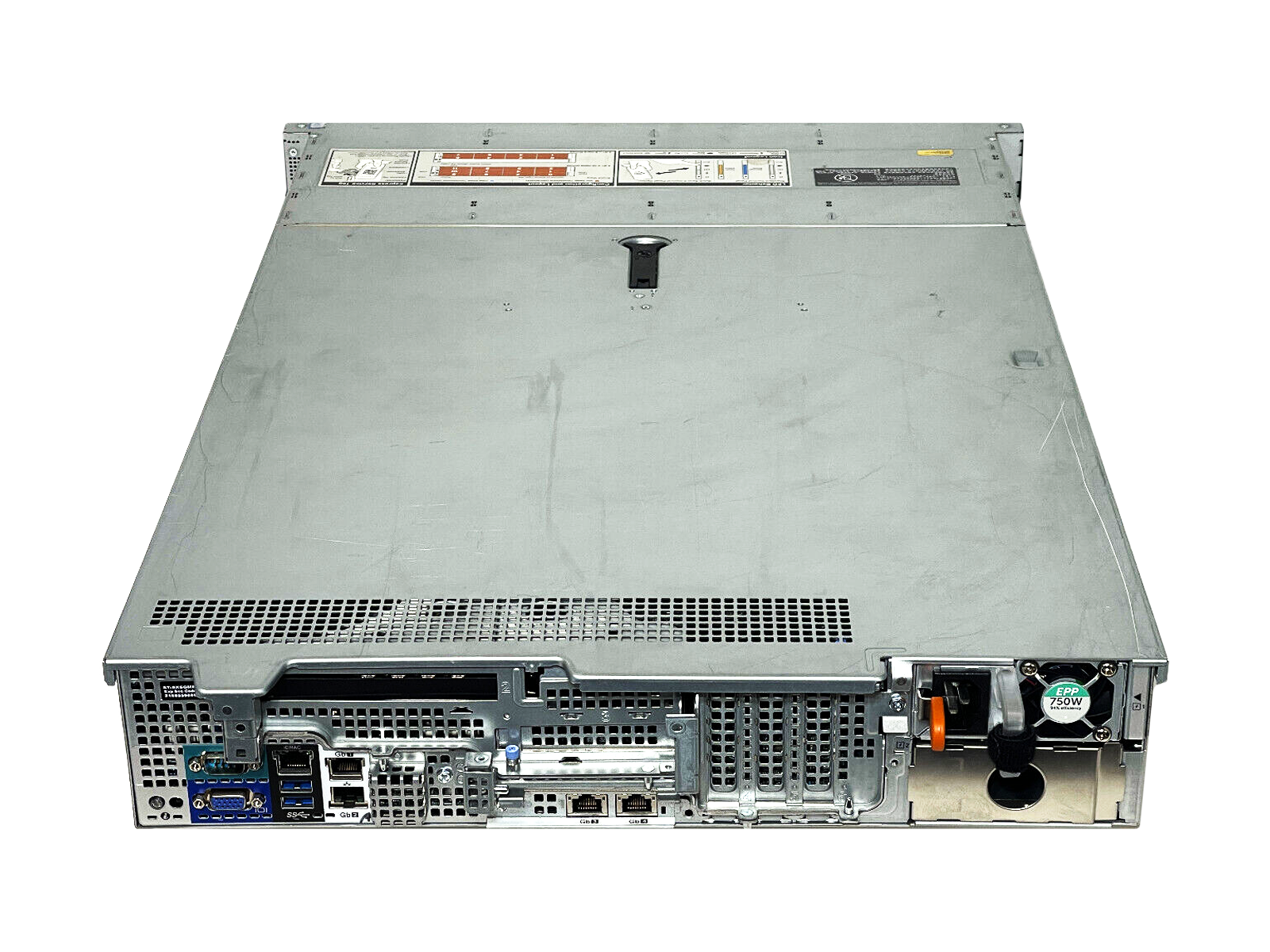

Avigilon HD NVR Series 4X Surveillance Network Video Recorder
OS and Software
Microsoft Windows Server 2016 LTSB with 16 core license
Avigilon Server, Avigilon Control Center, and Avigilon Camera Setup software are installed

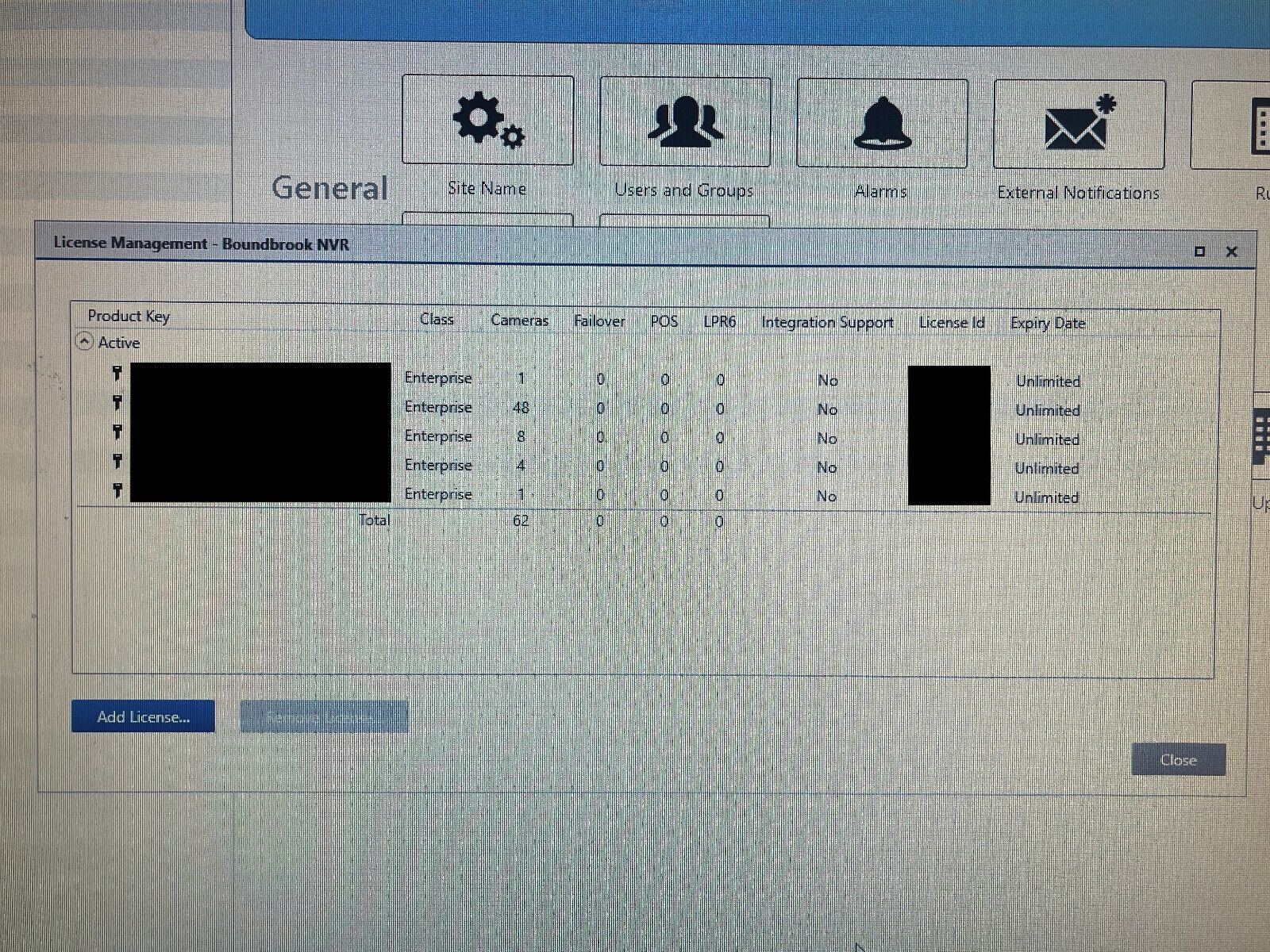

Enterprise license keys supporting 62 cameras are installed

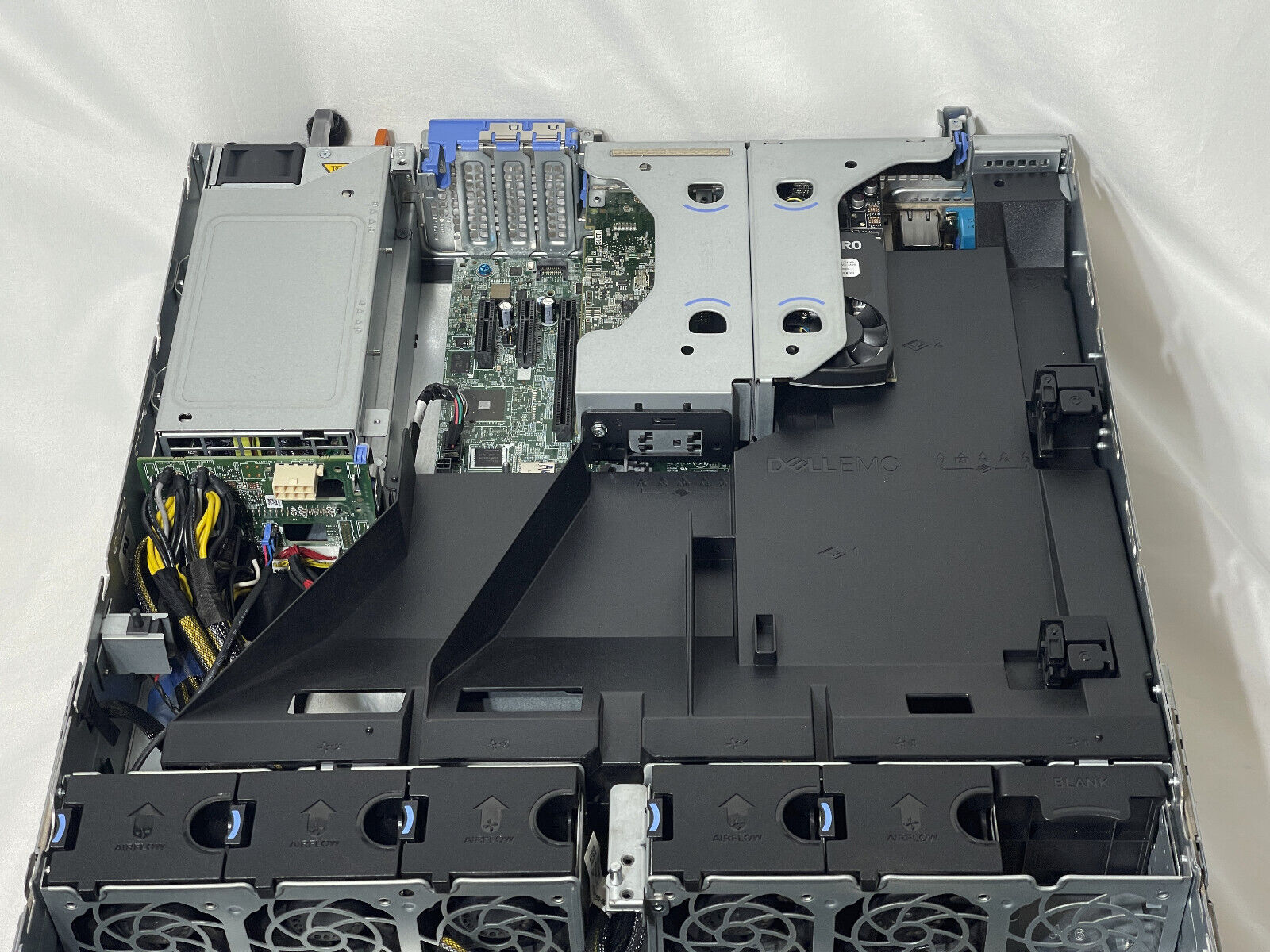

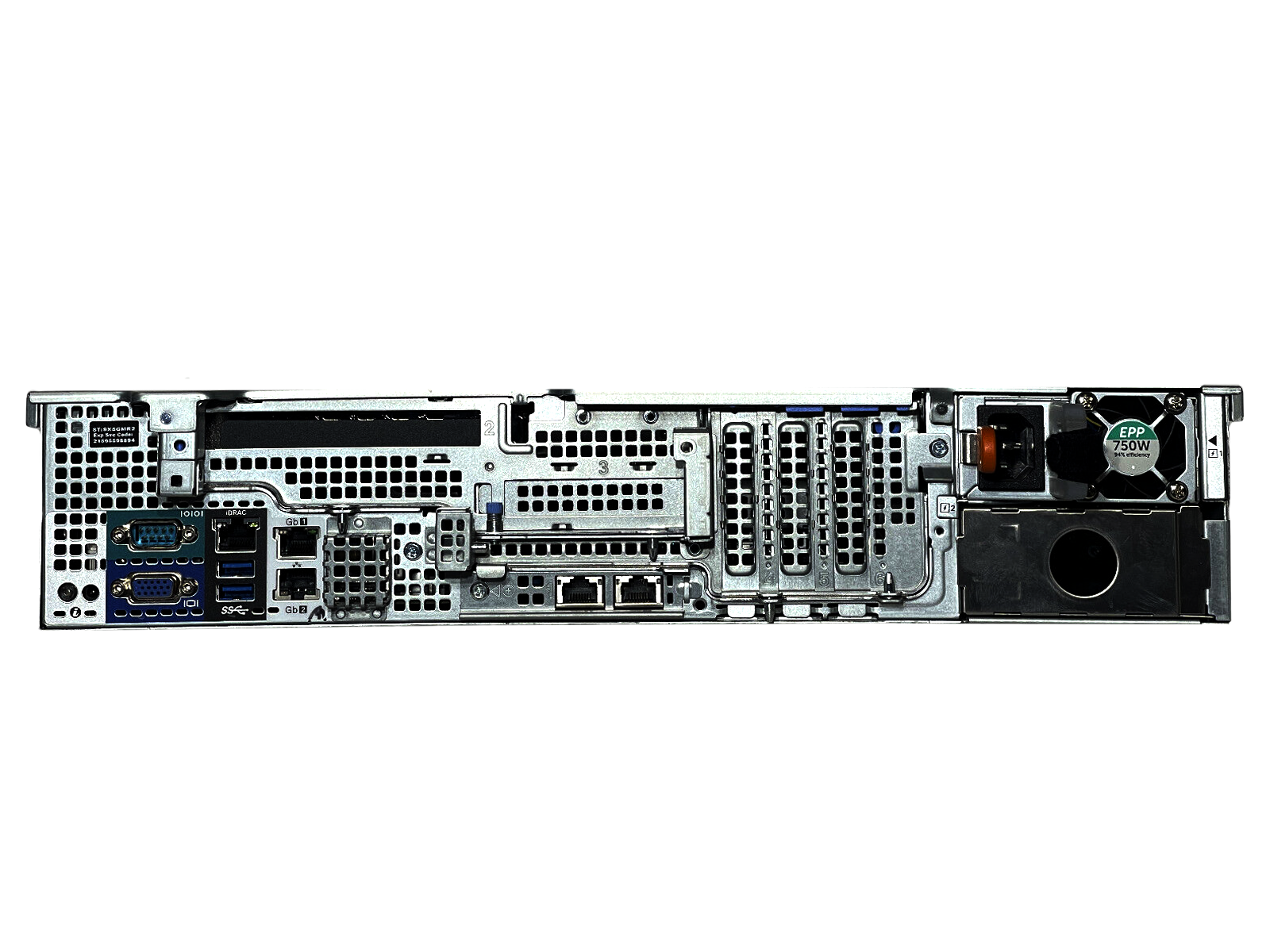

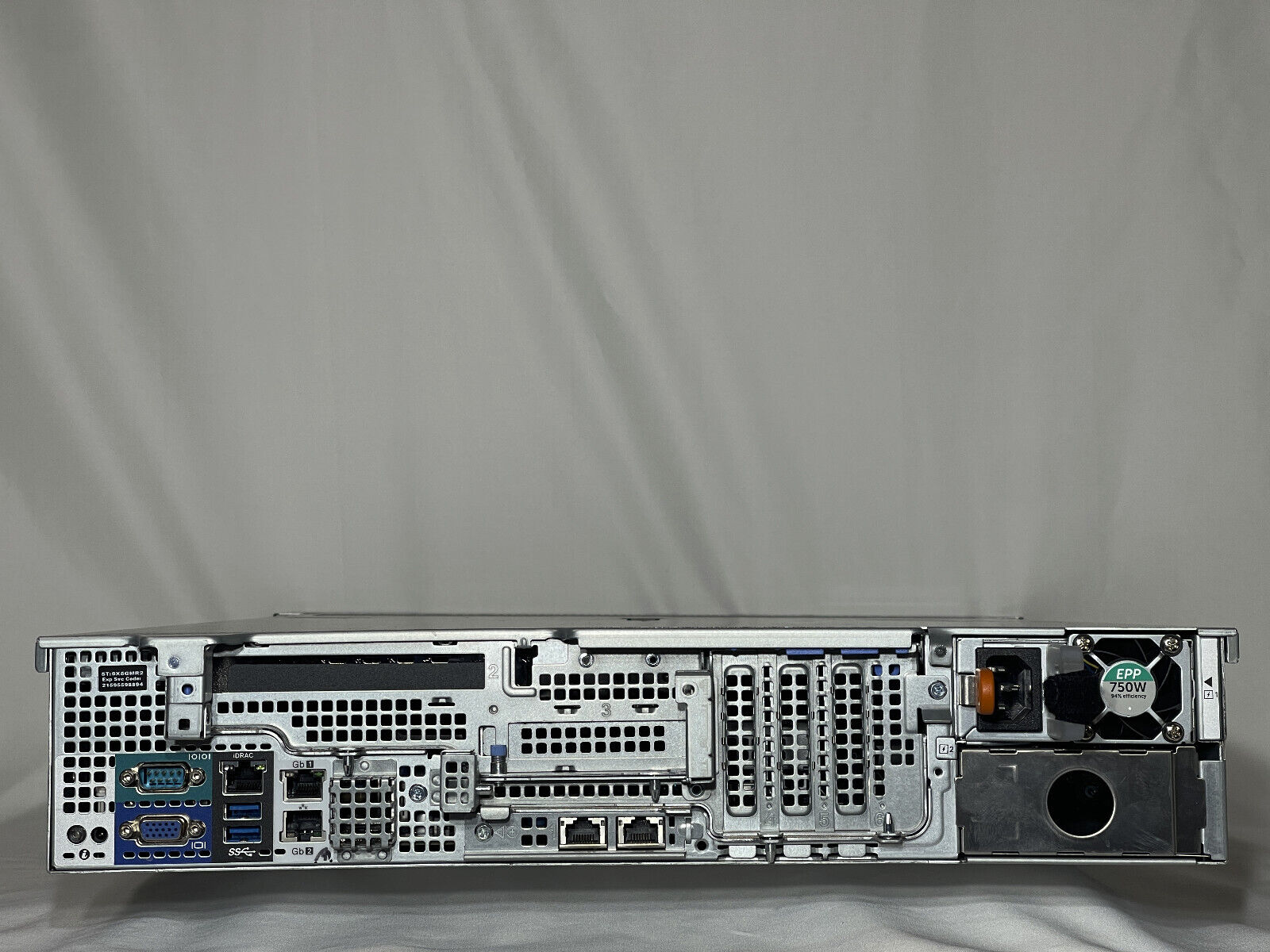

Chassis
Based on Dell PowerEdge R540 LFF server
2U Chassis

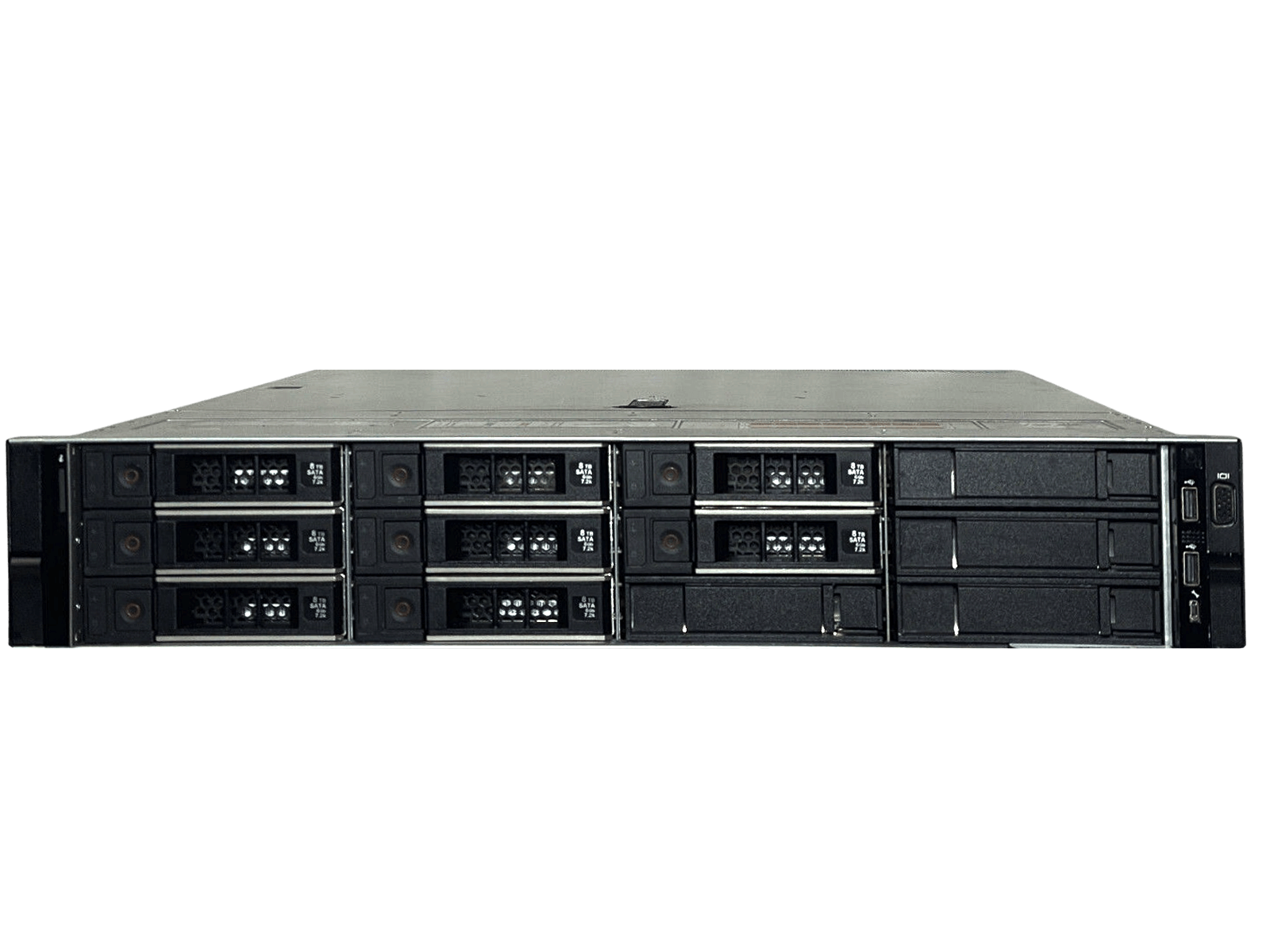

12 bay front backplane - up to 12x 3.5" SFF SAS/SATA drives
Avigilon bezel is included
Sliding Rail Kit is included
1x Hot-Swappable 750W 80 Plus Platinum PSU
Power cords - free if requested - please specify type and length desired
CPU
Intel(R) Xeon(R) Bronze 3106 CPU 8 cores @ 1.70GHz
RAM
16GB (2x8GB) DDR4 Registered ECC memory
HDD/SSD/RAID/Optical
Dell BOSS-S1 adapter with 2x 120GB M.2 SSDs in RAID 1, used as Windows boot drive

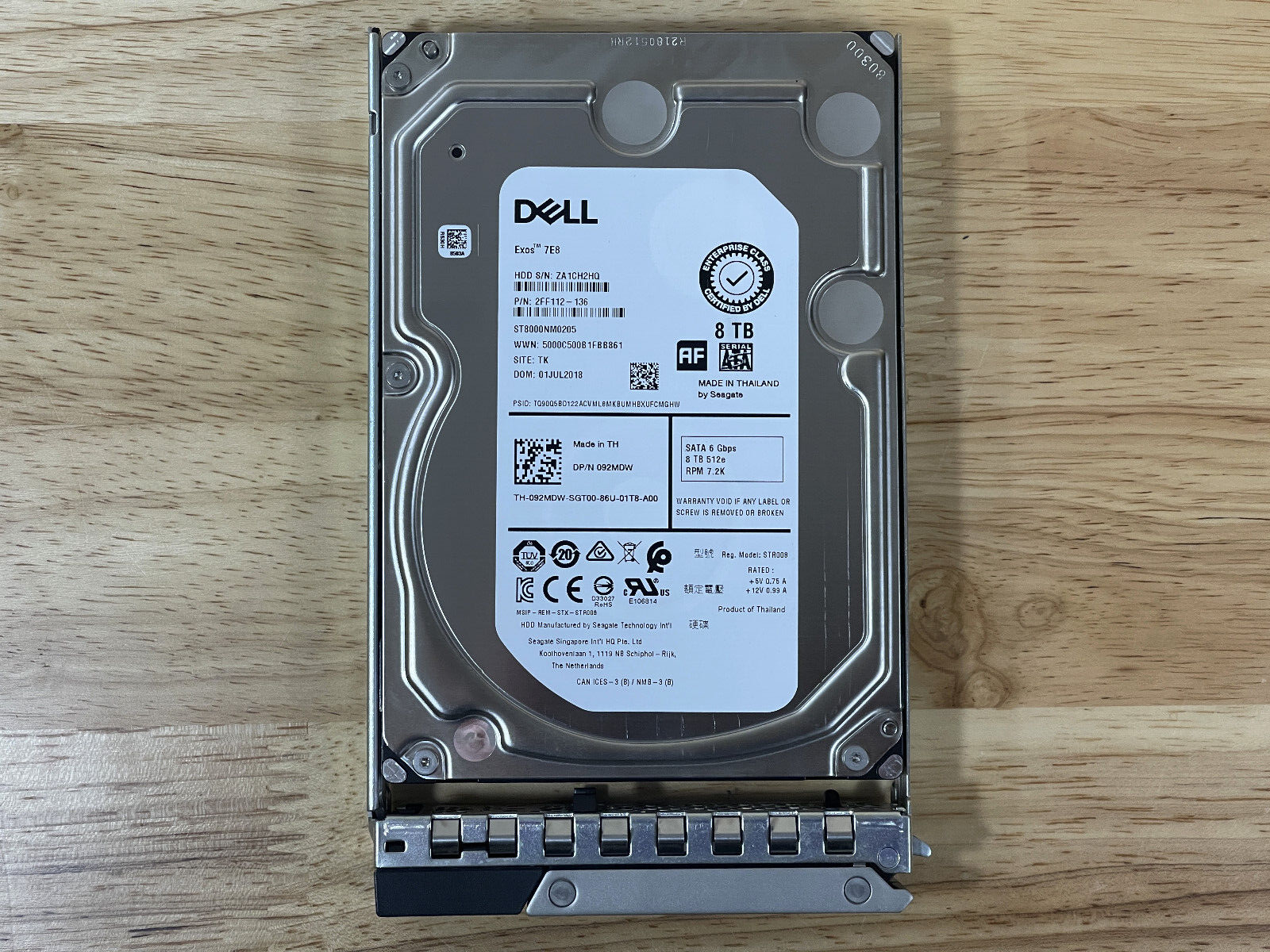

8x 8TB SATA HDDs in RAID 6 (64TB raw, 48TB effective), used as Avigilon Server storage
PERC H730P RAID Controller with 2GB Battery-Backed Write Cache
iDRAC
iDRAC9 Enterprise
NIC
2 port Broadcom 5720 Gigabit Ethernet LOM
2 port Broadcom 5720 Gigabit Ethernet OCP daughter card
GPU

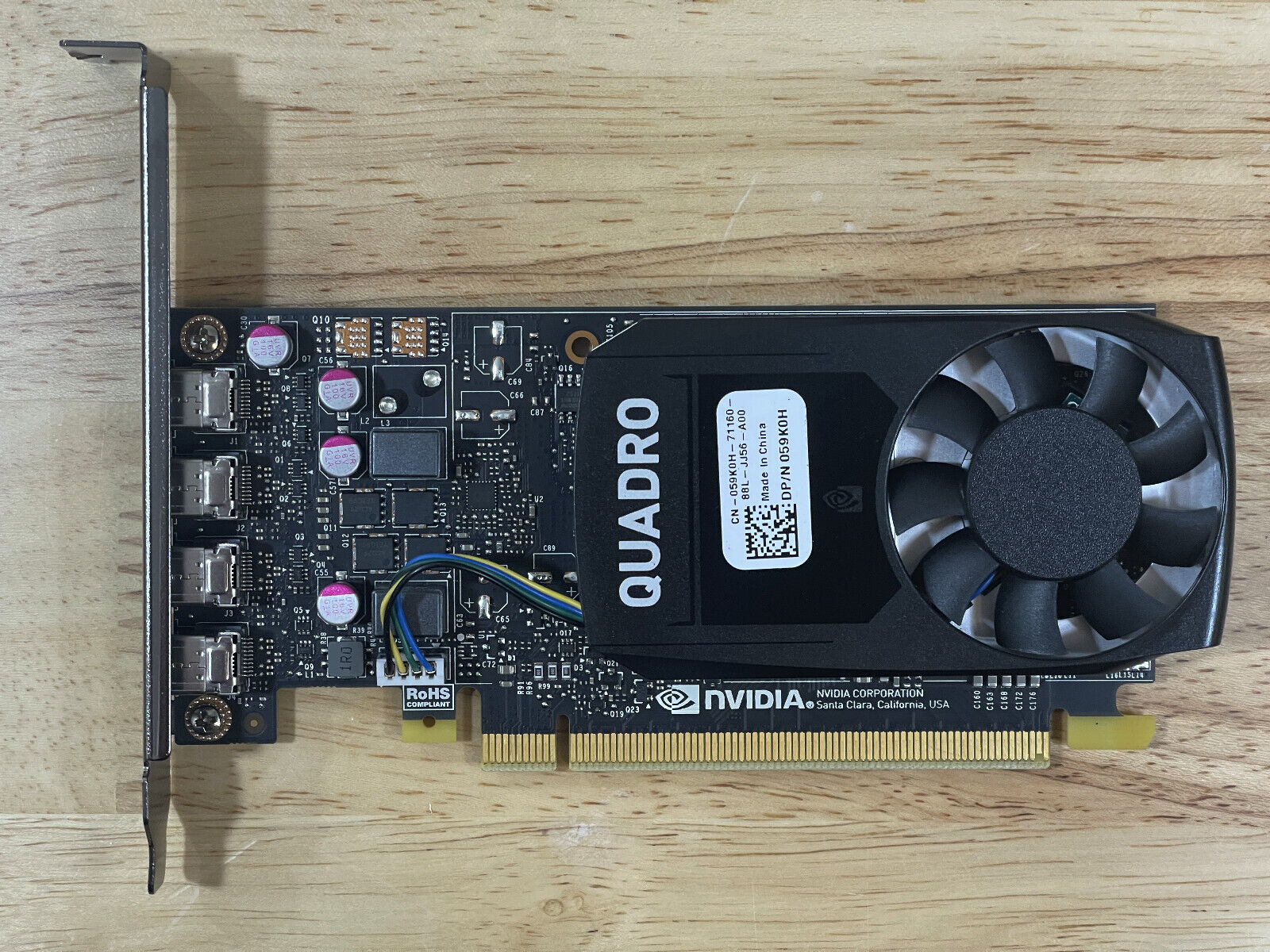

NVidia Quadro P1000 GPU
Additional info
Part numbers may be different due to manufacturer revisions, for reference only
