Description

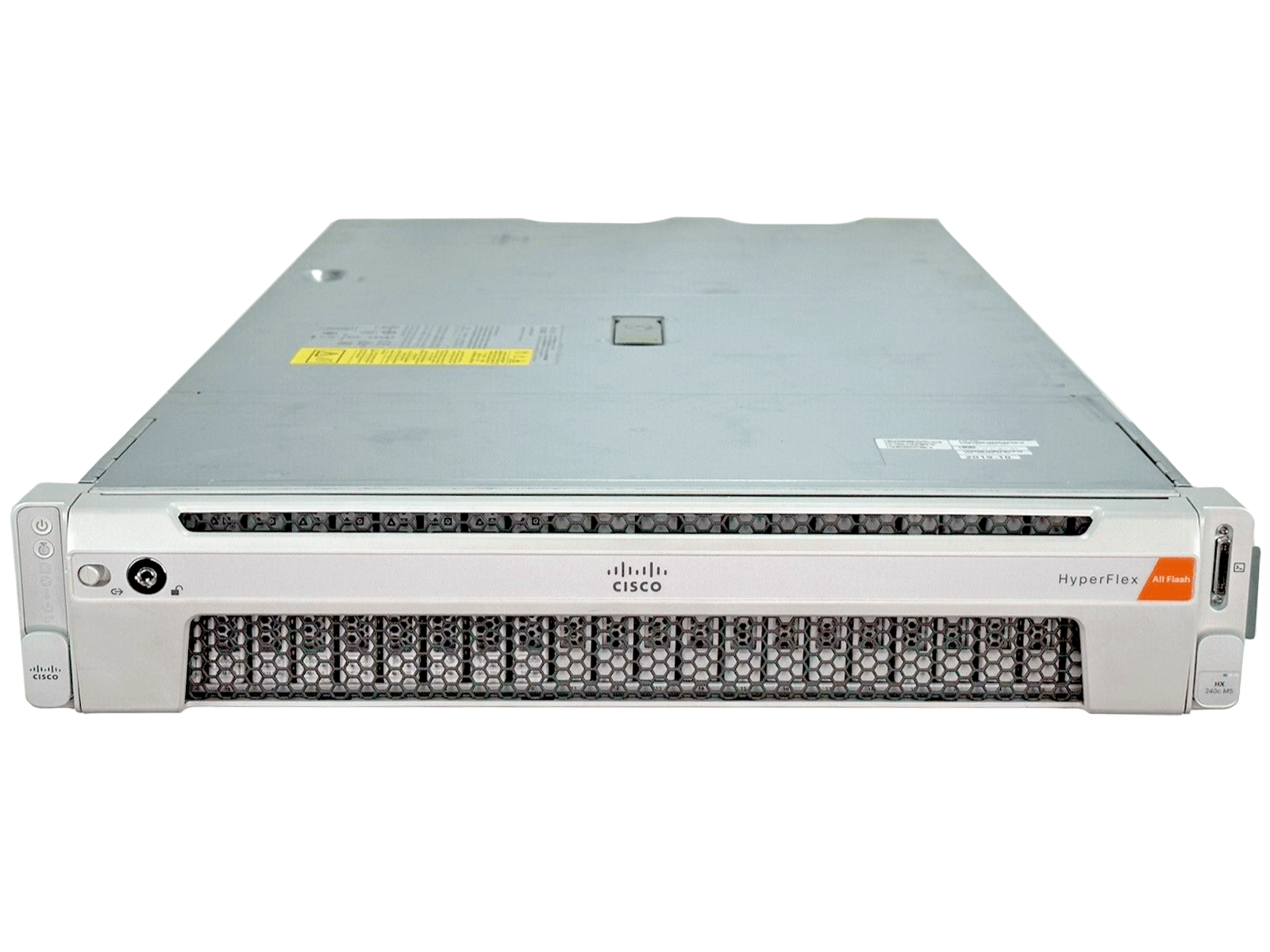

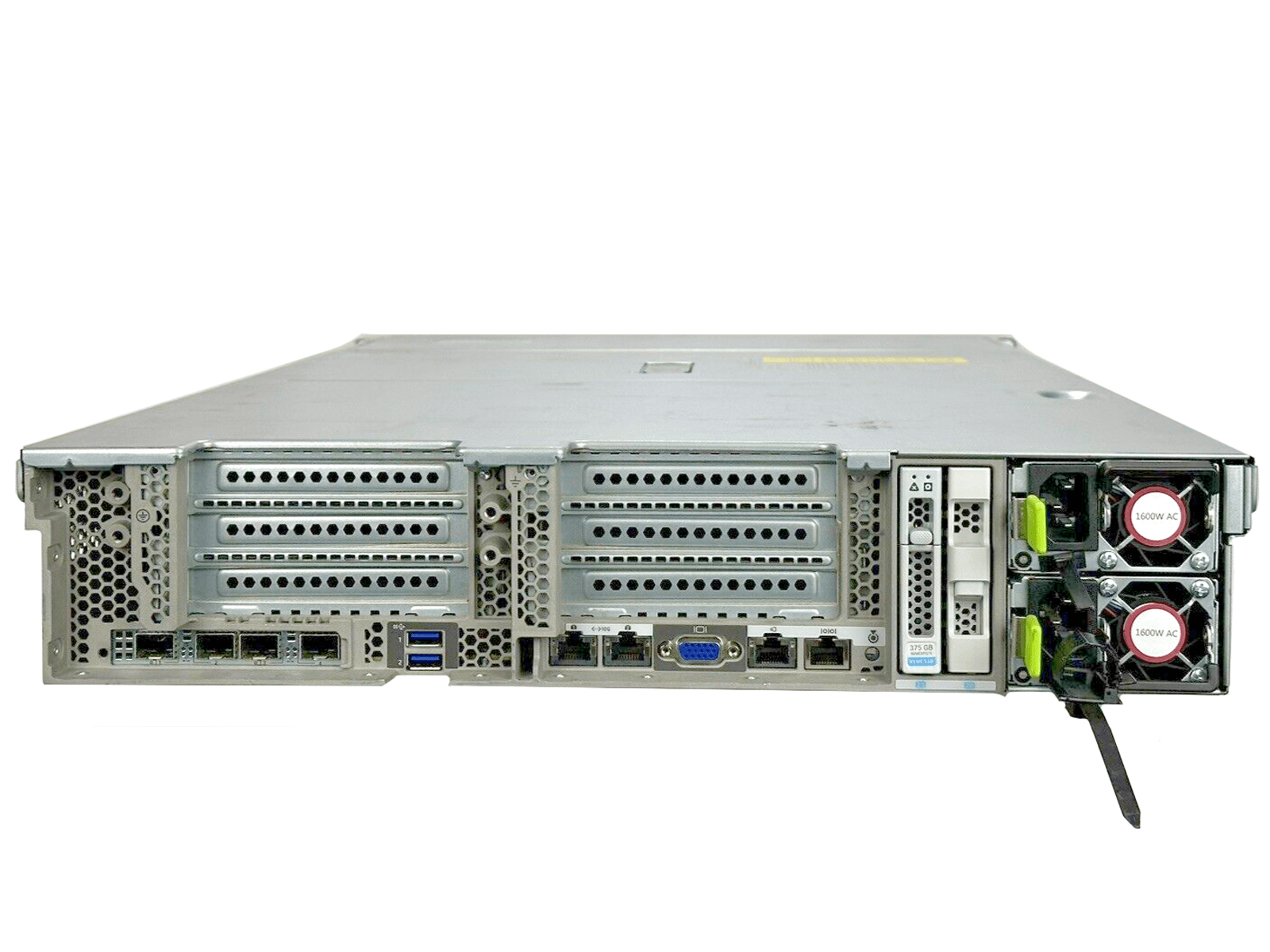

This listing is for 1 (one) Cisco UCS C240 M5 UCSC-C240-M5SX Server

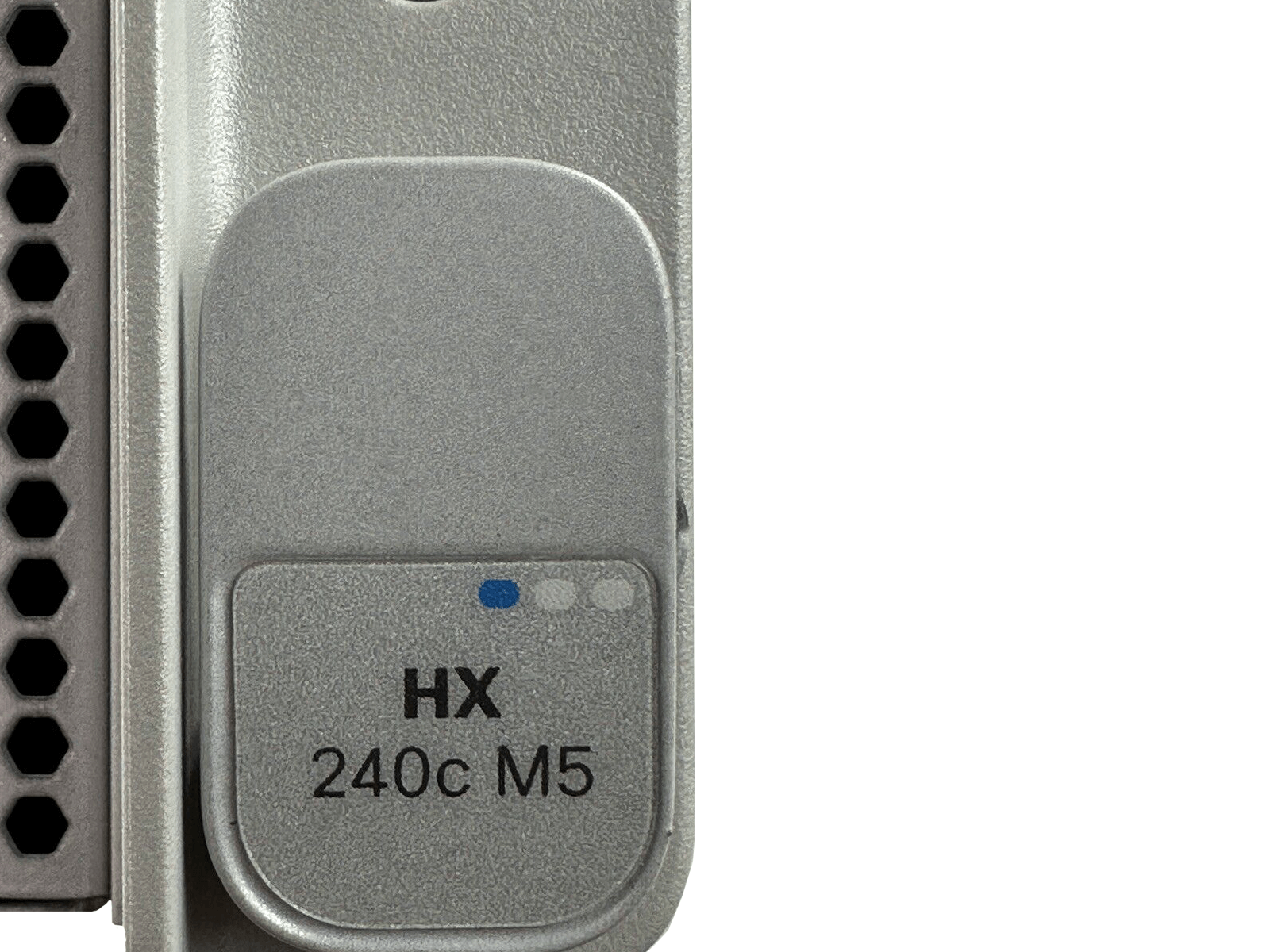

Originally sold as HyperFlex All Flash (AF) HXAF240C-M5SX node for vSAN, can be used as regular server
No hardware RAID functionality in current config, has SAS HBA card
Custom configurations are available, please contact us for a quote
Current config:

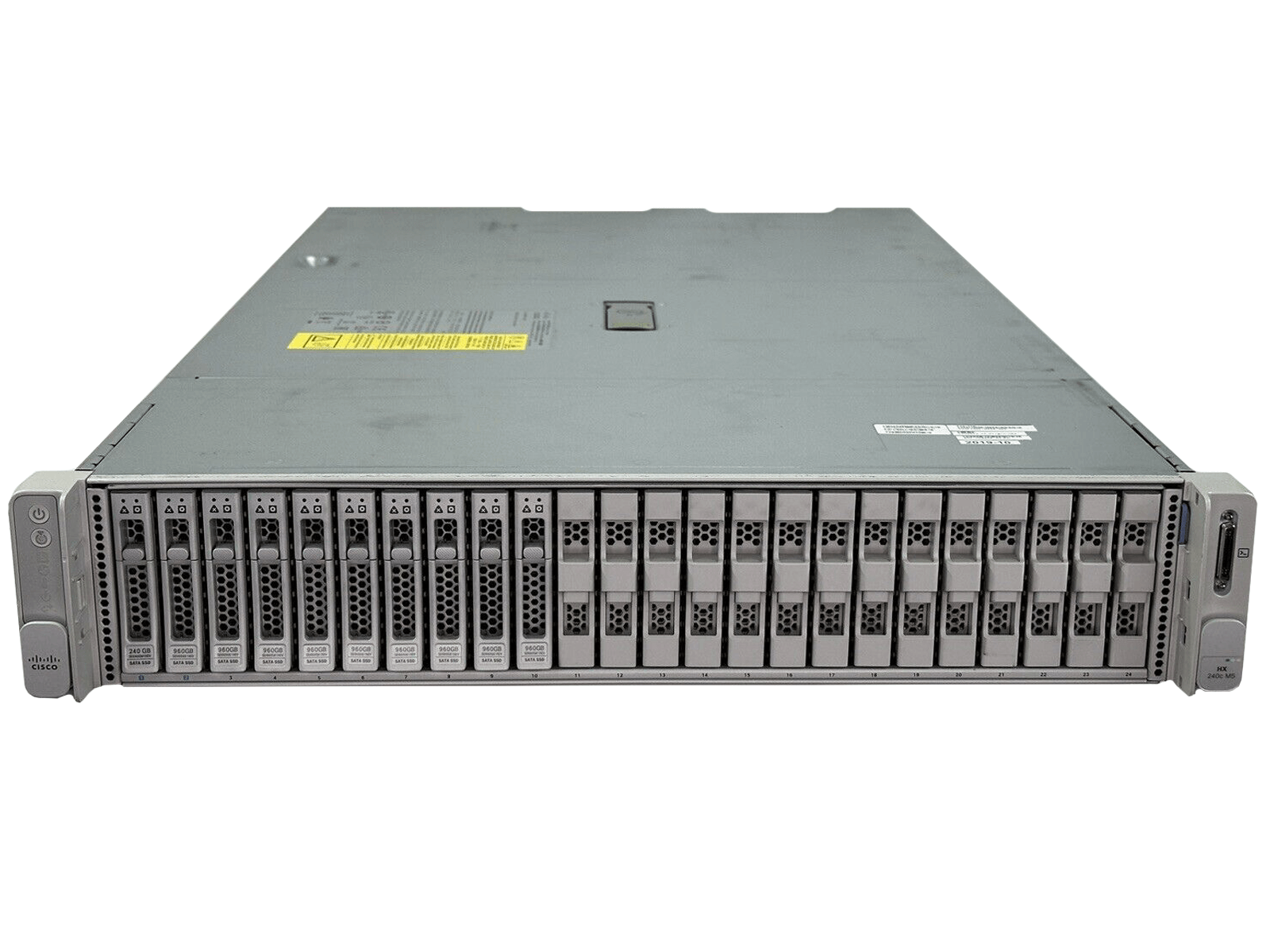

24+2 Bay SFF Chassis:
- 24x SFF SATA/SAS bays in front
- 2x SFF bays in rear NVMe U.2
LOM:
-- 2x 1/10GbE RJ45 ports
-- 1x 1GbE RJ45 port

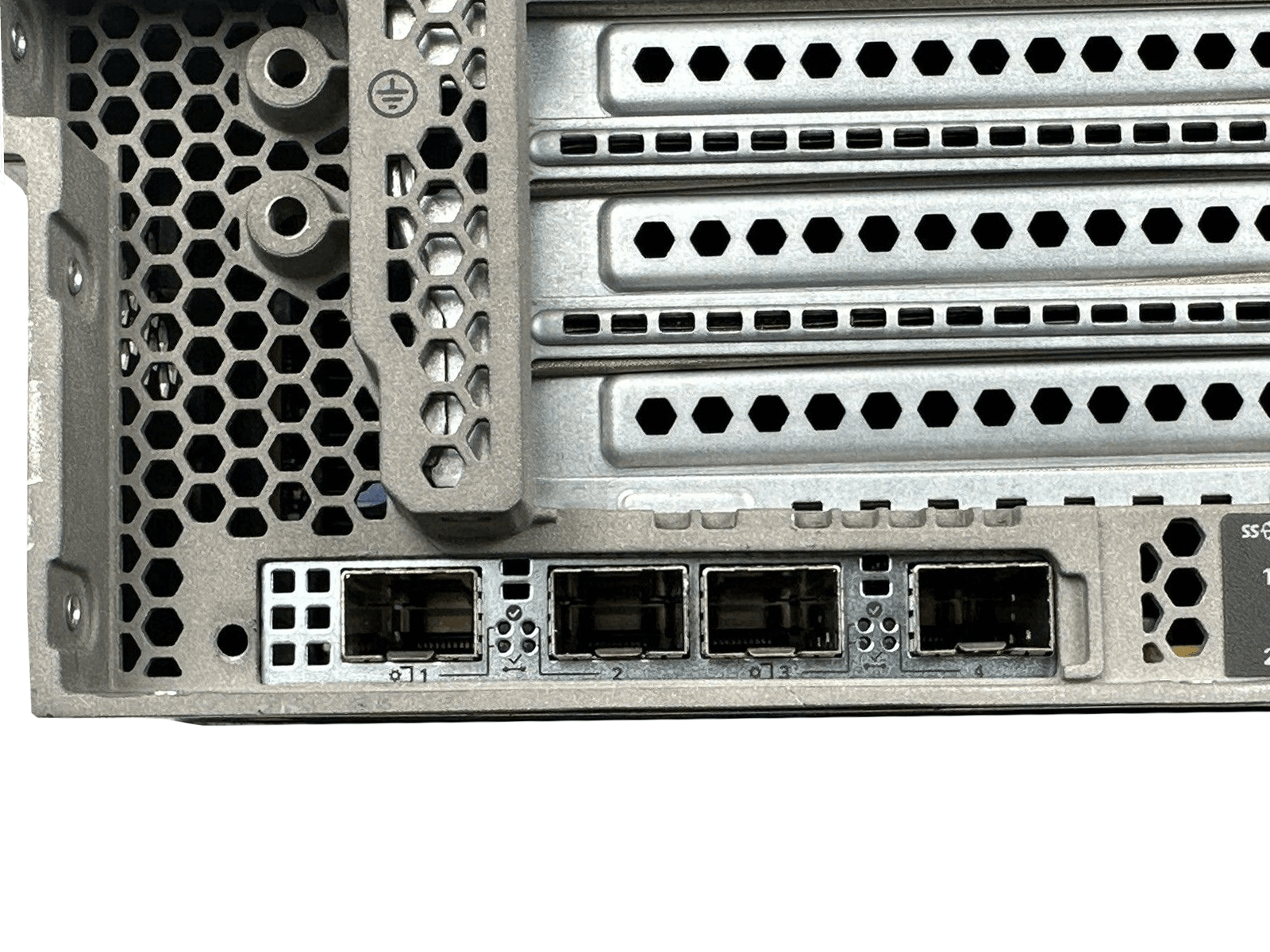

MLOM: Cisco UCS VIC 1457 Quad Port 10/25G SFP28 mLOM VIC 1457
Dual Intel Xeon Gold 6150 18 Core / 36 Threads 2.7 - 3.7GHz
- Additional CPU configurations are available, please inquire
768GB RAM 24x 32GB DDR4 PC4-2666V
- Additional RAM configurations are available, please inquire
UCSC-SAS-M5HD PCI-e SAS HBA - this card does not have RAID functionality
1x 32GB MicroSD Card in Riser1

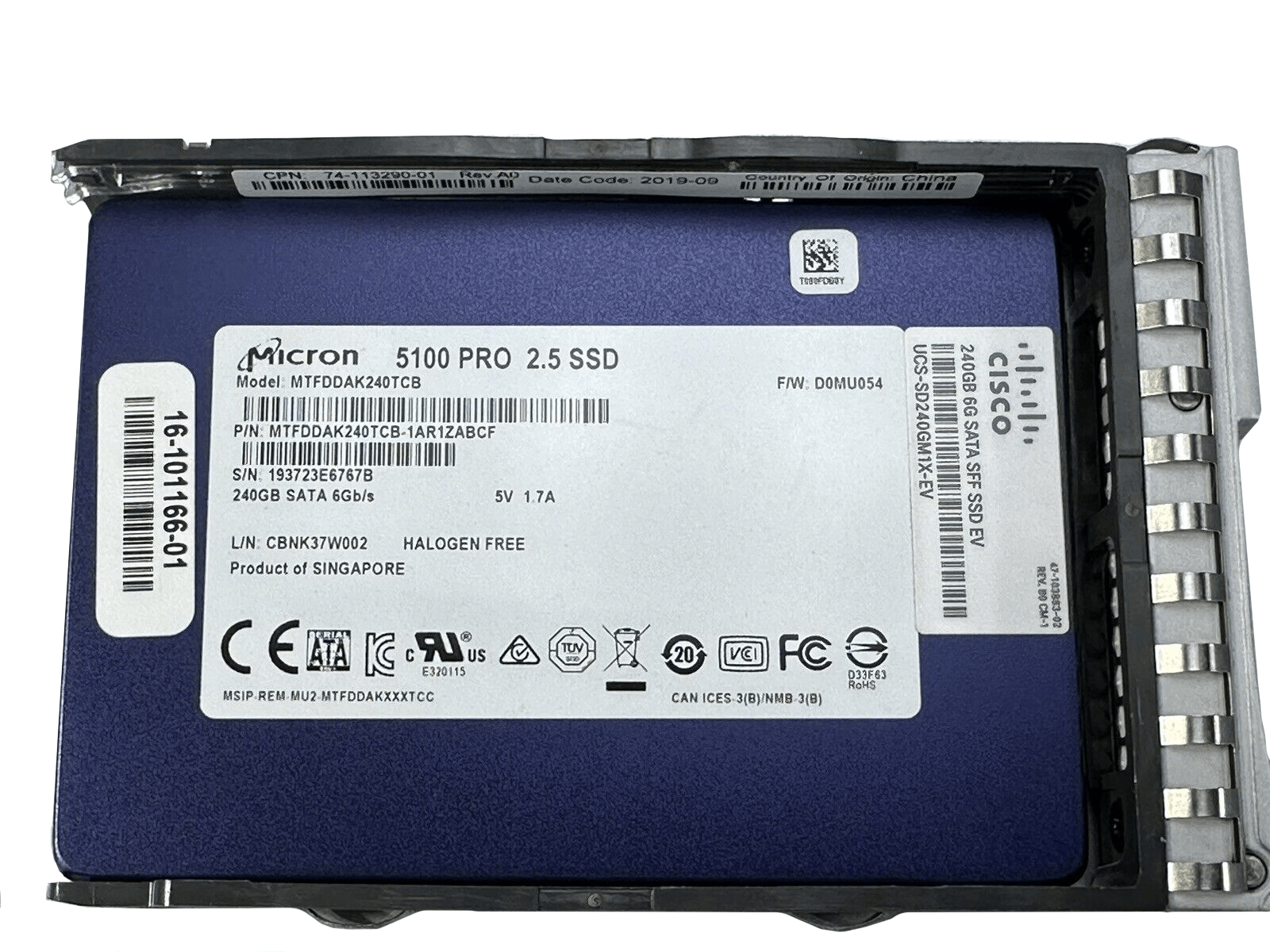

1x 240GB SATA SSD

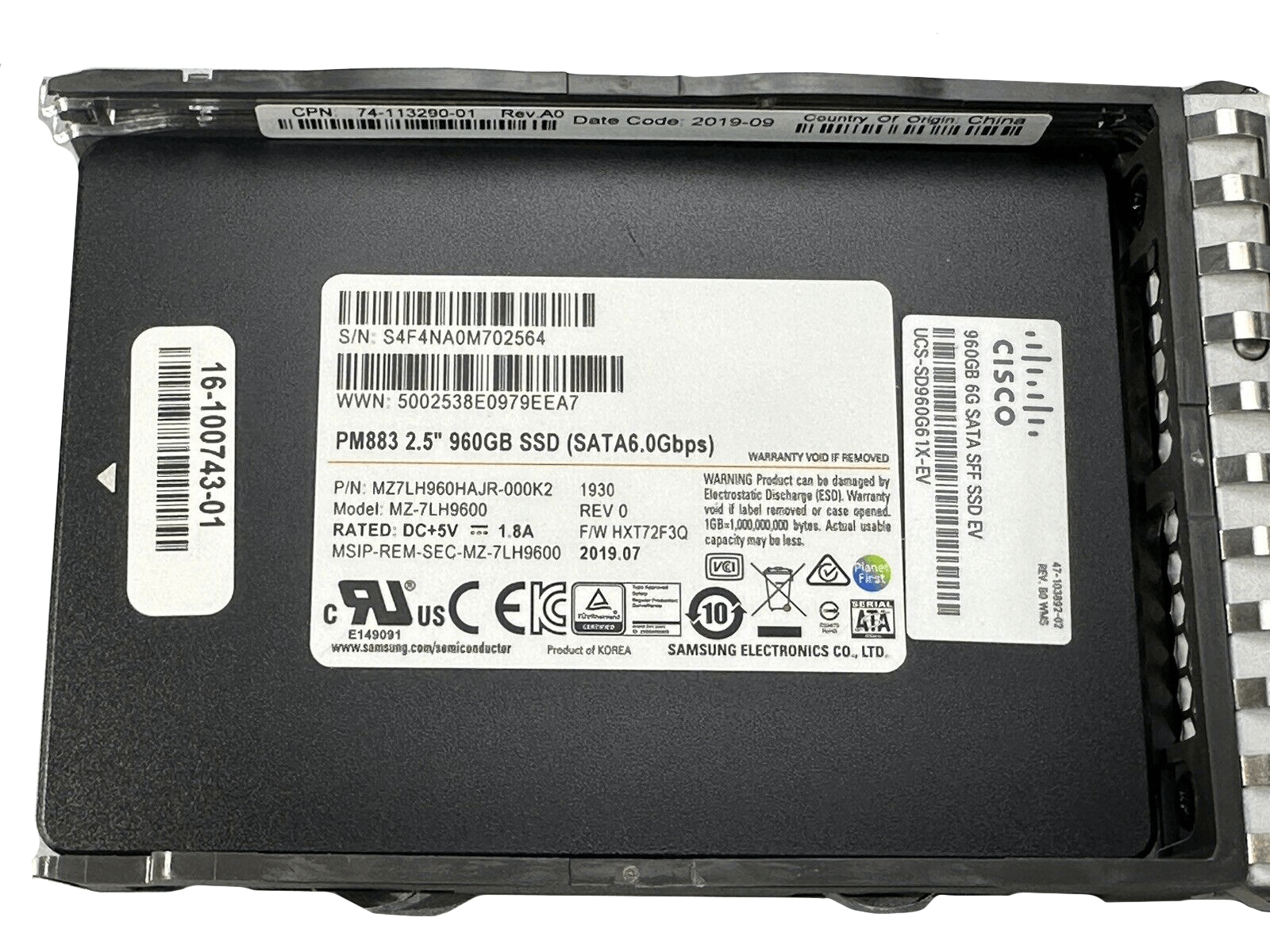

9x 960GB SATA SSD

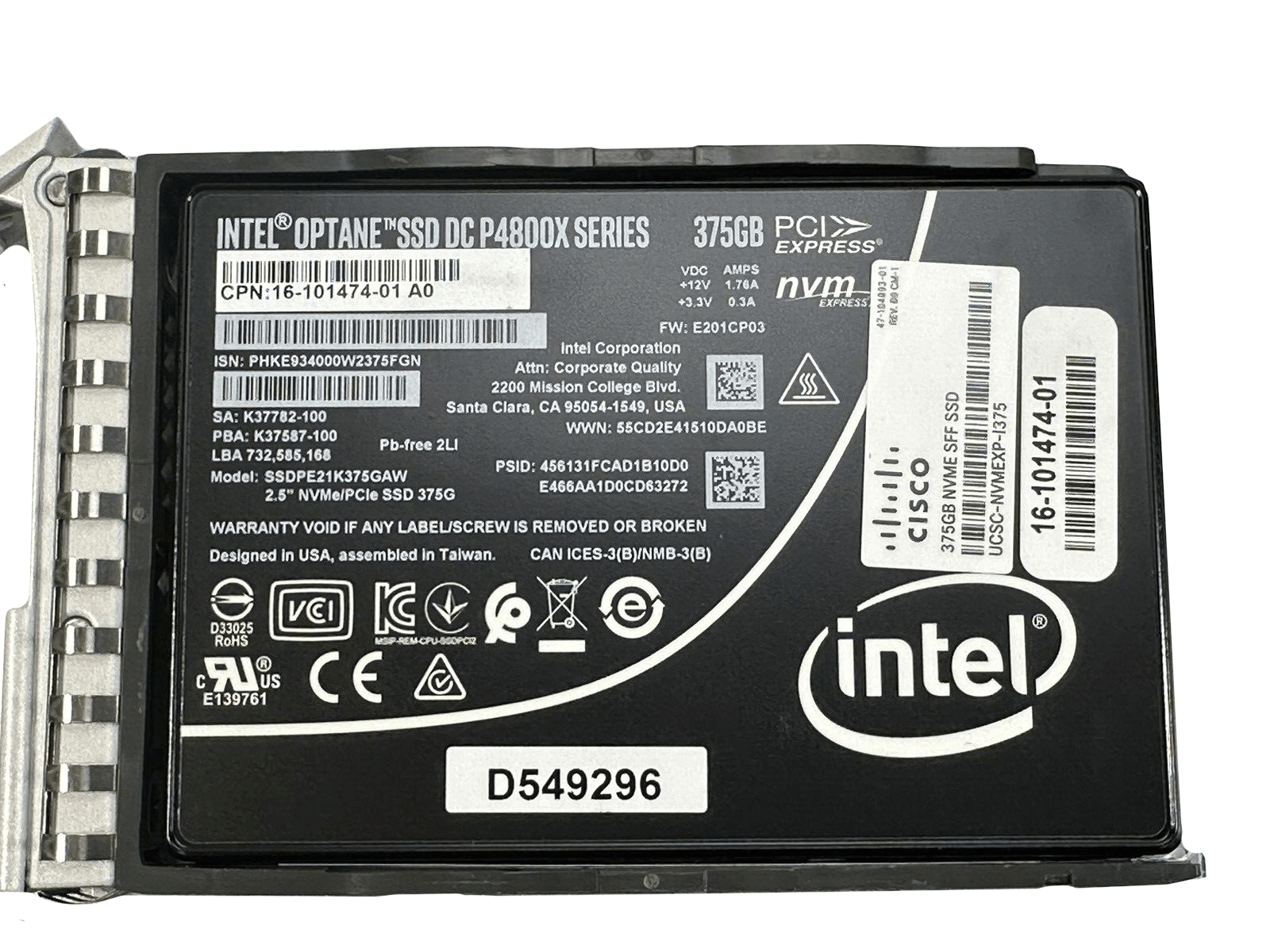

1x 375GB NVMe SDD Intel Optane P4800x
1x 240GB M.2 SSD
Additional hard drive configurations are available, please inquire
6x Hot swap fans
2x 1600W Platinum AC power supplies USCS-PSU1-1600W
Please NOTE: These Power Supplies REQUIRE 200V+ to initialize
PCI-e risers
-- Riser1 UCSC-PCI-1-C240M5
- Includes 3 PCIe slots (x8, x16, x8)
- Slots 1 and 2 controlled with CPU1
- Slot 3 controlled with CPU2
- Slot 1: x16 Physical x8 Electrical
- Slot 2: x16
- Slot 3: x8
- MicroSD Slot
-- Riser 2 UCSC-PCI-2B-240M5
- Option 2B
- All slots controlled with CPU2
- Includes 3 PCIe slots (x8, x16, x8)
- 1 NVMe connector (controls two rear SFF NVMe drives) PCIE-REAR
- supports GPU
- Slot 4: x16 Physical x8 Electrical
- Slot 5: x16
- Slot 6: x8
Part numbers may differ due to manufacturer revisions or supplier changes.
Originally sold as HyperFlex All Flash (AF) HXAF240C-M5SX node for vSAN, can be used as regular server
No hardware RAID functionality in current config, has SAS HBA card
Custom configurations are available, please contact us for a quote
Current config:
24+2 Bay SFF Chassis:
- 24x SFF SATA/SAS bays in front
- 2x SFF bays in rear NVMe U.2
LOM:
-- 2x 1/10GbE RJ45 ports
-- 1x 1GbE RJ45 port
MLOM: Cisco UCS VIC 1457 Quad Port 10/25G SFP28 mLOM VIC 1457
Dual Intel Xeon Gold 6150 18 Core / 36 Threads 2.7 - 3.7GHz
- Additional CPU configurations are available, please inquire
768GB RAM 24x 32GB DDR4 PC4-2666V
- Additional RAM configurations are available, please inquire
UCSC-SAS-M5HD PCI-e SAS HBA - this card does not have RAID functionality
1x 32GB MicroSD Card in Riser1
1x 240GB SATA SSD
9x 960GB SATA SSD
1x 375GB NVMe SDD Intel Optane P4800x
1x 240GB M.2 SSD
Additional hard drive configurations are available, please inquire
6x Hot swap fans
2x 1600W Platinum AC power supplies USCS-PSU1-1600W
Please NOTE: These Power Supplies REQUIRE 200V+ to initialize
PCI-e risers
-- Riser1 UCSC-PCI-1-C240M5
- Includes 3 PCIe slots (x8, x16, x8)
- Slots 1 and 2 controlled with CPU1
- Slot 3 controlled with CPU2
- Slot 1: x16 Physical x8 Electrical
- Slot 2: x16
- Slot 3: x8
- MicroSD Slot
-- Riser 2 UCSC-PCI-2B-240M5
- Option 2B
- All slots controlled with CPU2
- Includes 3 PCIe slots (x8, x16, x8)
- 1 NVMe connector (controls two rear SFF NVMe drives) PCIE-REAR
- supports GPU
- Slot 4: x16 Physical x8 Electrical
- Slot 5: x16
- Slot 6: x8
Part numbers may differ due to manufacturer revisions or supplier changes.
