Description

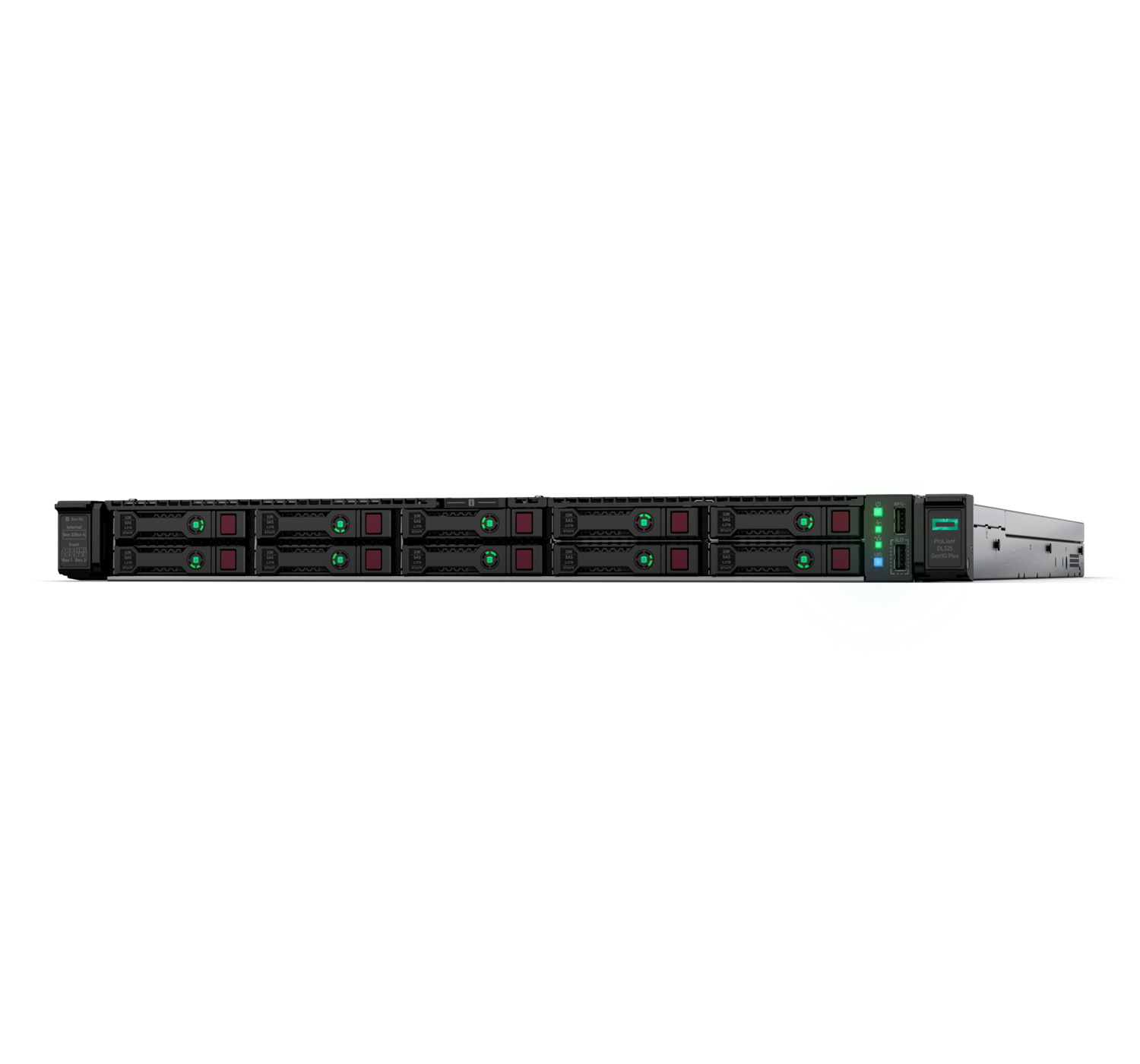

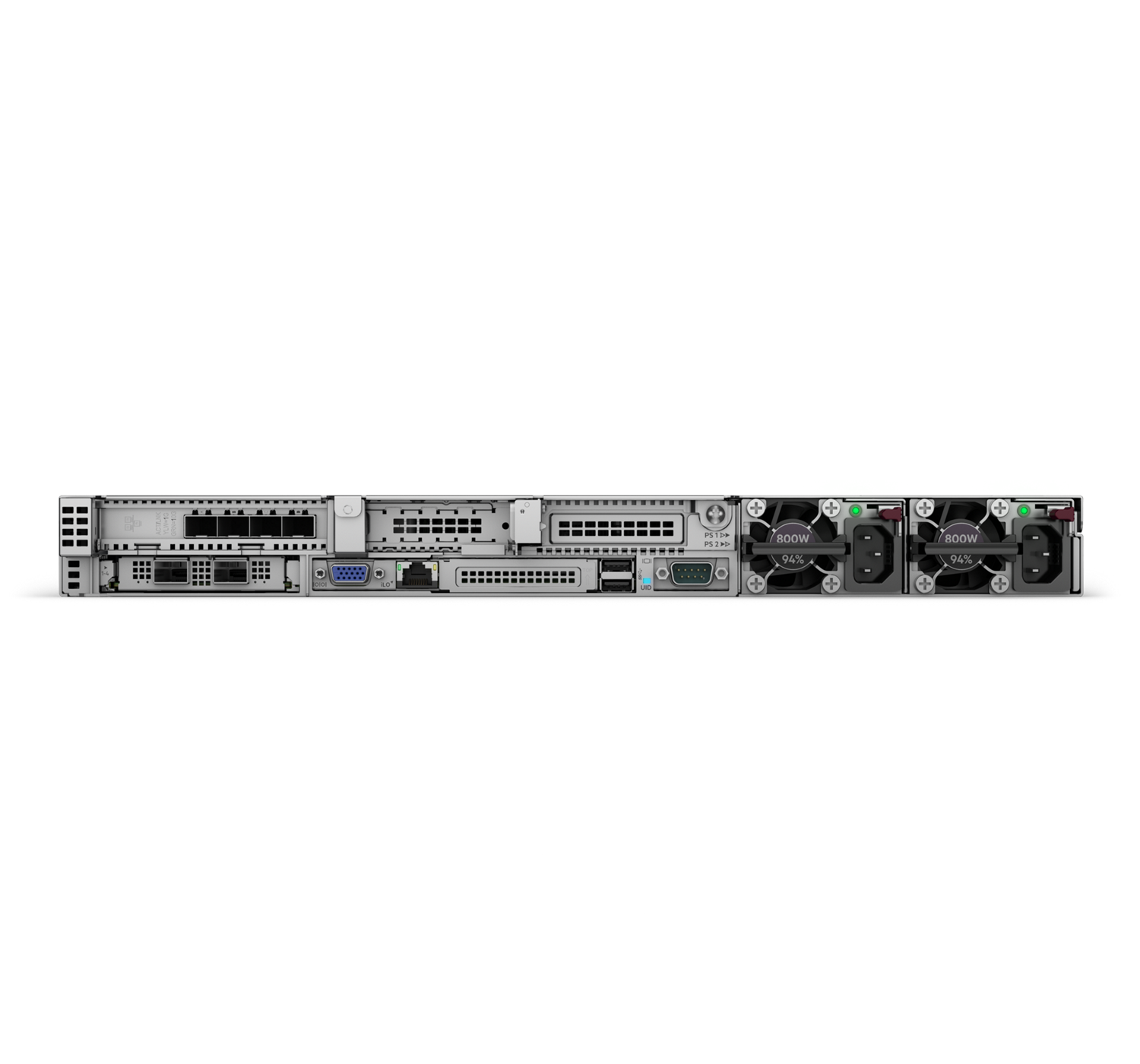

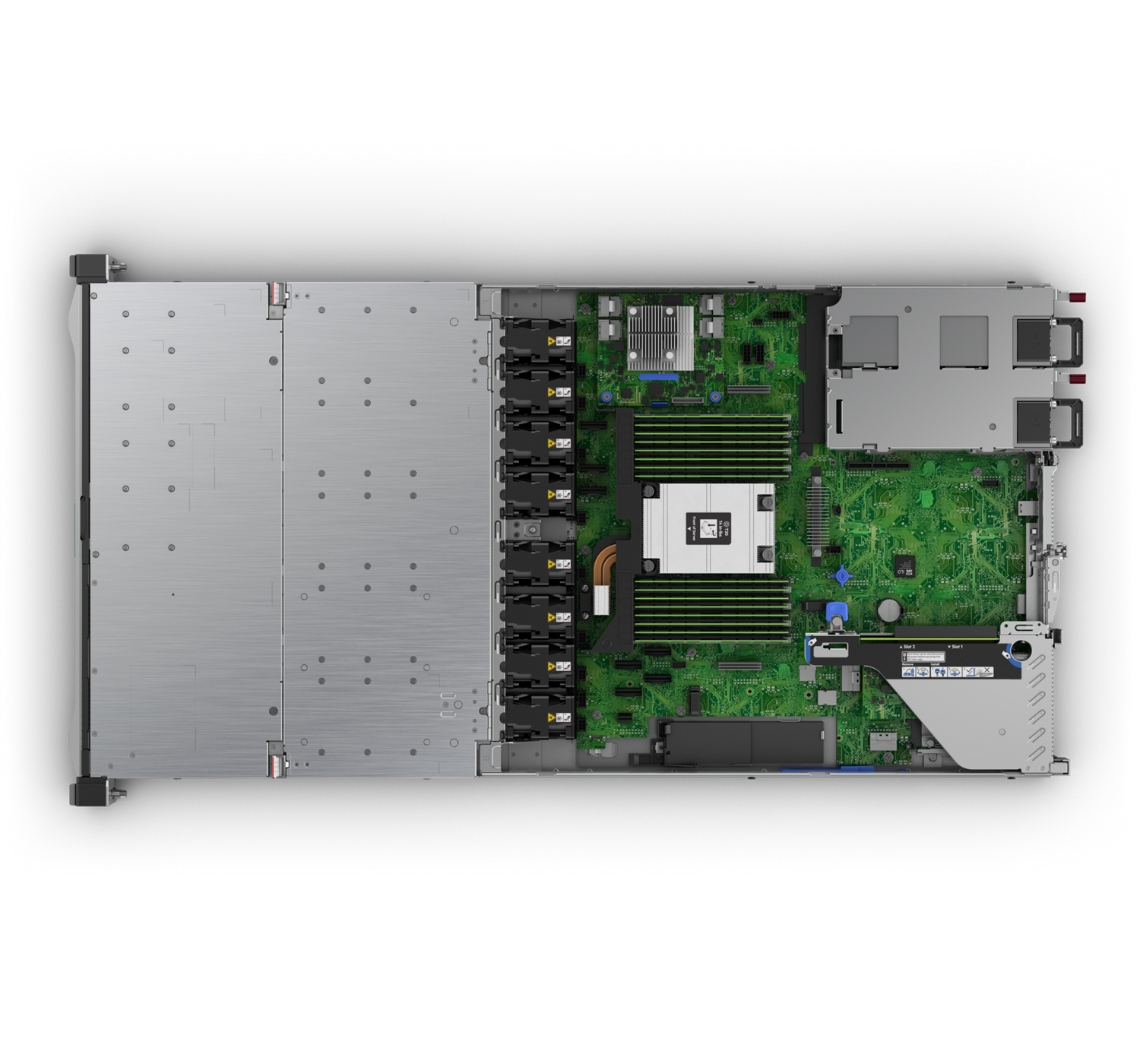

This listing is for one new HPE ProLiant DL325 Gen10 Plus 16 bay SFF (8+8) server
This is a custom build based on BTO Part number P18605-B21
Please review detailed configuration notes below
Custom/BTO/CTO config is available, please inquire
Warranty: 3-year parts, 3-year labor, 3-year onsite support with next business day response from HPE
Chassis:
1U
1x CPU platform
16 bay SFF (2.5")
8x front bays are SAS/SATA, expandable to 10x front bays with option 2x SFF kit SATA/SAS/NVMe (U.2 or U.3 bays)
8x pop-up mid bays NVMe U.3, expandable to 10x mid bays with optional 2x SFF kit (NVMe U.2 or U.3)
CPU:
AMD EPYC MilanX 7773x 2.2GHz 64 core 768MB L3 280W (additional CPU config is available, up to 64 Core)
RAM:
1024GB (16x 64GB) DDR4 Registered ECC 3200MHz Module (additional RAM config is available)
16x RAM slots on motherboard
Up to 2TB of RAM per server
RAID:
Smart Array P408i-a 12Gb/s SAS/SATA with 2GB Cache and Smart Battery (alternative RAID adapters are available)
HDD/SSD:
8x 6.4TB HPE SAS 12Gb/s Mixed Use SSDs are installed
Up 20x SFF drives in this chassis configuration, see above or inquire if this is needed
NIC:
Quad port 25GbE or 10GbE SFP28 in OCP3 slot (additional NICs are available)
Fans:
8x Maximum Performance fans installed
PCI-e slots:
2x PCI-e 4.0 x16 slots (1x FH, 1x LP)
Additional PCI-e slots/risers are available, please inquire
Remote management / iLO5:
Standard
Advanced license is available, please inquire
PSU:
2x 800W FlexSlot Power supply (second PSU is available)
Rail kit:
Included
Warranty:
3-year parts from HPE
3-year labor from HPE
3-year onsite support with next business day response from HPE
Please contact us with any questions
Thank you
