Description

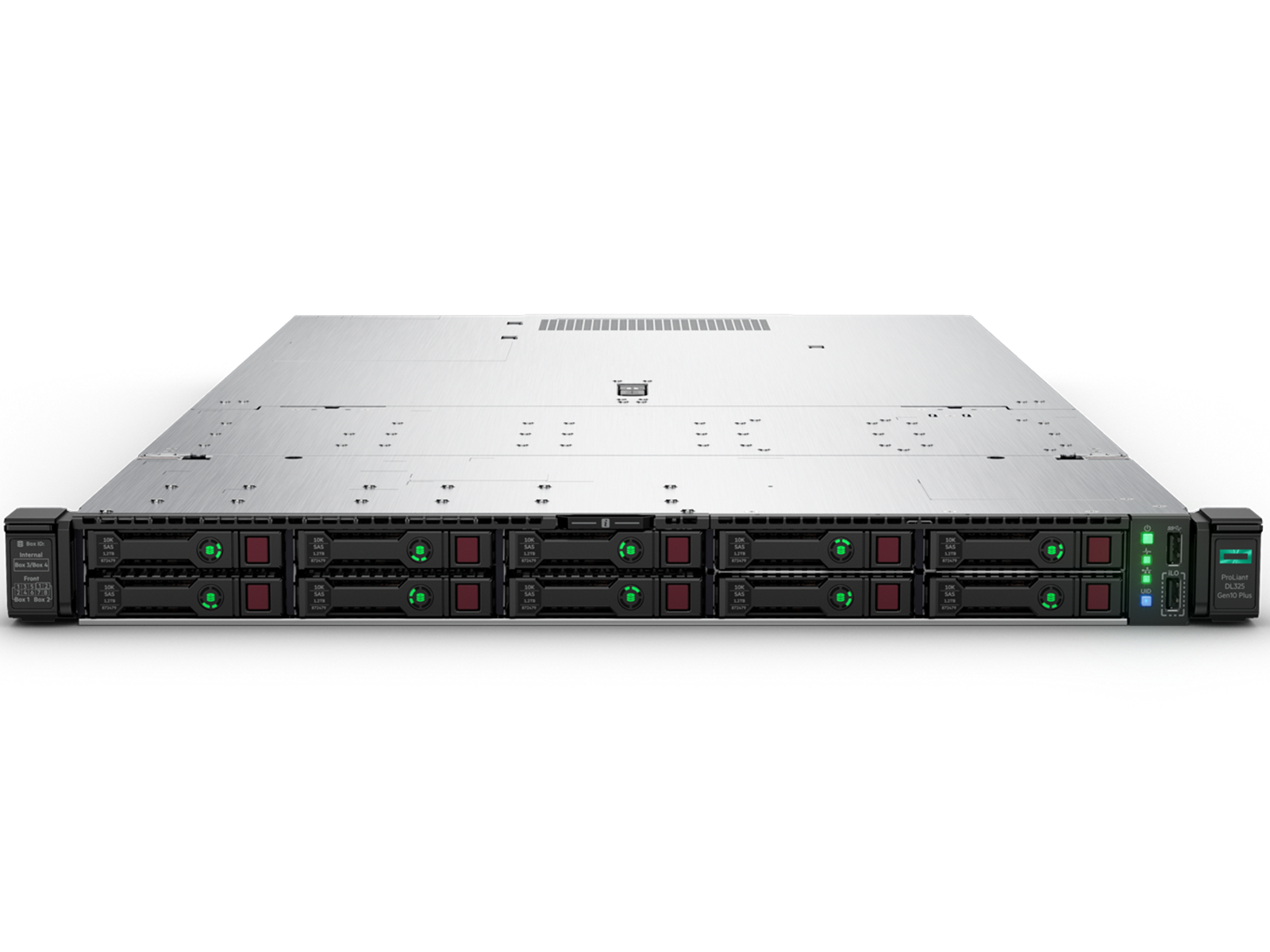

CTO HPE ProLiant DL360 Gen10 Plus 10 bay SFF server
This is factory configured CTO model, part number P28948-B21
Detailed list of part numbers is below
Further customization is available, please inquire
Warranty: 3-year parts, 3-year labor, 3-year onsite support with next business day response from HPE
Chassis:
1U Server
2x CPU platform
2x CPUs installed, additional CPU configs are available, please inquire
10 bays SFF (2.5") SATA/SAS
CPU:
2x Intel Xeon Gold 6354 3.0 - 3.6GHz 18 core 39MB L3 205W installed
2x High Performance Heatsink installed
Additional CPU config is available
RAM:
2x 32GB DDR4 Registered ECC 3200MHz Module (additional RAM configs are available)
32x RAM slots on motherboard
Up to 8TB of RAM per server
RAID:
MegaRaid MR416i-a x16 lanes, 12Gb/s SAS/SATA/NVMe/HBA Tri-mode Controller/Adapter
Smart battery is installed
Alternative RAID adapters are available
HDD/SSD:
10x HPE 2.4TB SAS 10K 12G with Basic Carrier 512e MV BC
Various sizes and types of alternative drives are available, please inquire
NIC:
Dual Port 10/25Gbe SFP28 QL41232 NIC in OCP3 slot
Additional NICs are available
Fans:
7 high performance hot swappable fans installed
PCI-e slots:
3x PCI-e 4.0 slots x16 (3x LP)
Additional PCI-e slots/risers are available, please inquire
Remote management / iLO5:
Standard
Advanced license is available, please inquire
PSU:
2x 1600W FlexSlot Power supply installed
Rail kit:
Included
Cable management arm:
Not included
Warranty:
3-year parts from HPE
3-year labor from HPE
3-year onsite support with next business day response from HPE
Detailed list of part:
| P28948-B21 | HPE DL360 Gen10+ 8SFF NC CTO Svr |
| P28948-B21#ABA | DL360 Gen10 Plus 8SFF CTO Server |
| P36935-B21 | INT Xeon-G 6354 CPU for HPE |
| P36935-B21#0D1 | Factory Integrated |
| P40007-B21 | HPE 32GB 1Rx4 PC4-3200AA-R Smart Kit |
| P40007-B21#0D1 | Factory Integrated |
| P26427-B21 | HPE DL360 Gen10+ 8SFF SAS/SATA BC BP Kit |
| P26427-B21#0D1 | Factory integrated |
| P26435-B21 | HPE DL360 Gen10+ 2SFF SAS/SATA BC Kit |
| P26435-B21#0D1 | Factory integrated |
| P26471-B21 | HPE DL36x Gen10+ LP Riser Kit |
| P26471-B21#0D1 | Factory integrated |
| P01366-B21 | HPE 96W Smart Stg Li-ion Batt 145mm Kit |
| P01366-B21#0D1 | Factory Integrated |
| P26279-B21 | Broadcom MR416i-a Cntrl for HPE Gen10+ |
| P26279-B21#0D1 | Factory Integrated |
| P10118-B21 | HPE 10/25GbE 2P SFP28 QL41232 OCP3 Adptr |
| P10118-B21#0D1 | Factory Integrated |
| P26477-B21 | HPE DL36x Gen10+ High Perf Fan Kit |
| P26477-B21#0D1 | Factory integrated |
| P38997-B21 | HPE 1600W FS Plat Ht Plg LH Pwr Sply Kit |
| P38997-B21#0D1 | HPE 1600W II FS Plat HtPlg Pwr Spply Kit |
| P55882-B21 | HPE DL36x G10+ 8SFF SAS/SATA TM Cbl Kit |
| P55882-B21#0D1 | Factory integrated |
| P55883-B21 | HPE DL36x G10+ 2SFF SAS/SATA TM Cbl Kit |
| P55883-B21#0D1 | Factory integrated |
| 867998-B21 | HPE 1U Gen10 Bezel Kit |
| 867998-B21#0D1 | Factory Integrated |
| 875519-B21 | HPE Bezel Lock Kit |
| 875519-B21#0D1 | Factory Integrated |
| P13771-B21 | HPE Gen10 Plus TPM BR Module Kit |
| P13771-B21#0D1 | Factory Integrated |
| P14604-B21 | HPE Gen10+ Intrusion Detection Kit |
| P14604-B21#0D1 | Factory Integrated |
| P26479-B21 | HPE DL360 Gen10+ High Perf Heat Sink Kit |
| P26479-B21#0D1 | Factory integrated |
| P26485-B21 | HPE DL300 G10+ 1U SFF Easy Inst Rail Kit |
| P26485-B21#0D1 | Factory integrated |
| General Information | |
|---|---|
Vendor |
HPE
|
