Description

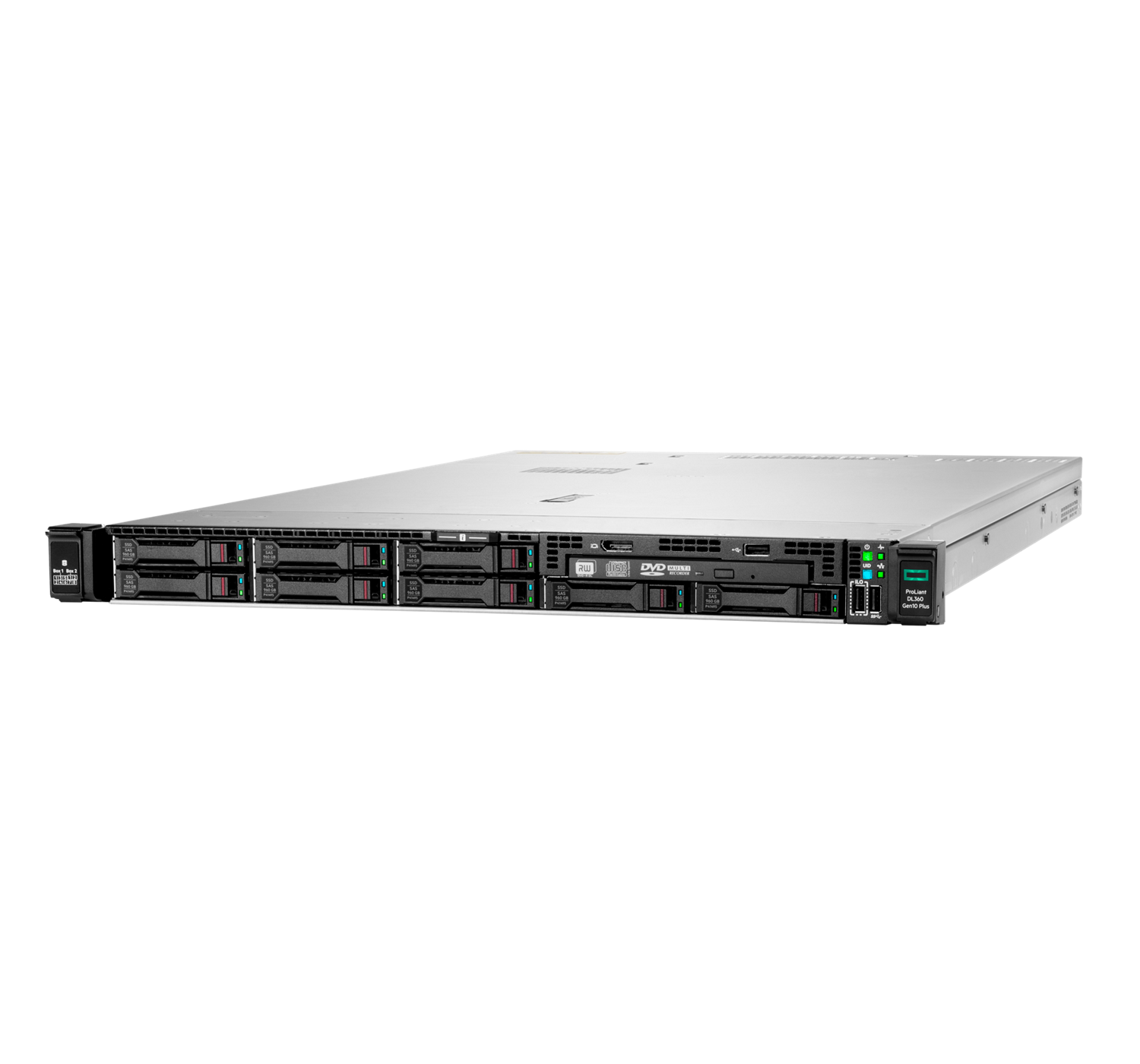

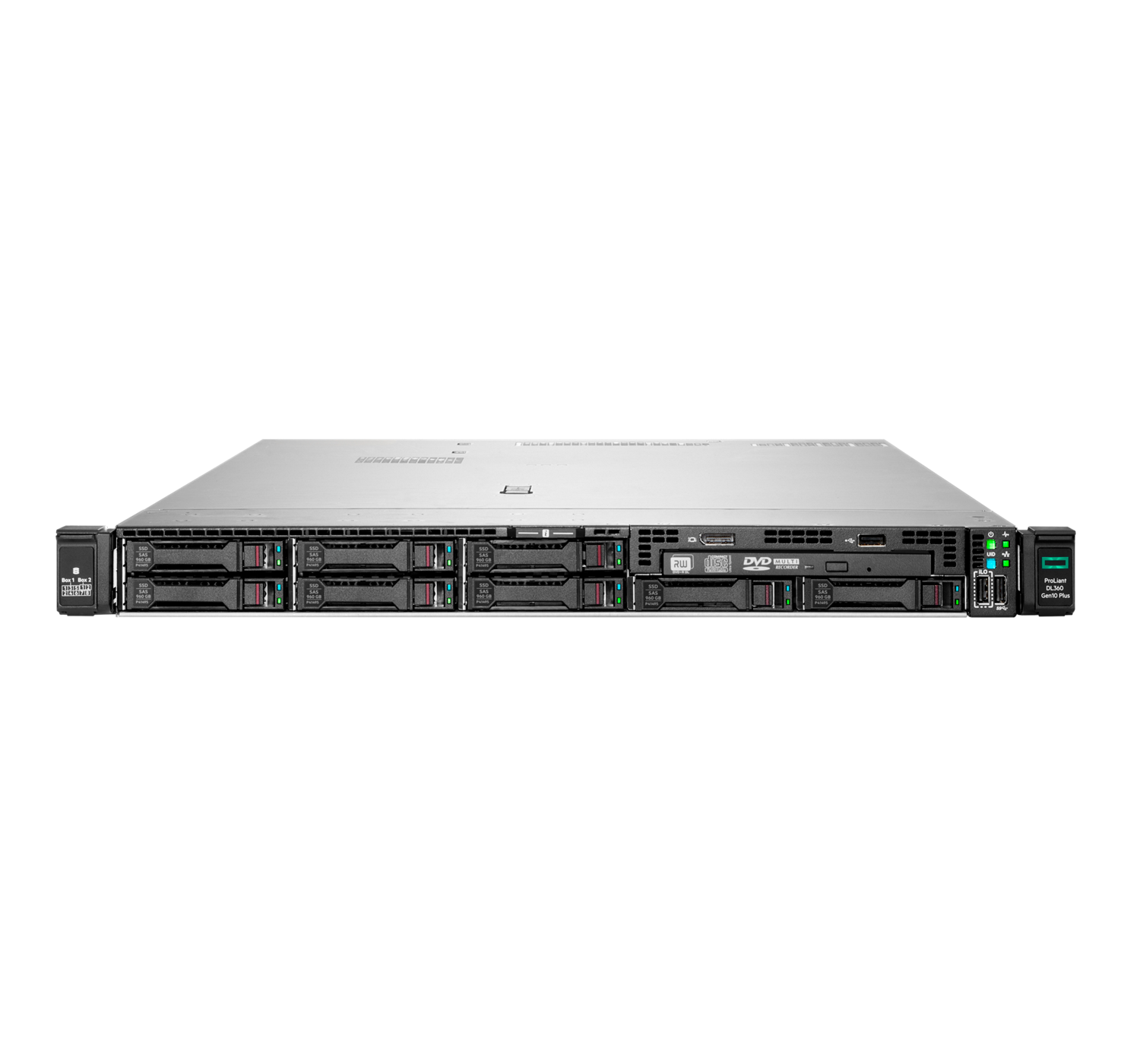

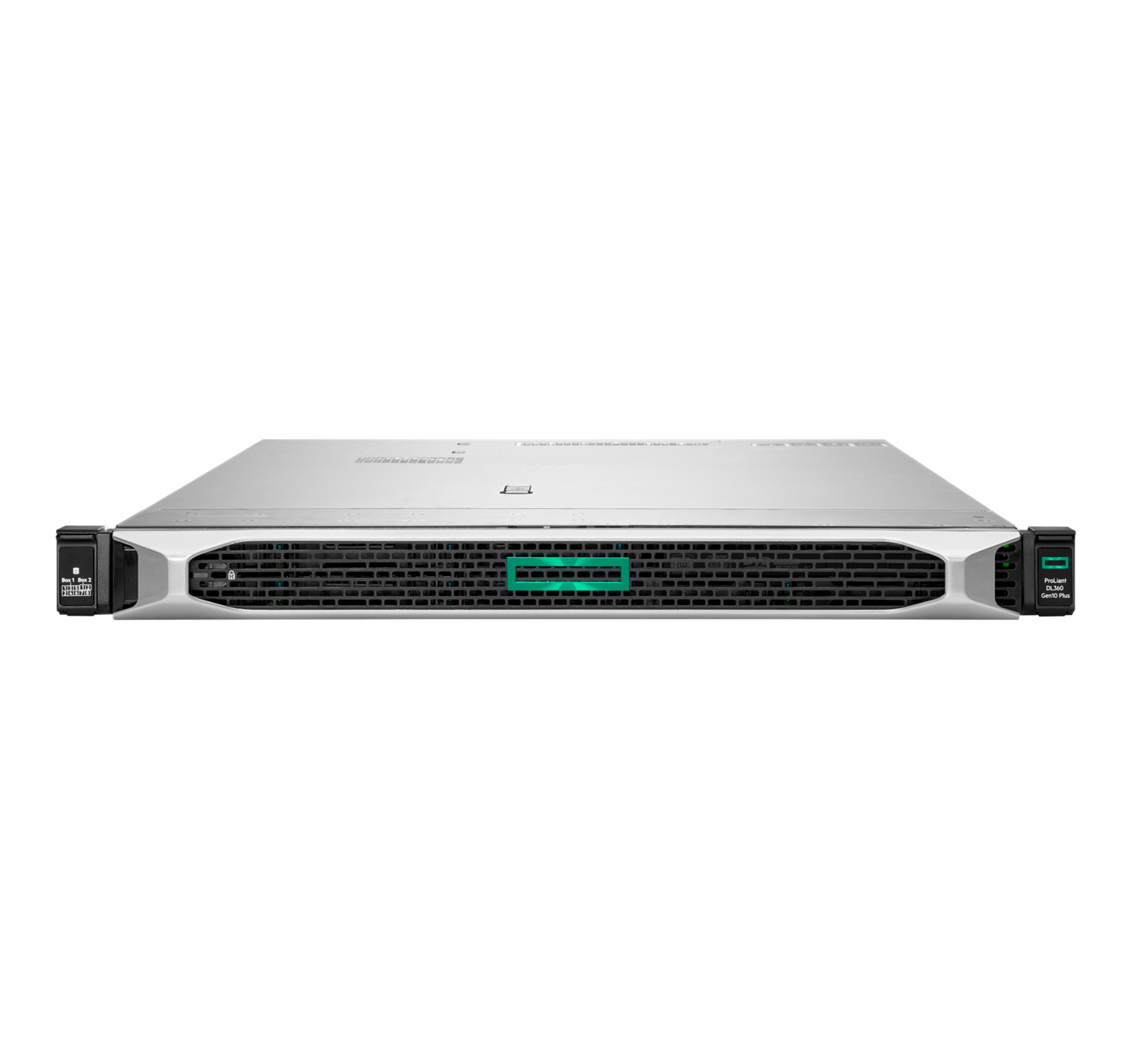

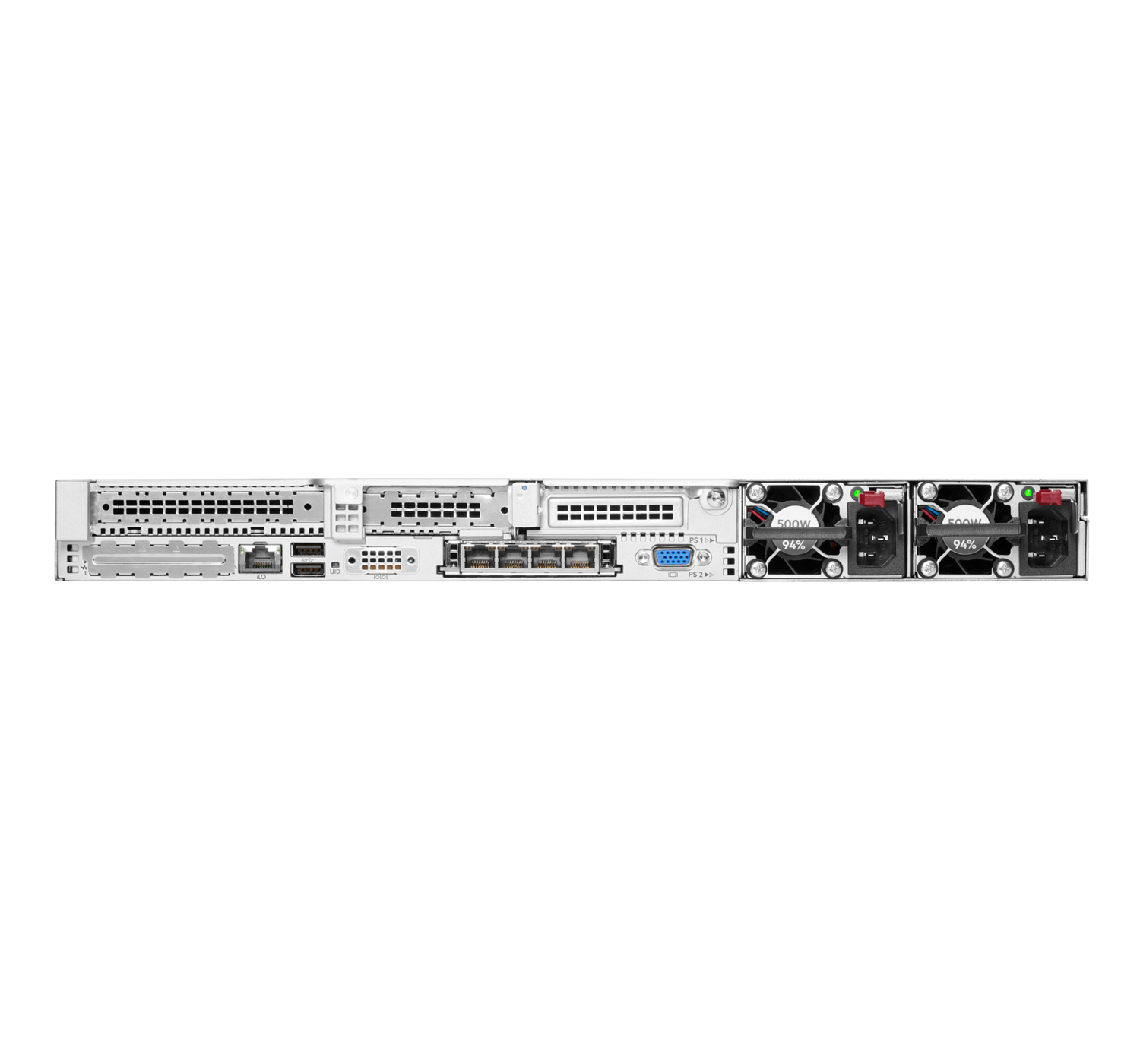

HPE ProLiant DL360 Gen10 Plus 8xSFF Server
Processor core available8 cores
Processor cache12 MB L3
Memory typeHPE DDR4 SmartMemory
Persistent Memory TypeOptional: Intel® Optane™ Persistent Memory for HPE
Persistent Memory Media CapacityOptional: 128 to 256 GB
NVDIMM typeOptional: Intel® Optane™ Persistent Memory for HPE
NVDIMM capacityOptional: 128 to 512 GB
Infrastructure managementIncluded - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download)
Optional - HPE iLO Advanced, and HPE OneView Advanced
System fan features5 High Performance fans
Power supply type1 HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply
Expansion Slots2 PCIe Gen4: 1 x16 FH, 1 x16 LP
Network ControllerBroadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Storage controllerBroadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus and HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable
Warranty3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit http://www.hpe.com/support
Processor NameIntel® Xeon® Silver 4309Y (8 core, 2.8 GHz, 105W)
Processor number1
Processor speed2.8 GHz
Memory, standard32 GB (1x 32GB) RDIMM and 31 DIMM blanks
Included hard drivesNone ship standard, 8 SFF SAS/SATA/NVMe drives supported
Optical drive typeOptional DVD via Universal Media Bay or USB connectivity
SecurityUEFI Secure Boot and Secure Start support
Intel® Software Guard Extensions (SGX) support
Immutable Silicon Root of Trust
Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits
Form Factor1U Rack
WeightSFF: 28.74 lb to 35.86 lb
LFF: 30.36 lb to 37.00 lb
WeightSFF: 13.04 kg to 16.27 kg
LFF: 13.77 kg to 16.78 kg
Minimum dimensions ( H x W x D)SFF: 1.69 x 17.11 x 30.30 in
LFF: 1.69 x 17.11 x 31.50 in
Minimum dimensions ( H x W x D)SFF: 4.29 x 43.46 x 76.96 cm
LFF: 4.29 x 43.46 x 80.01 cm

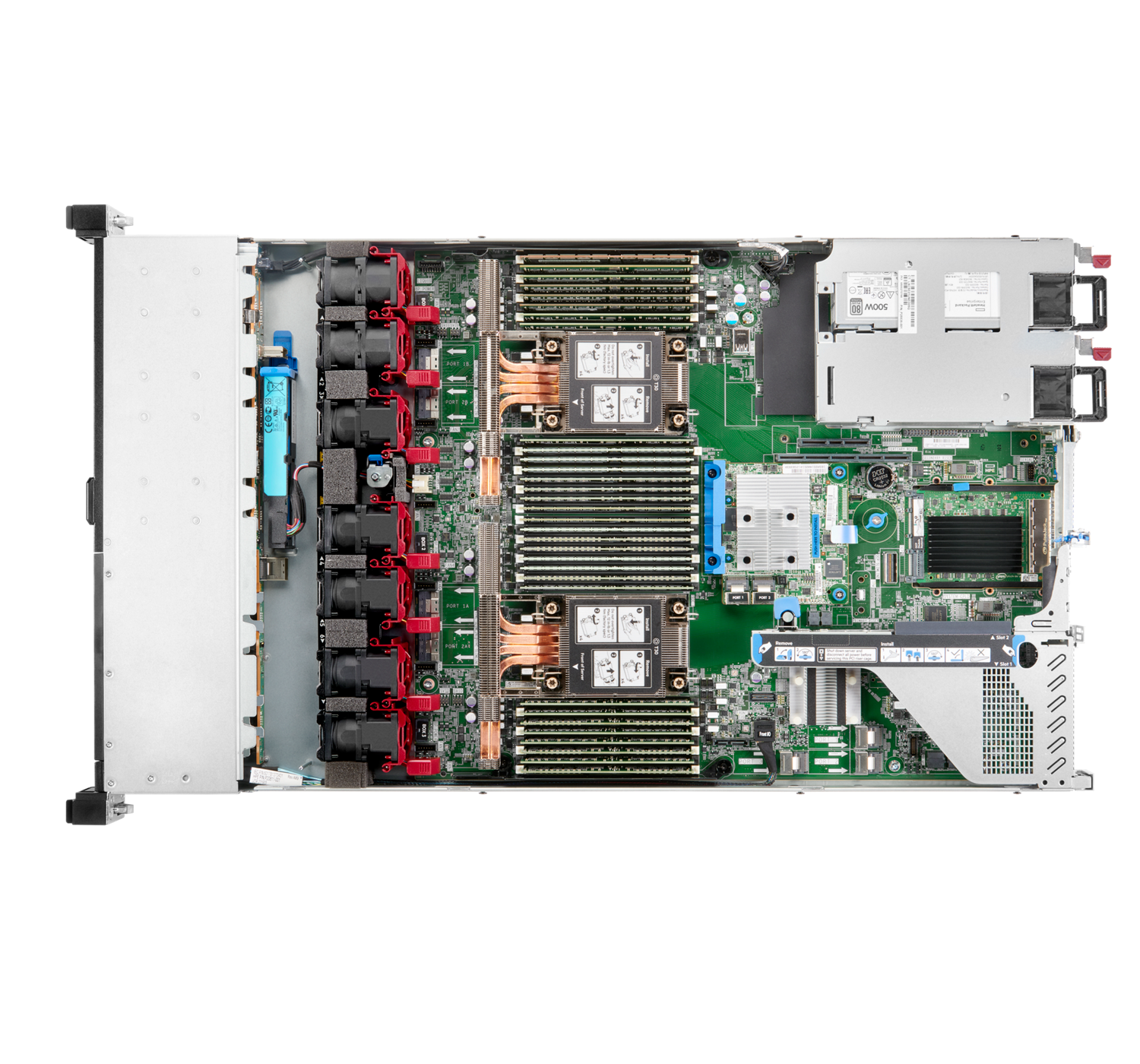

Detailed product descriptionHPE ProLiant DL360 Gen10 Plus server with one Intel® Xeon® Scalable 4309Y processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-a x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor SAS/SATA/NVMe drive bays, five high performance fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
