Description

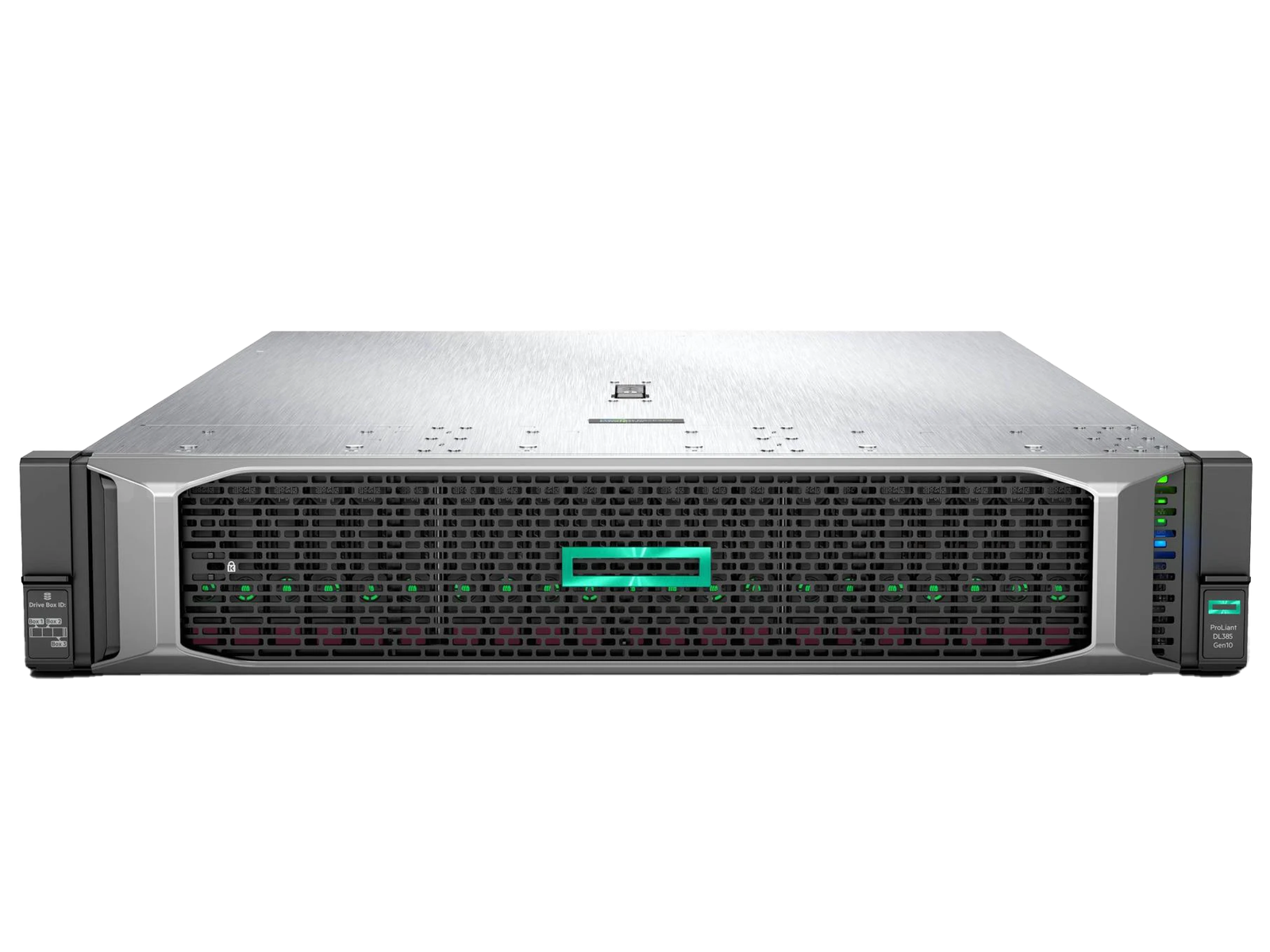

HPE ProLiant DL385 Gen10 Plus 12 bay LFF CTO Server
This is custom configuration, please read detailed specs below
Further customization is available, please inquire
We can update the firmware, install additional components, drives etc, configure iLO and install OS prior to shipping if needed, please inquire
Rear serial port kit
TPM Module
Shipping:
This is custom configuration, please read detailed specs below
Further customization is available, please inquire
We can update the firmware, install additional components, drives etc, configure iLO and install OS prior to shipping if needed, please inquire
Rear serial port kit
TPM Module
Shipping:
Shipping will be via carrier of our choice unless prior arrangements are made
International shipping is via Fedex
~~~~~~~~~~~~~
CTO parts list:
| P14280-B21 | HPE DL385 Gen10+ 12LFF CTO Svr |
| P14280-B21#ABA | HPE DL385 Gen10 Plus CTO Mod-X 12LFF Svr |
| P21785-L21 | HPE DL385 Gen10+ AMD EPYC 7272 FIO Kit |
| P21785-B21 | HPE DL385 Gen10+ AMD EPYC 7272 Kit |
| P21785-B21#0D1 | Factory Integrated |
| P38454-B21 | HPE 32GB 1Rx4 PC4-3200AA-R Smart Kit |
| P38454-B21#0D1 | Factory Integrated |
| P14587-B21 | HPE DL38X Gen10+ x8/x16/x8 Sec Riser Kit |
| P14587-B21#0D1 | Factory Integrated |
| P14588-B21 | HPE DL38X Gen10+ x16 Tertiary Riser Kit |
| P14588-B21#0D1 | Factory Integrated |
| P01366-B21 | HPE 96W Smart Stg Li-ion Batt 145mm Kit |
| P01366-B21#0D1 | Factory Integrated |
| 804338-B21 | HPE Smart Array P816i-a SR Gen10 Ctrlr |
| 804338-B21#0D1 | Factory Integrated |
| P10118-B21 | HPE 10/25GbE 2P SFP28 QL41232 OCP3 Adptr |
| P10118-B21#0D1 | Factory Integrated |
| 830272-B21 | HPE 1600W FS Plat Ht Plg LH Pwr Sply Kit |
| 830272-B21#0D1 | Factory Integrated |
| 867809-B21 | HPE Gen10 2U Bezel Kit |
| 867809-B21#0D1 | Factory Integrated |
| 875519-B21 | HPE Bezel Lock Kit |
| 875519-B21#0D1 | Factory Integrated |
| P13771-B21 | HPE Gen10 Plus TPM BR Module Kit |
| P13771-B21#0D1 | Factory Integrated |
| P14606-B21 | HPE DL38X Gen10+ Rear Serial Cable Kit |
| P14606-B21#0D1 | Factory Integrated |
| P14610-B21 | HPE DL38X Gen10+ High Perf Heat Sink Kit |
| P14610-B21#0D1 | Factory Integrated |
| P22019-B21 | HPE DL38X Gen10+ 2U LFF EI Rail Kit |
| P22019-B21#0D1 | Factory Integrated |
| Specs | |
|---|---|
Condition |
|
| General Information | |
Vendor |
HPE
|
Product Name |
|
Server Type |
|
Product Line |
|
Product Series |
|
Generation |
|
| Chassis | |
Form Factor |
|
Max CPU Configuration |
|
Drive Bays Configuration |
|
Max Drive Bays Configuration |
|
Fans |
|
Rail Kit |
|
Cable Management Arm |
|
Bezel |
|
| Processor | |
CPU Configuration |
|
Processor Manufacturer |
|
Processor Model |
|
Number of Cores |
|
Number of Threads |
|
Base Frequency |
|
L3 Cache |
|
CPU Socket |
|
Max Memory |
|
Max Memory Speed |
|
TDP |
|
| Memory | |
Capacity |
|
Configuration |
|
Memory Type |
|
Memory Speed |
|
ECC Supported |
|
Number of Slots |
|
Max Memory Support |
|
| Storage | |
SSD Configuration |
|
HDD Configuration |
|
Optical Drive |
|
| Storage Controller | |
Controller Model |
|
Controller Type |
|
Type of Ports |
|
Number of Ports |
|
RAID Level |
|
Battery |
|
| Networking | |
Adapter Model |
|
Connection Speed |
|
Type of Ports |
|
Number of Ports |
|
| Expansions | |
PCI-e Slots |
|
Riser Options Installed |
|
| Power Supplies | |
PSU Configuration |
|
PSU Type |
|
Max PSU Configuration |
|
| Remote Management & Licence | |
Remote Management |
|
| Additional Information | |
Dimensions |
|
Warranty |
|
Policy
