Description

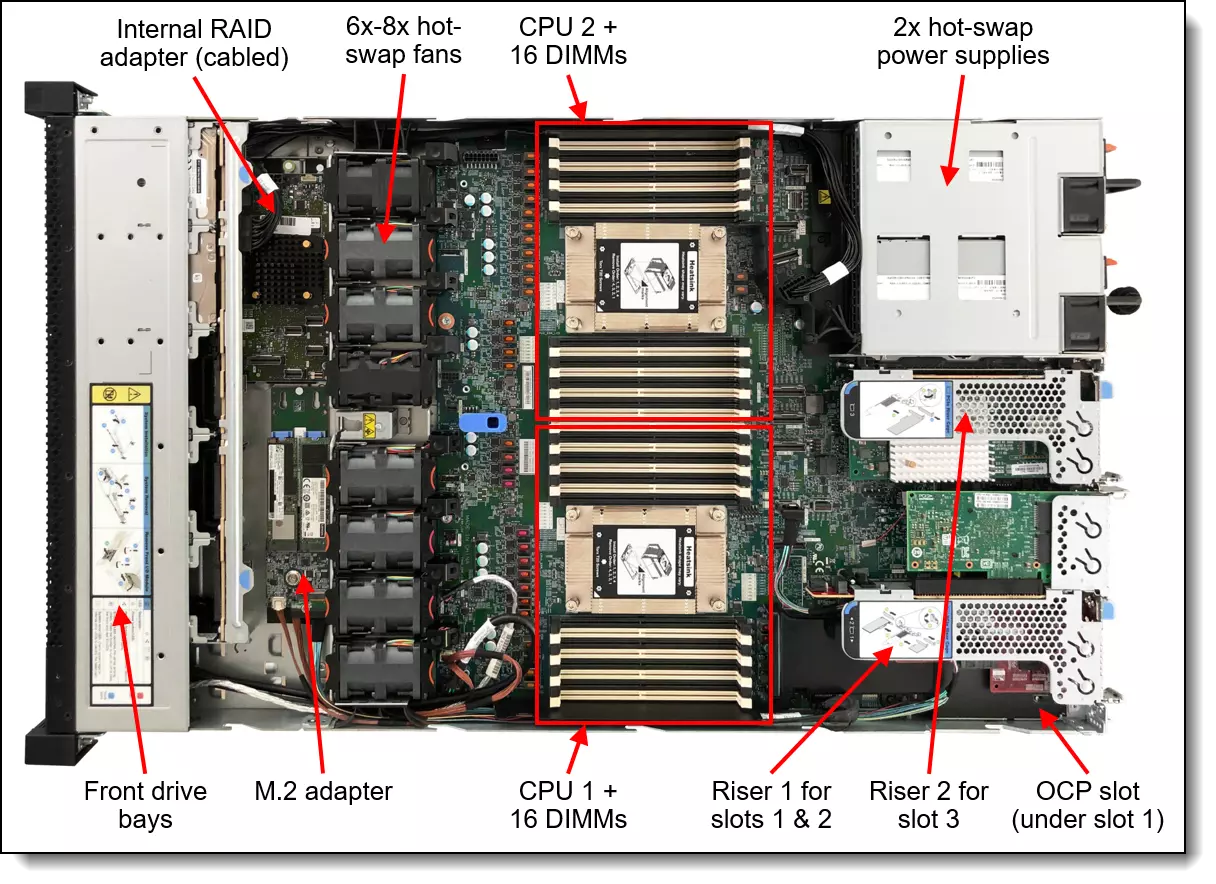

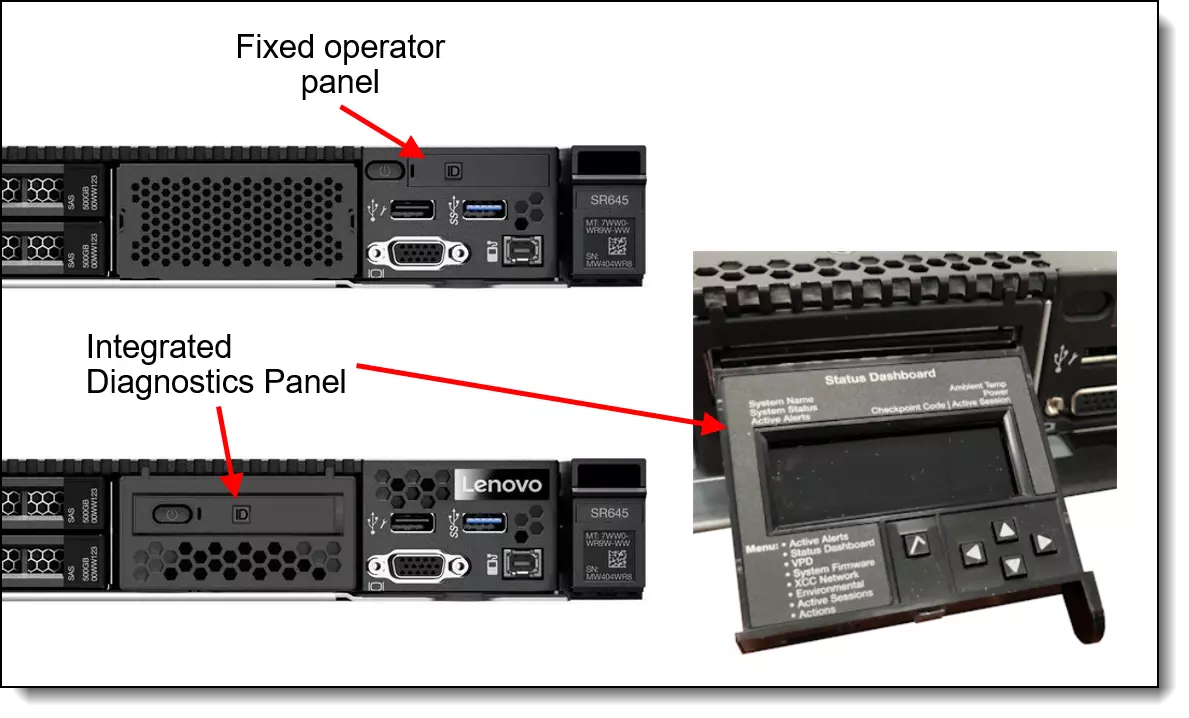

Lenovo ThinkSystem SR645 SFF Server
This is factory pre-configured option 7D2X100BNA
Further details are available on Lenovo site, search for "7D2X100BNA"
Thank you
Specifications:
| Product Name | Thinksystem SR645 73F3 32GB |
| Product Type | Server |
| Processor Core | 16 Core |
| Environmentally Friendly | Yes |
| Processor Manufacturer | AMD |
| Redundant Power Supply | Yes |
| Number of Total Memory Slots | 32 |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| RAID Supported | Yes |
| Ethernet Technology | Varies, based on NIC(s) installed |
| Power Supply | 2x 1100 W |
| Product Family | ThinkSystem SR645 |
| Total Solid State Drive Capacity | 1.92 TB |
| Energy Star | Yes |
| Limited Warranty Duration | 3 Year |
| Processor Model | 73F3 |
| Memory Technology | TruDDR4 |
| Chipset | AMD |
| Rack Height | 1U |
| Form Factor | Rack |
| Processor Speed | 3.50 GHz |
| Processor Type | EPYC |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Controller Type | 12Gb/s SAS |
| Maximum Memory Supported | 8 TB |
| Standard Memory | 32 GB |
| Cache | 256 MB |
| Chipset Manufacturer | AMD |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Number of Internal 2.5" Bays | 8 |
| Graphics Memory Capacity | 16 MB |
| Solid State Drive Interface | Serial ATA/600 |
| Hot Swappable Power Supply | Yes |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 2 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of Solid State Drives | 1 |
| Processor Generation | 3rd Gen |
| Number of Occupied Memory Slots | 1 |
| Hot Swappable Bays | Yes |
| Memory Clock Speed | 3200 MT/s |
| Controller Model | 930-8i |

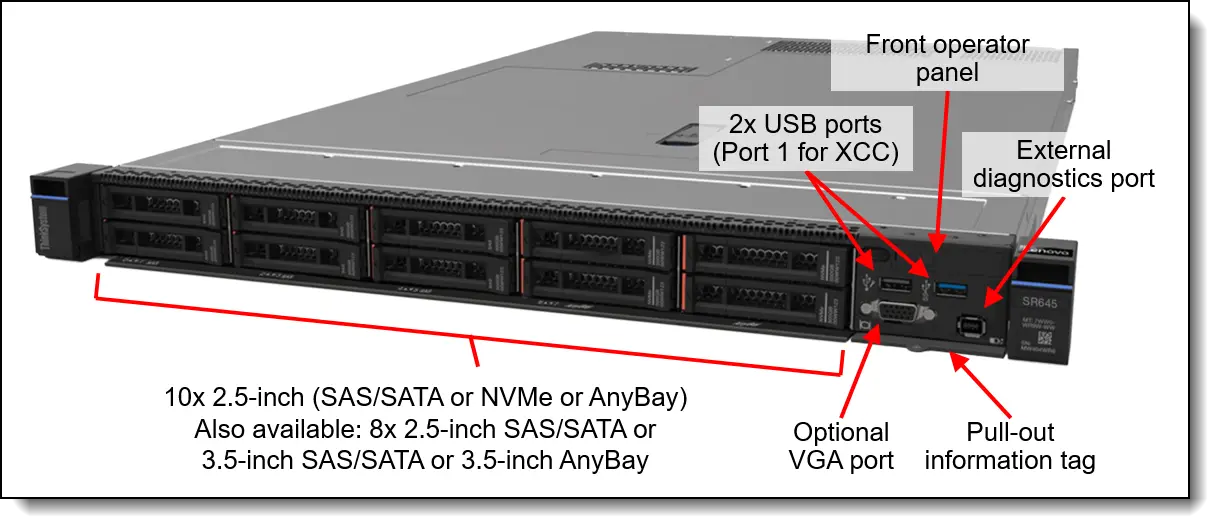

| Number of SFF Bays | 8 |

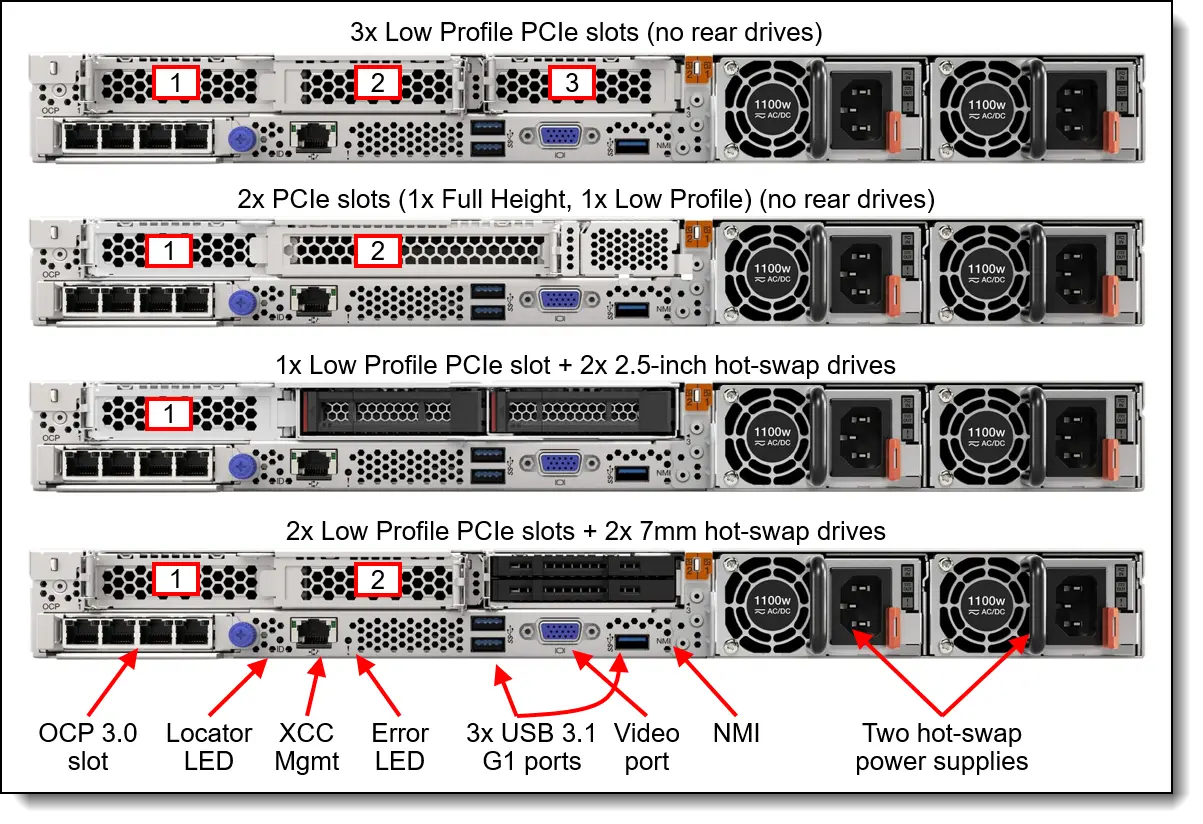

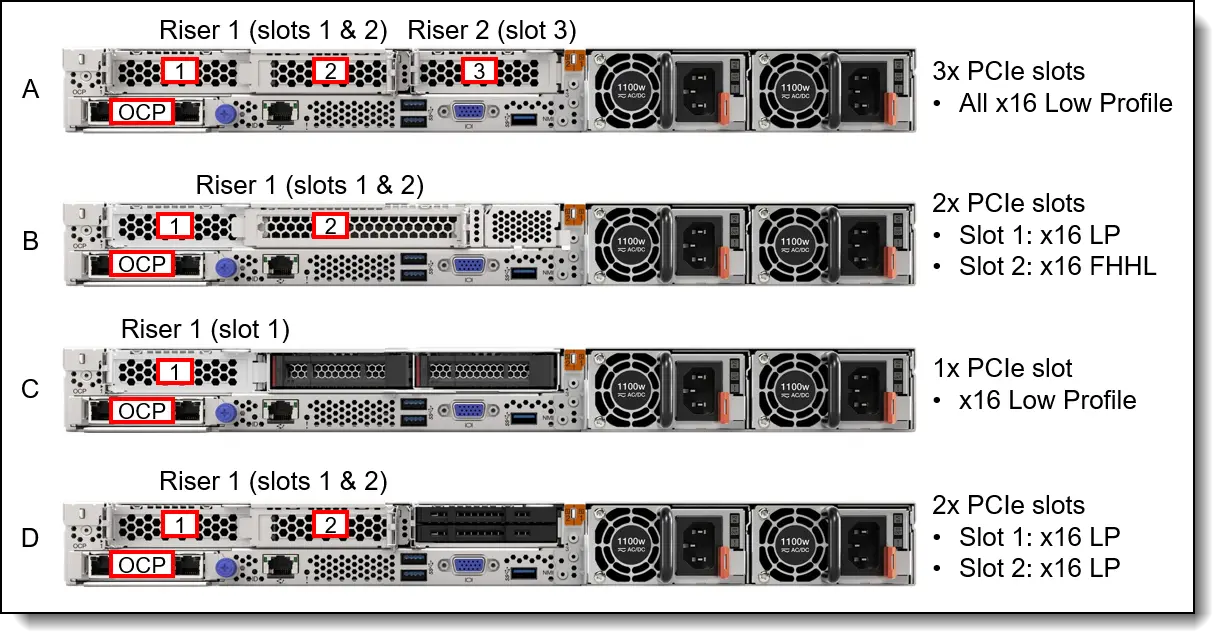

| PCI Express Details | Slot 1: Low Profile, PCIe 4.0 x16; Slot 2: FHHL, PCIe 4.0 x16 |
| Remote Management Controller | XClarity Controller (XCC) Enterpise |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 30.4" |
| Product Series | SR645 |
| Plug / Connector Type | C13 |
| Operating System Supported | Windows Server 2016
Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 8.3 Red Hat Enterprise Linux 8.4 Red Hat Enterprise Linux 8.5 Red Hat Enterprise Linux 8.6 Red Hat Enterprise Linux 8.7 Red Hat Enterprise Linux 9.0 Red Hat Enterprise Linux 9.1 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 SP3 SUSE Linux Enterprise Server 15 SP4 SUSE Linux Enterprise Server 15 SP5 Red Hat Enterprise Linux 8.8 Red Hat Enterprise Linux 9.2 Ubuntu 22.04 LTS x64 |
| Product Model | 7D2X100BNA |
| Product Line | ThinkSystem |
| Security Features |
|
| Error Checking | ECC |
| Input Voltage | 120 V AC
230 V AC |
| Signal Processing | Registered (Buffered) |
| Limited Warranty | 3 Year |
| Solid State Drive Configuration | 1 x 1.92TB |
| Number of VGA Ports | 2 |
| Power Source | Power Supply |
| General Information | |
|---|---|
Vendor |
Lenovo
|
