Description
Lenovo 430-16e External storage HBA

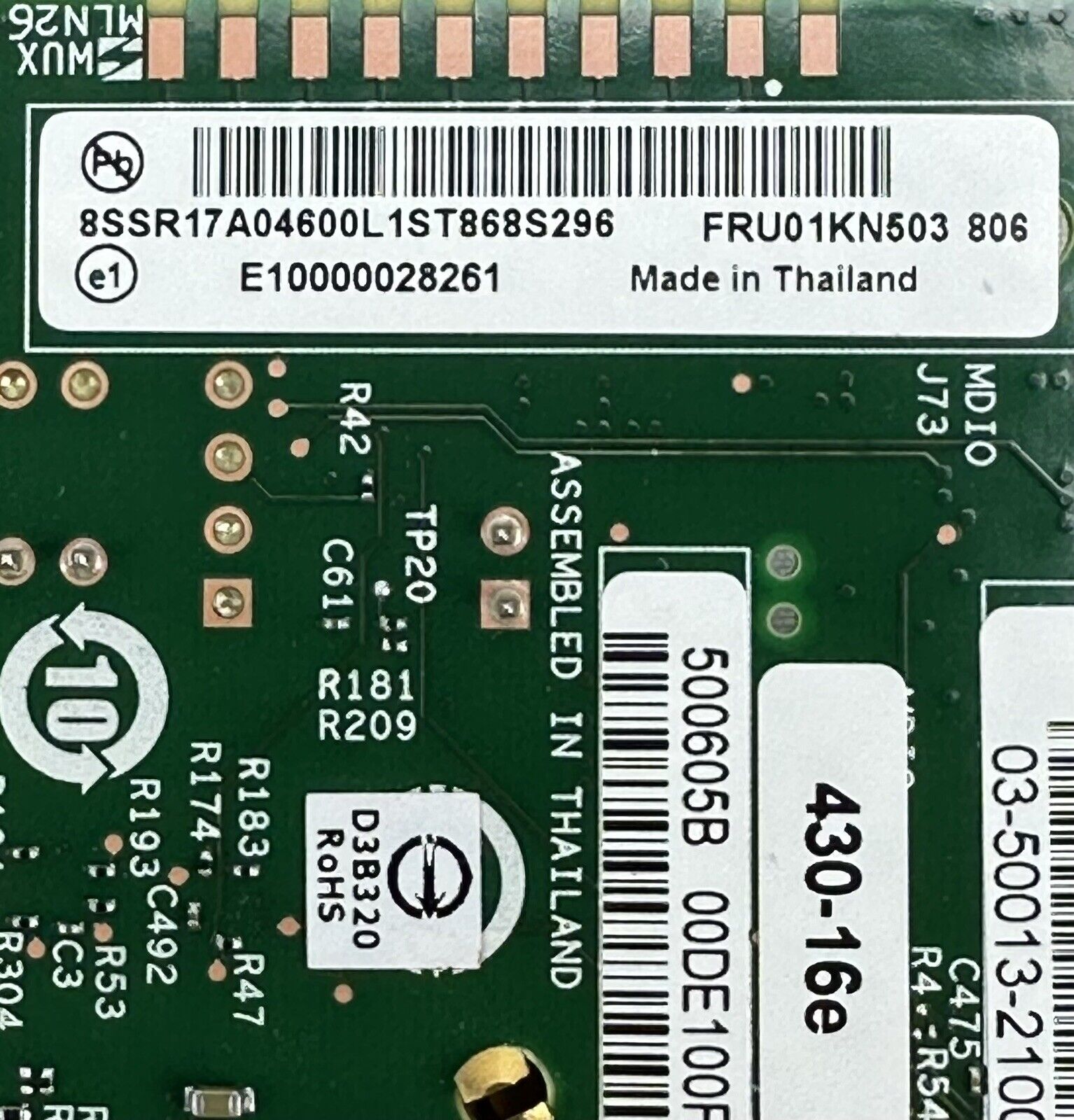

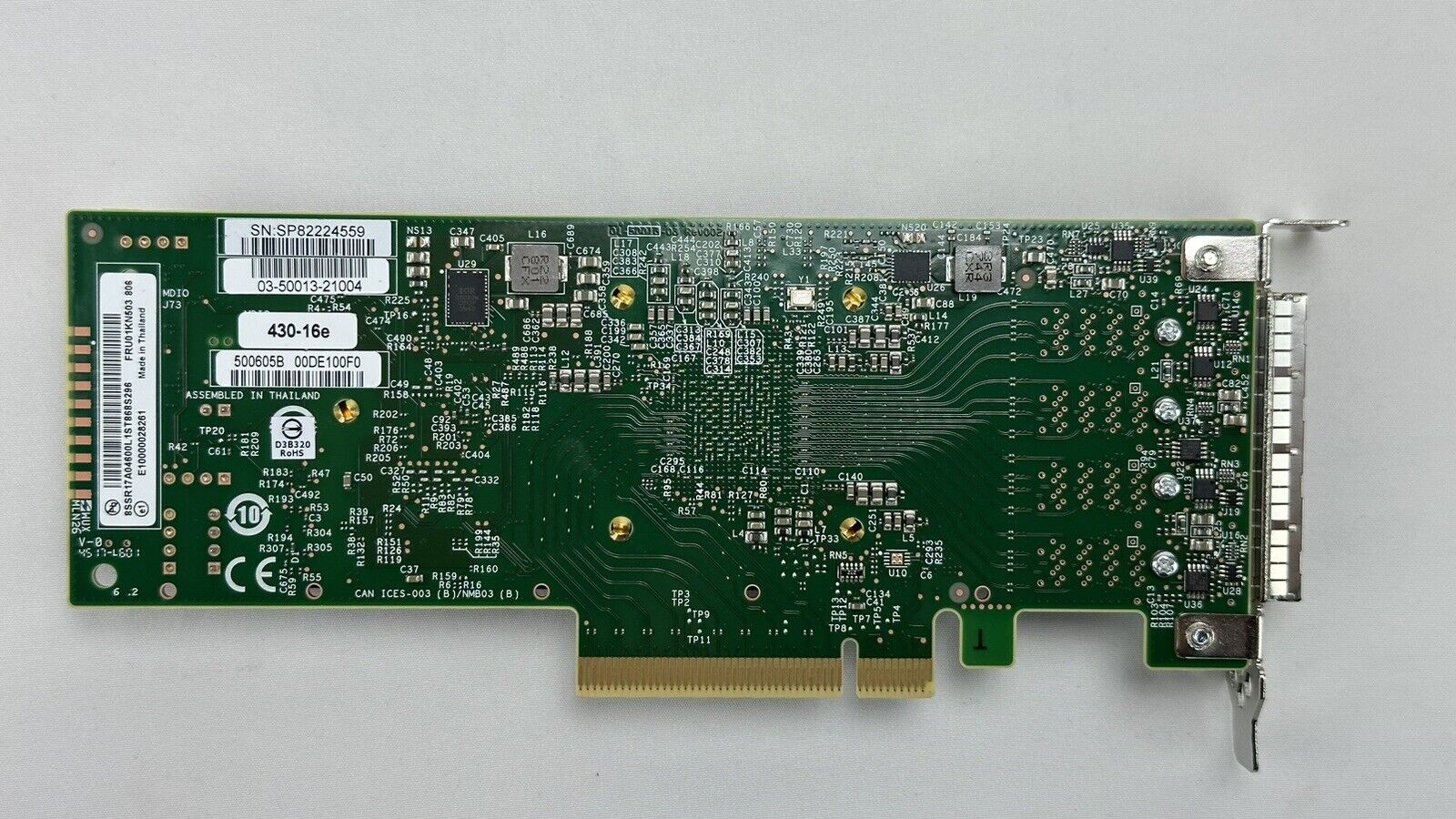

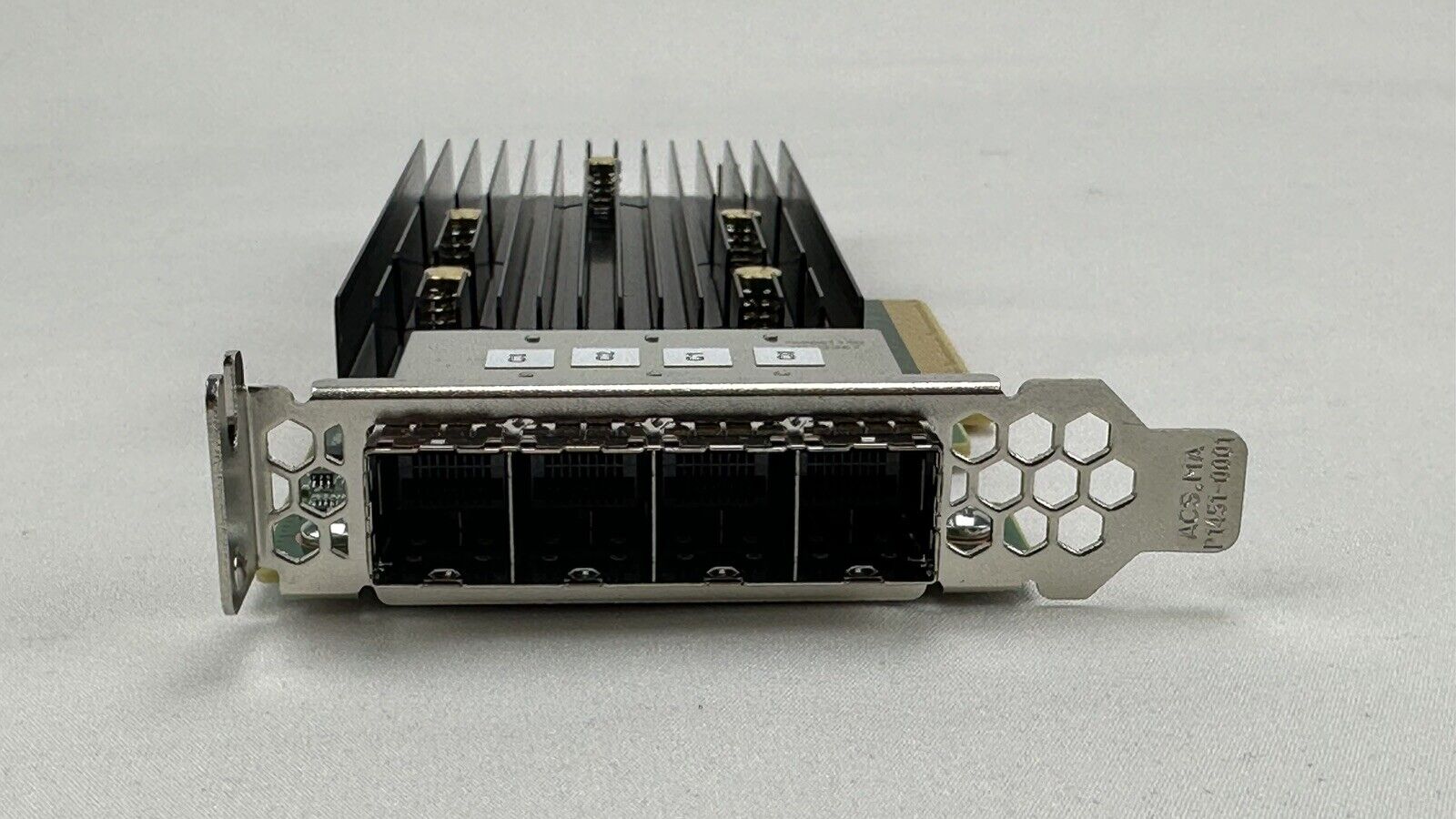

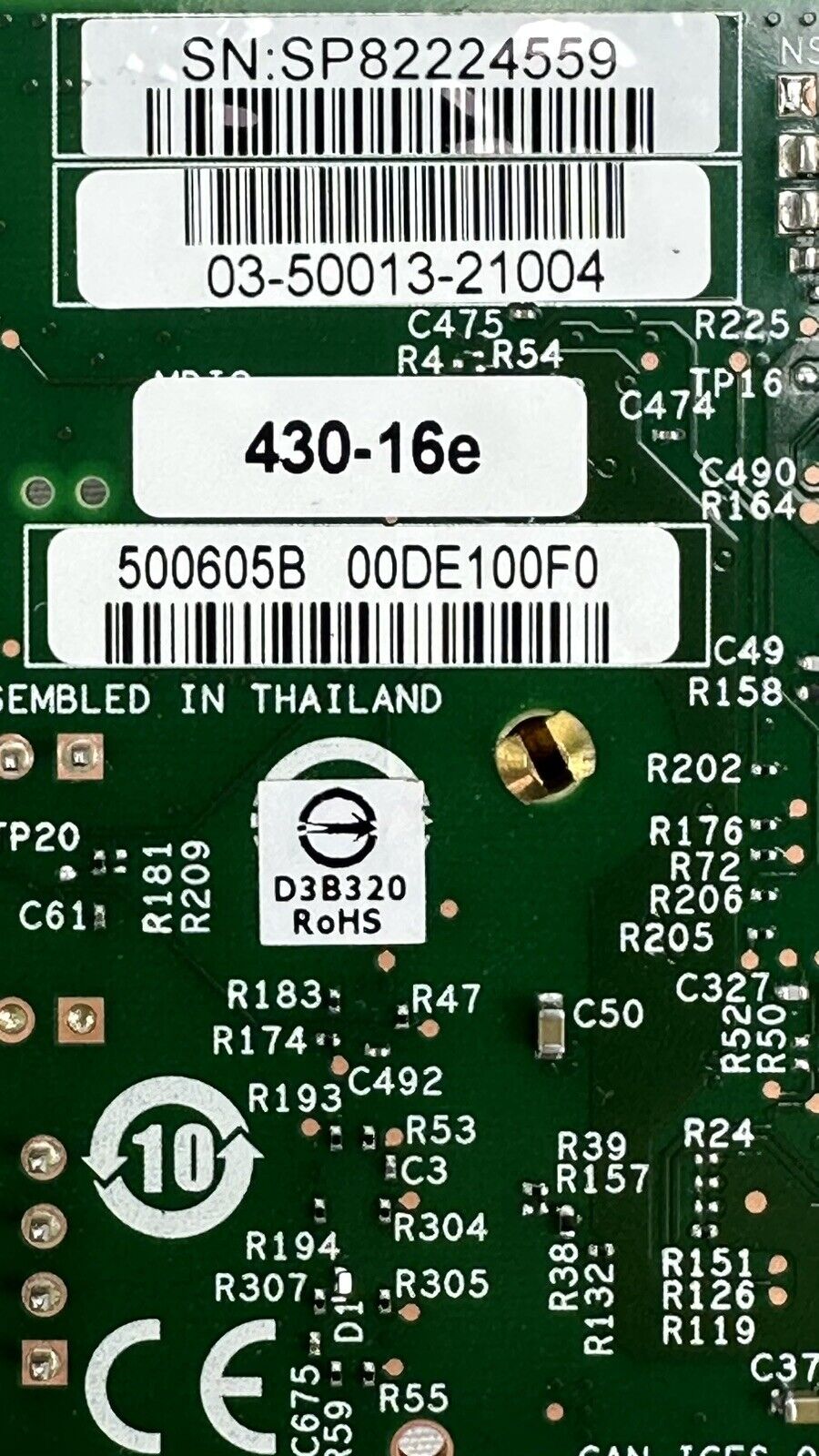

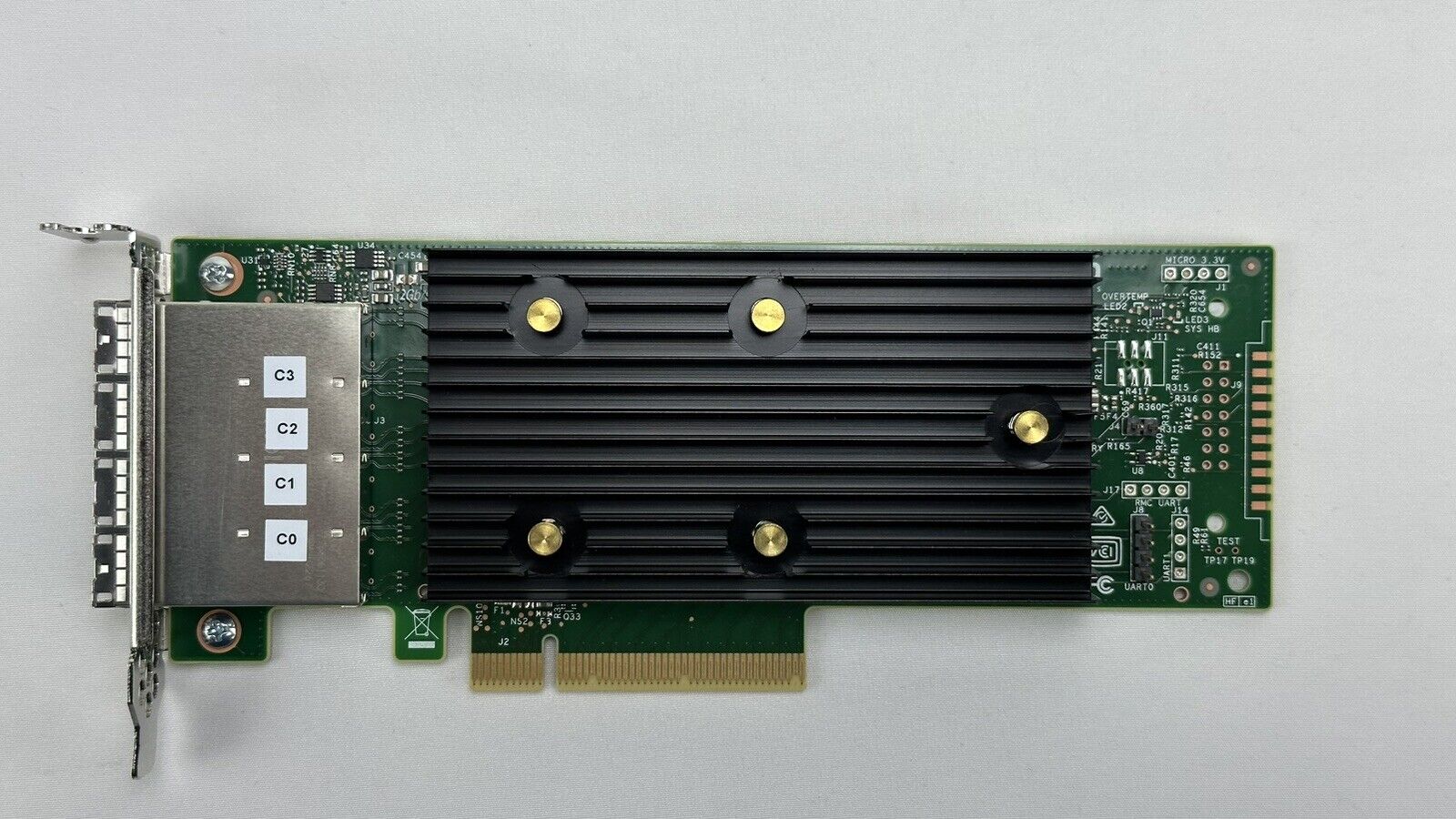

Ships with LP bracket as shown on the photos
Manufacturer Specs:
Features and specifications
The 430 external HBAs have the following features and specifications:
PCIe 3.0 x8 host interface
12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
PCI low profile, half-length form factor
External 12 Gbps SAS/SATA ports:
430-16e: 16 SAS/SATA ports
Connectivity for up to 1024 external SAS or SATA drives
Up to 12 Gbps throughput per port
Supports 12, 6, or 3 Gbps SAS speeds
Supports 6 or 3 Gbps SATA speeds

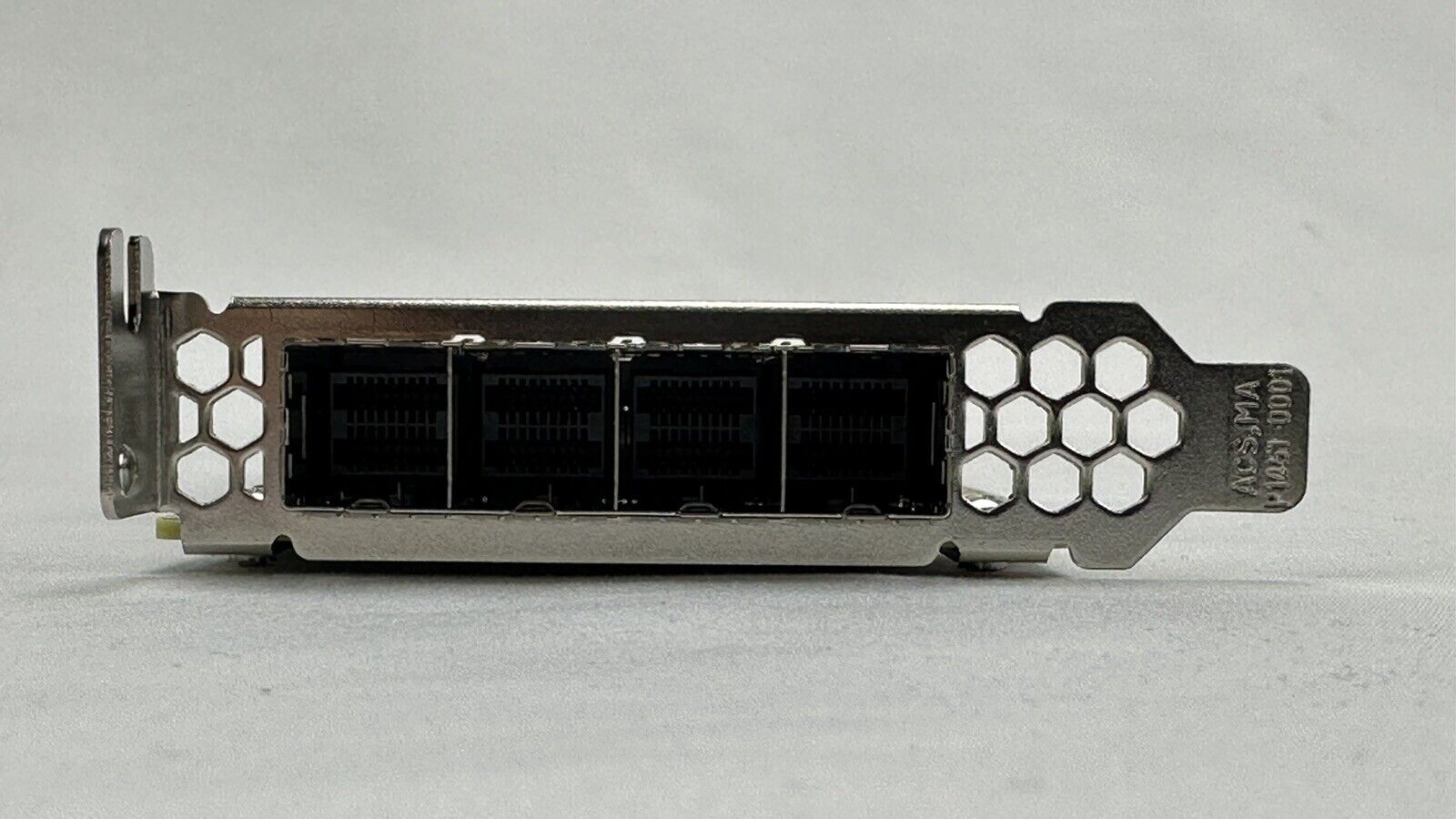

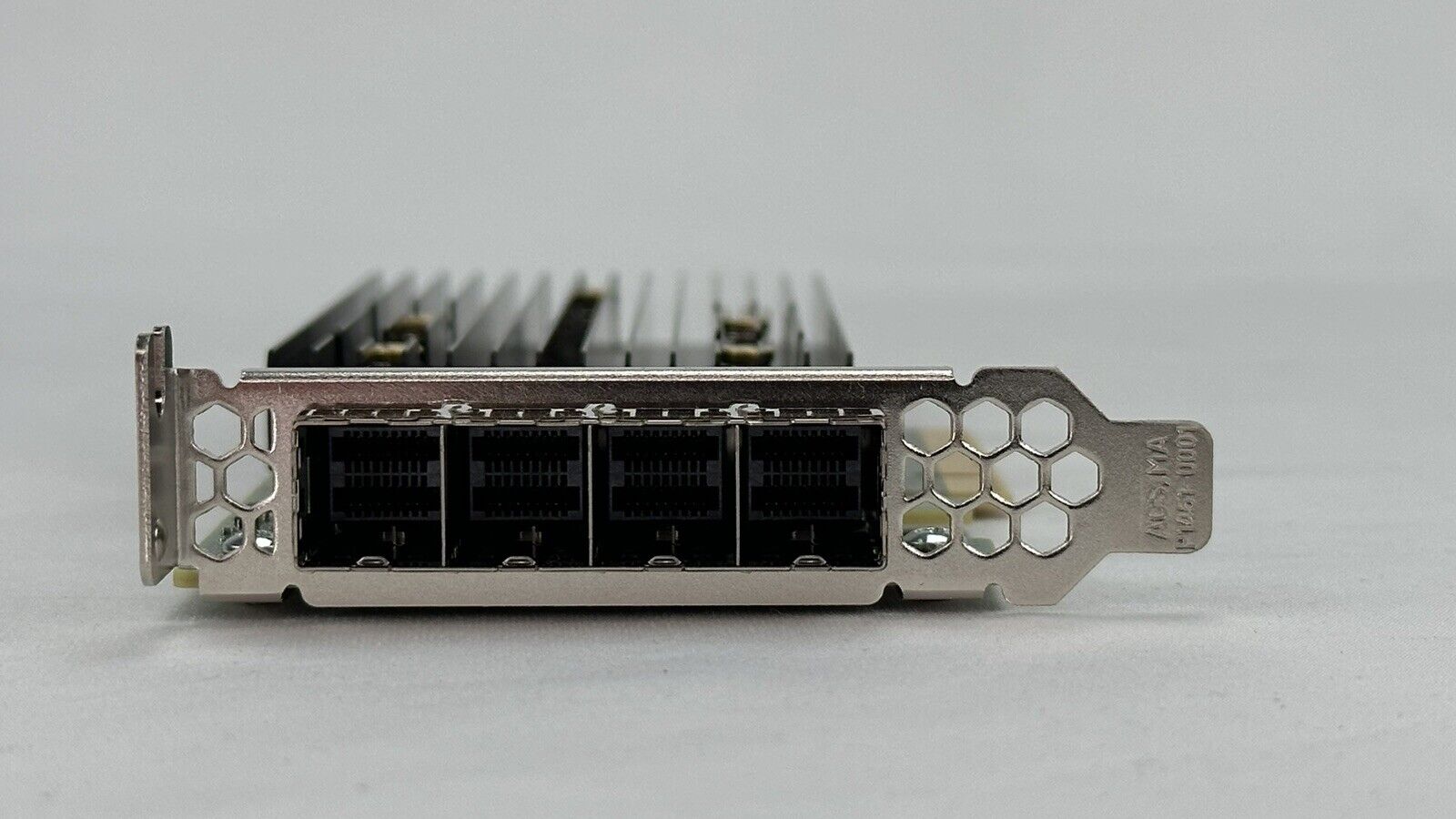

External x4 HD Mini-SAS connectors (SFF-8644):
430-16e: 4 external connectors
Support for external storage systems and tape backup units
High performance architecture with very deep queue depth
Advanced power management support
Support for SSP, SMP, STP, and SATA protocols
End-to-End CRC with Advanced Error Reporting
Spread Spectrum Clocking for EMI reductions
Supports 512e, 512n and 4K (when available) formatted drives
Compliant with Disk Data Format (DDF) configuration on disk (CoD).
S.M.A.R.T. support.
Configuration through
XClarity Provisioning Manager UEFI interface
XClarity Controller web interface
XClarity Administrator Configuration Patterns
StorCLI command-line interface
LSI Storage Authority (LSA) GUI interface
UEFI Human Interface Infrastructure (HII)
Ships with LP bracket as shown on the photos
Manufacturer Specs:
Features and specifications
The 430 external HBAs have the following features and specifications:
PCIe 3.0 x8 host interface
12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
PCI low profile, half-length form factor
External 12 Gbps SAS/SATA ports:
430-16e: 16 SAS/SATA ports
Connectivity for up to 1024 external SAS or SATA drives
Up to 12 Gbps throughput per port
Supports 12, 6, or 3 Gbps SAS speeds
Supports 6 or 3 Gbps SATA speeds
External x4 HD Mini-SAS connectors (SFF-8644):
430-16e: 4 external connectors
Support for external storage systems and tape backup units
High performance architecture with very deep queue depth
Advanced power management support
Support for SSP, SMP, STP, and SATA protocols
End-to-End CRC with Advanced Error Reporting
Spread Spectrum Clocking for EMI reductions
Supports 512e, 512n and 4K (when available) formatted drives
Compliant with Disk Data Format (DDF) configuration on disk (CoD).
S.M.A.R.T. support.
Configuration through
XClarity Provisioning Manager UEFI interface
XClarity Controller web interface
XClarity Administrator Configuration Patterns
StorCLI command-line interface
LSI Storage Authority (LSA) GUI interface
UEFI Human Interface Infrastructure (HII)
