Description

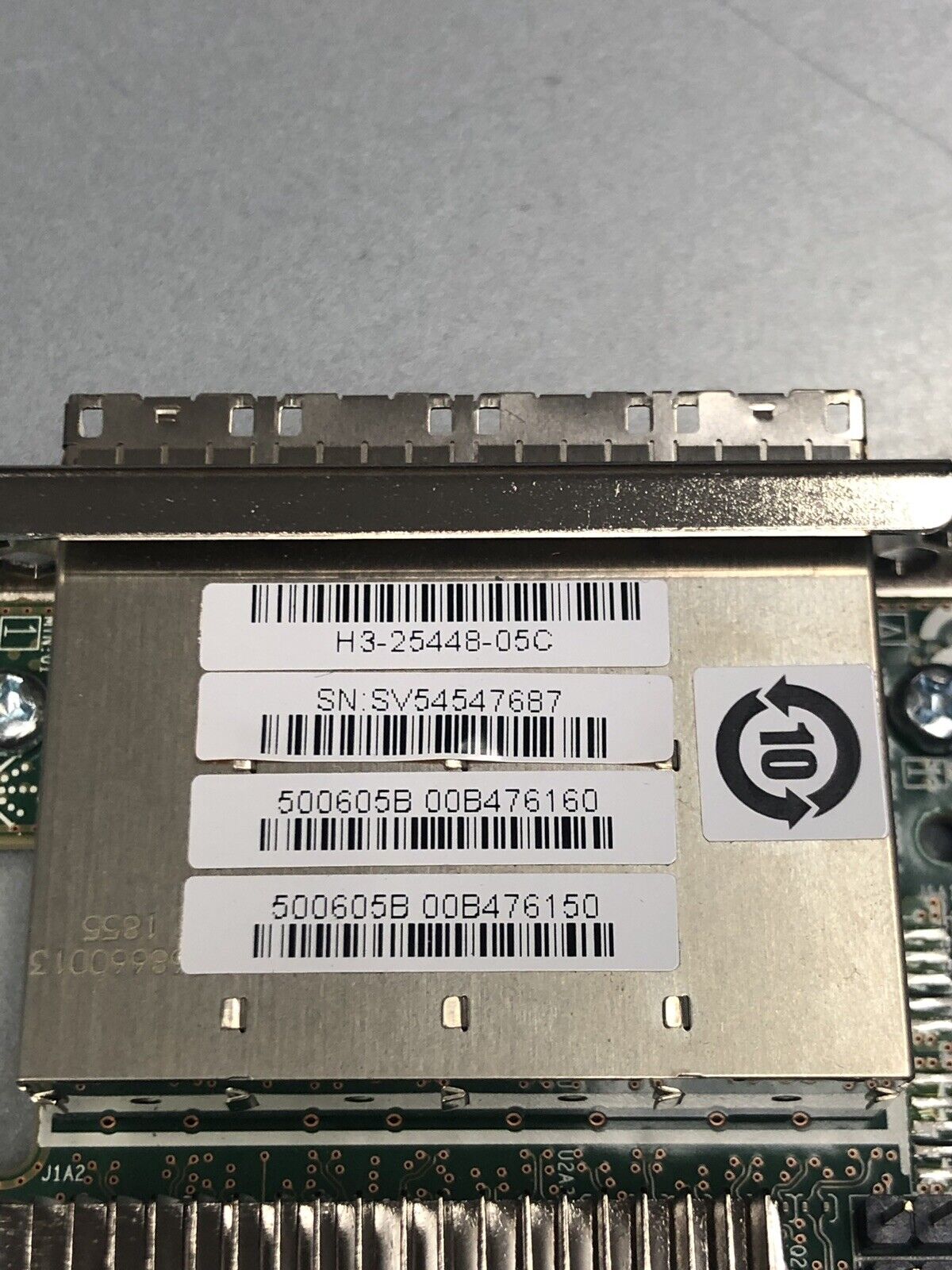

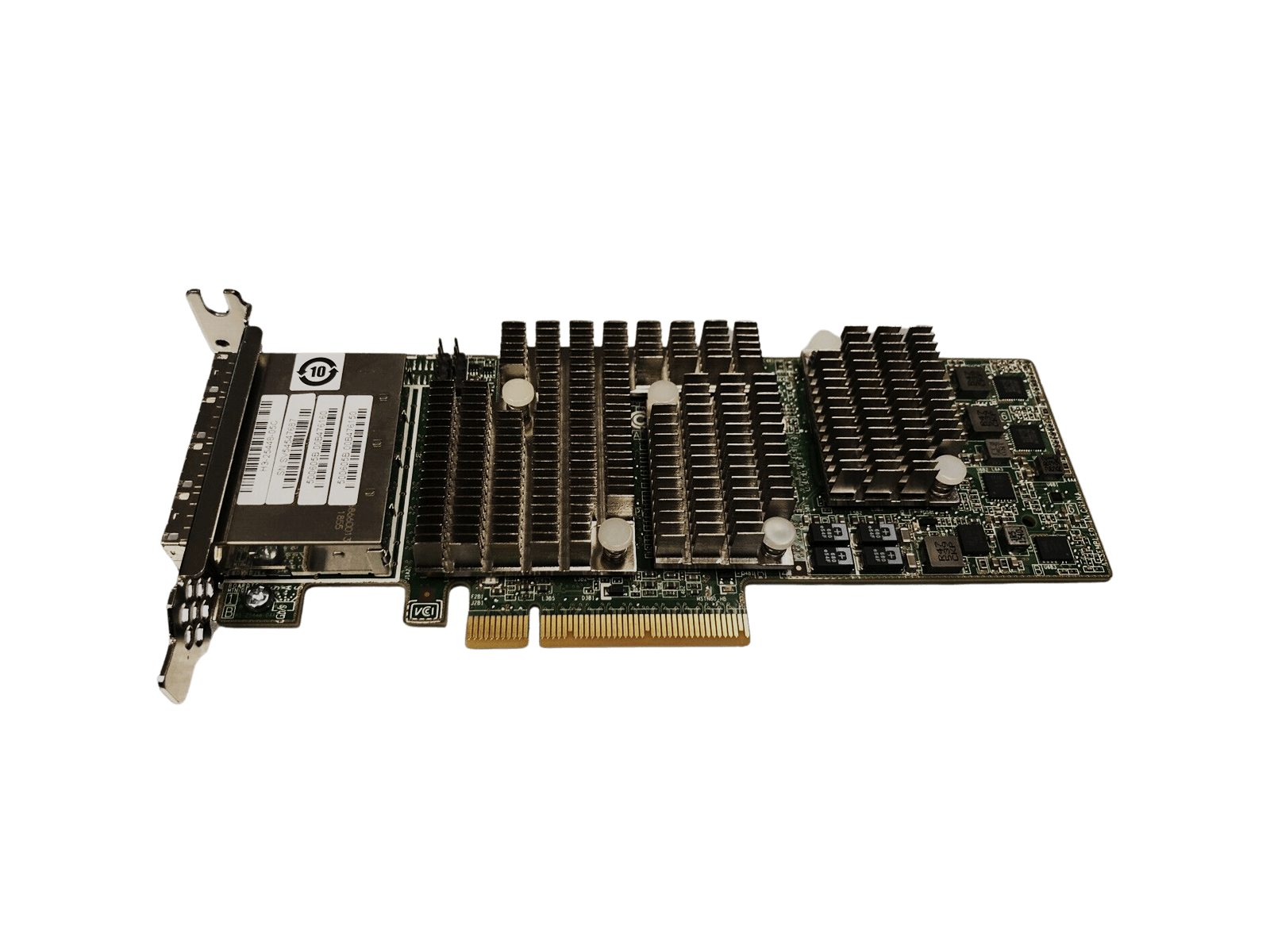

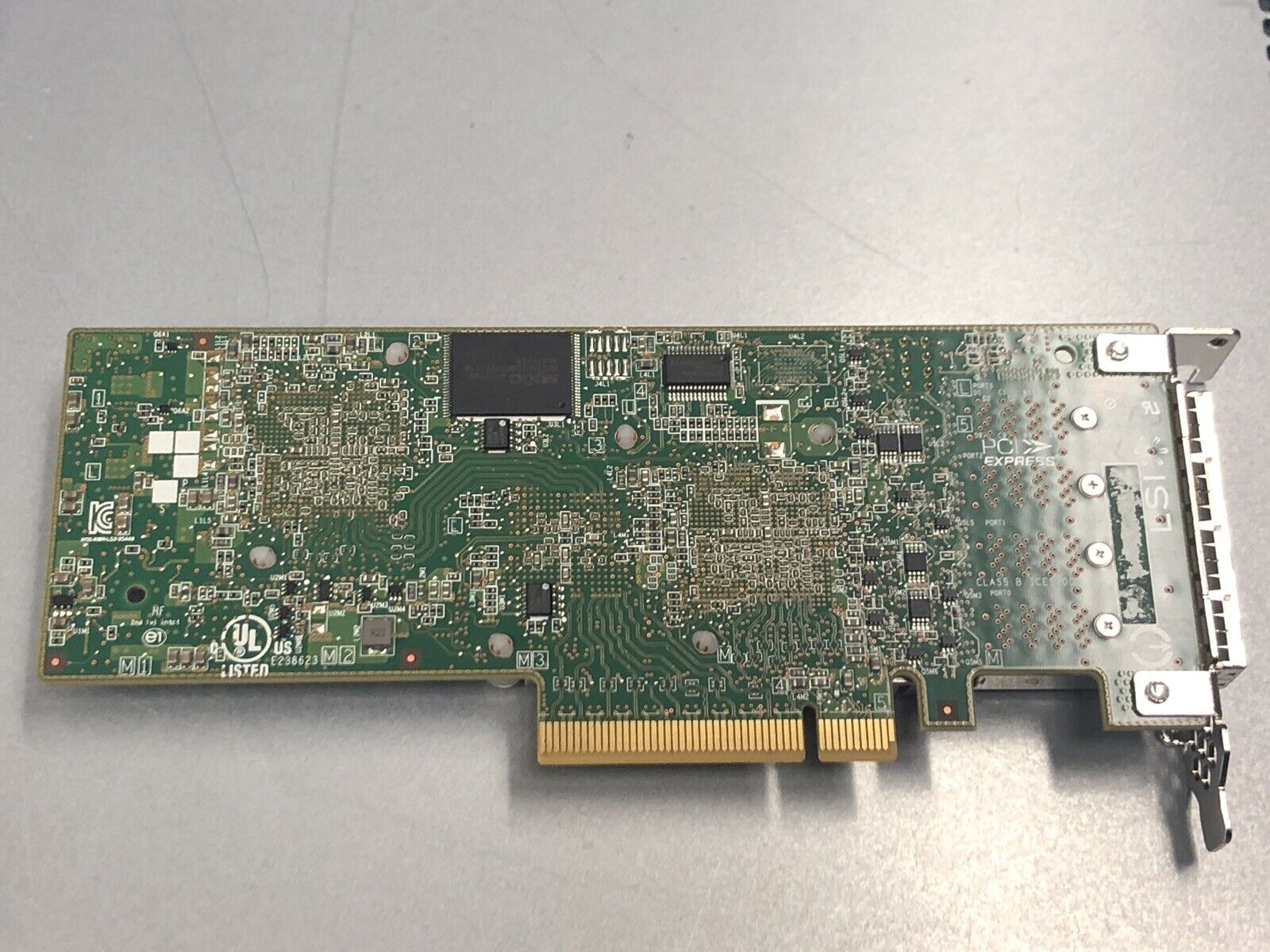

LSI SAS 9206-16 External HBA adapter
Ships with either Low Profile or Full Height or both bracket(s), please specify your preference
Features and Benefits:
- 16 external 6 Gb/s SAS+SATA ports
- 8 lanes, PCI Express 3.0
- Low profile form factor design

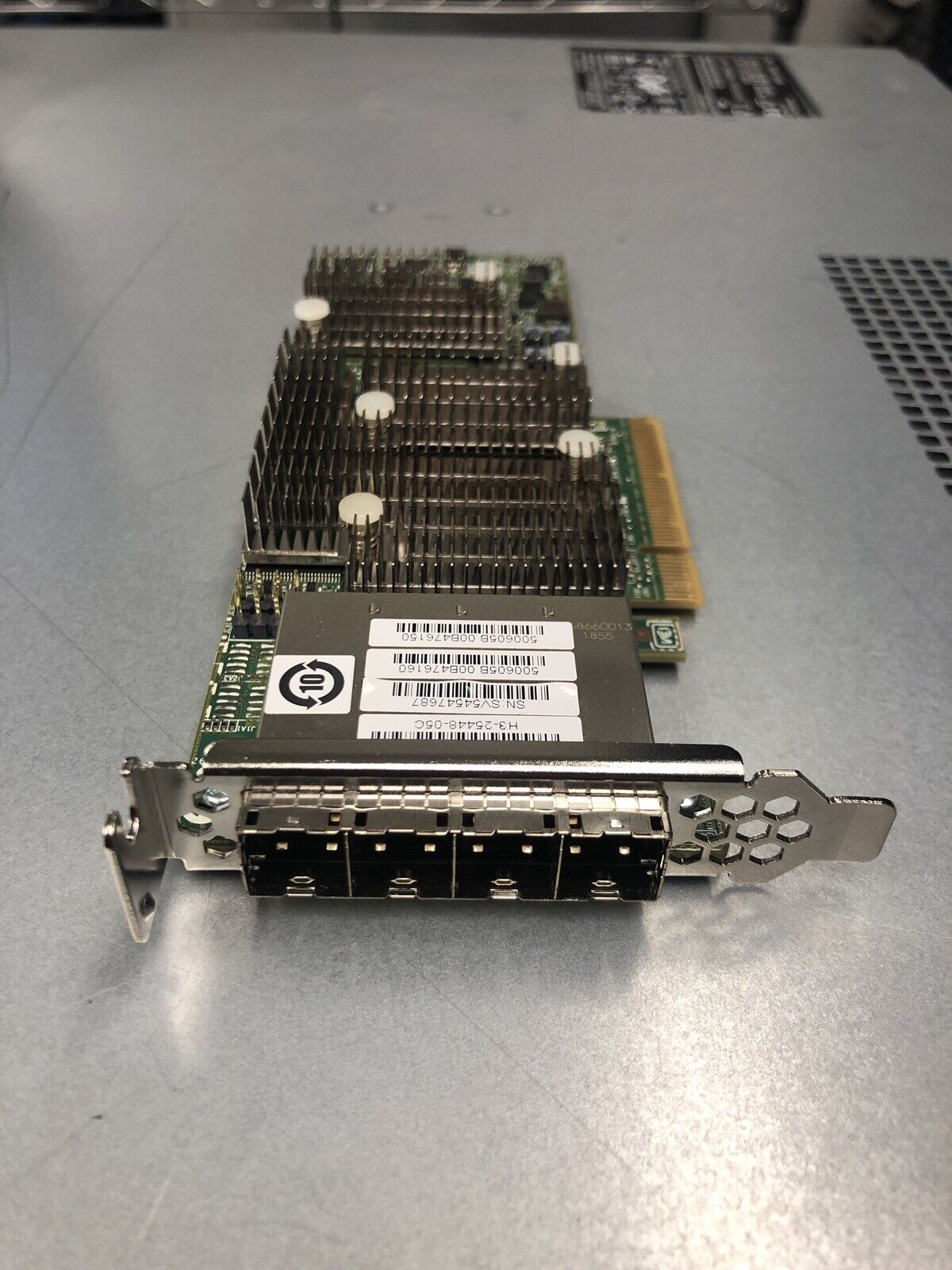

- Four x4 external - mini-SAS HD connectors (SFF8644)
- Two LSI SAS 2308 6Gb/s SAS+SATA Controllers
- Supports up to 1024 SAS or SATA end devices
- Supports SSDs, HDDs and tape drives
Key Advantages
- Maximum connectivity and performance in a low profile form factor
- 8 lanes of PCI Express 3.0 provides faster signaling for high-bandwidth applications
- High performance with 6Gb/s data transfer rates
Specifications:
| SAS 9206-16e Host Bus Adapter | ||
|---|---|---|
| I/O Controller | Two, LSISAS2308/ Fusion MPT 2.0 | |
| Storage Connectivity ; Data Transfer Rates | 16 ports; 6Gb/s SAS 2.1 compliant | |
| SAS Bandwidth | Half Duplex 2400MB/s, x4, 6Gb/s SAS lanes |
|
| Port Configurations | 16 ea, x1 ports (individual drives) 4 ea, x4 wide ports 2ea , x8 wide ports |
|
| Host Bus | x8 lane, PCI Express 3.0 compliant | |
| PCI Data Burst Transfer Rates | Half Duplex 8000MB/s, x8, PCIe 3.0 |
|
| Physical Dimensions | 68.90 x 167.65 mm | |
| Connectors | Four (x4) mini-SAS HD external connector (SFF8644) | |
| Brackets | Full height and low profile | |
| Cable Support | Passive Copper, Active Copper, Active Optical | |
| PCI Card Type | 3.3 V Add-in Card | |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% | |
| PCI Power (Nominal) | 25.8W | |
| Device Support | 1024 SAS/SATA devices | |
| Environmental | Operating | Storage |
| 0°C to 55°C 5 to 90% Non-condensing |
-45°C to 105°C 5 to 90% Non-condensing |
|
| MTBF | >1,300,000 hours | |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE |
|
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD | |
LOC:OFC-ST-R16-S5
