Description

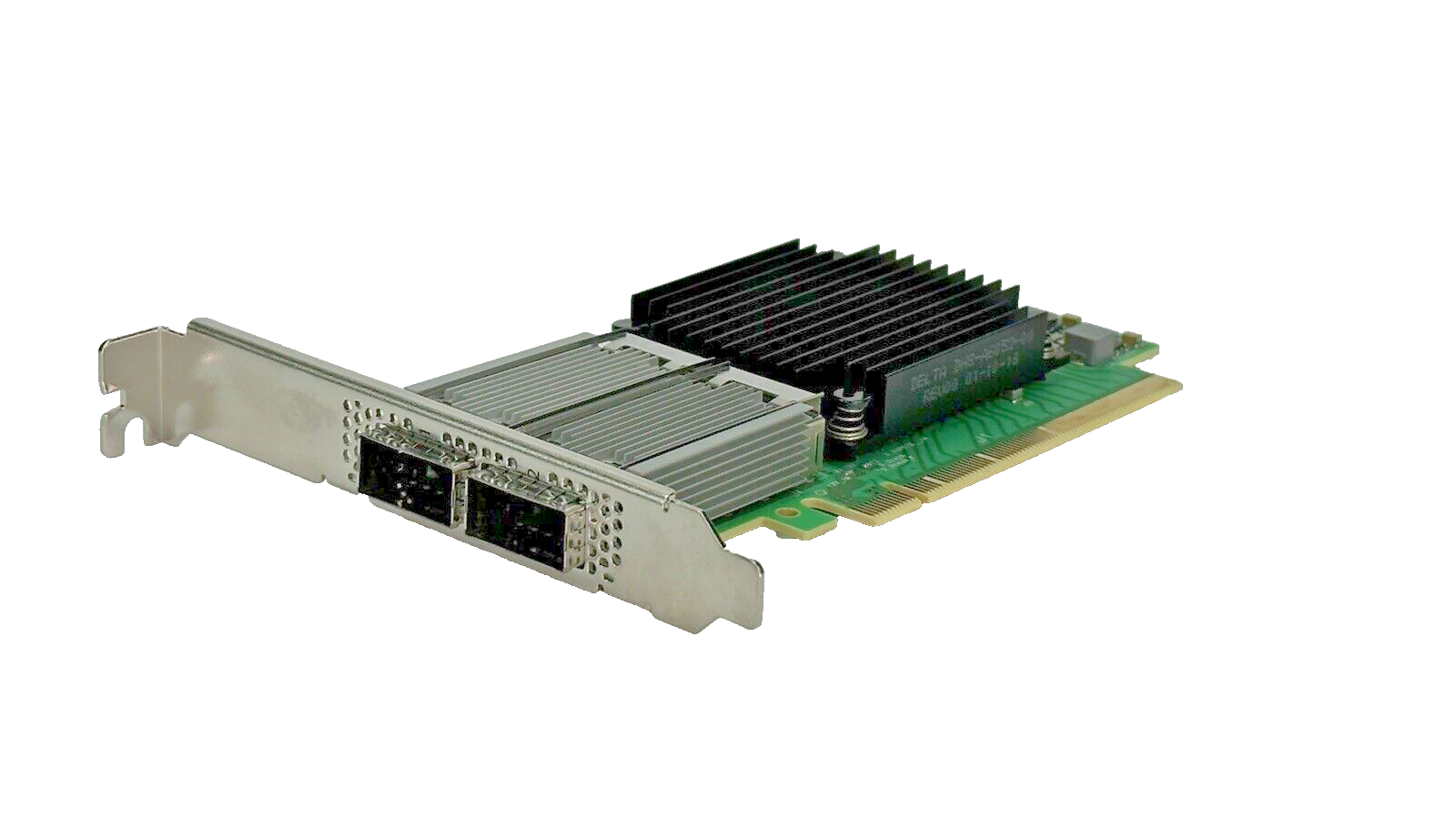

Mellanox nVidia ConnectX-5 Dual Port QSFP28 network adapter
|
Physical |
Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile Connector: Dual QSFP28 (copper and optical) |
|
||
|
Protocol Support |
Ethernet: 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X Data Rate: 1/10/25/40/50 Gb/s Ethernet PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) |
|
||
|
Power and Airflow |
Voltage: 12V |
|
||
|
Power |
Cable Type |
|
|
|
|
Typical Power(a) |
Passive Cable |
14.7W |
|
|
|
Maximum Power |
Passive Cable |
17.2W |
|
|
|
1.5W Active Cable |
20.6W |
|
||
|
2.5W Active Cable |
22.8W |
|
||
|
Maximum power available through QSFP28 port: 3.5W |
|
|||
|
Airflow |
||||
|
Environmental |
Temperature |
Operational |
0°C to 55°C |
|
|
Non-operational |
-40°C to 70°C |
|||
|
Humidity |
Operational |
10% to 85% relative humidity |
||
|
Non-operational |
10% to 90% relative humidity |
|||
|
Altitude (Operational) |
3050m |
|||
|
Regulatory |
Safety |
CB / cTUVus / CE |
|
|
|
EMC |
CE / FCC / VCCI / ICES / RCM |
|
||
|
RoHS |
RoHS-compliant |
|
||
