SupermicroSKU: 107112574
Price:
$859.00

Description

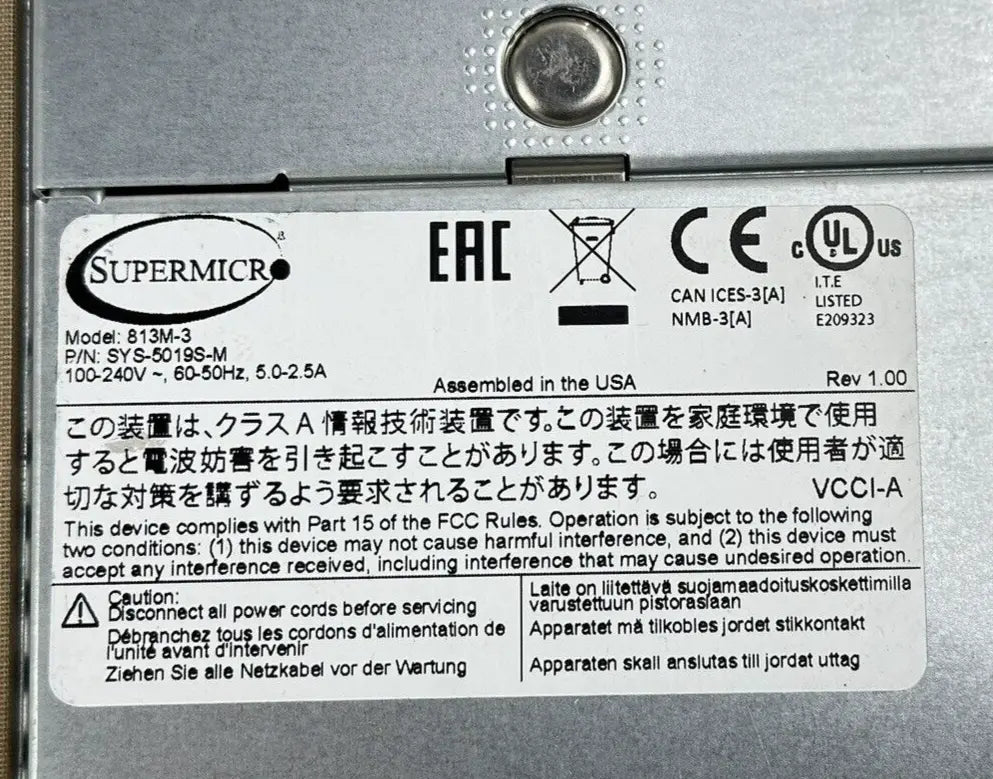

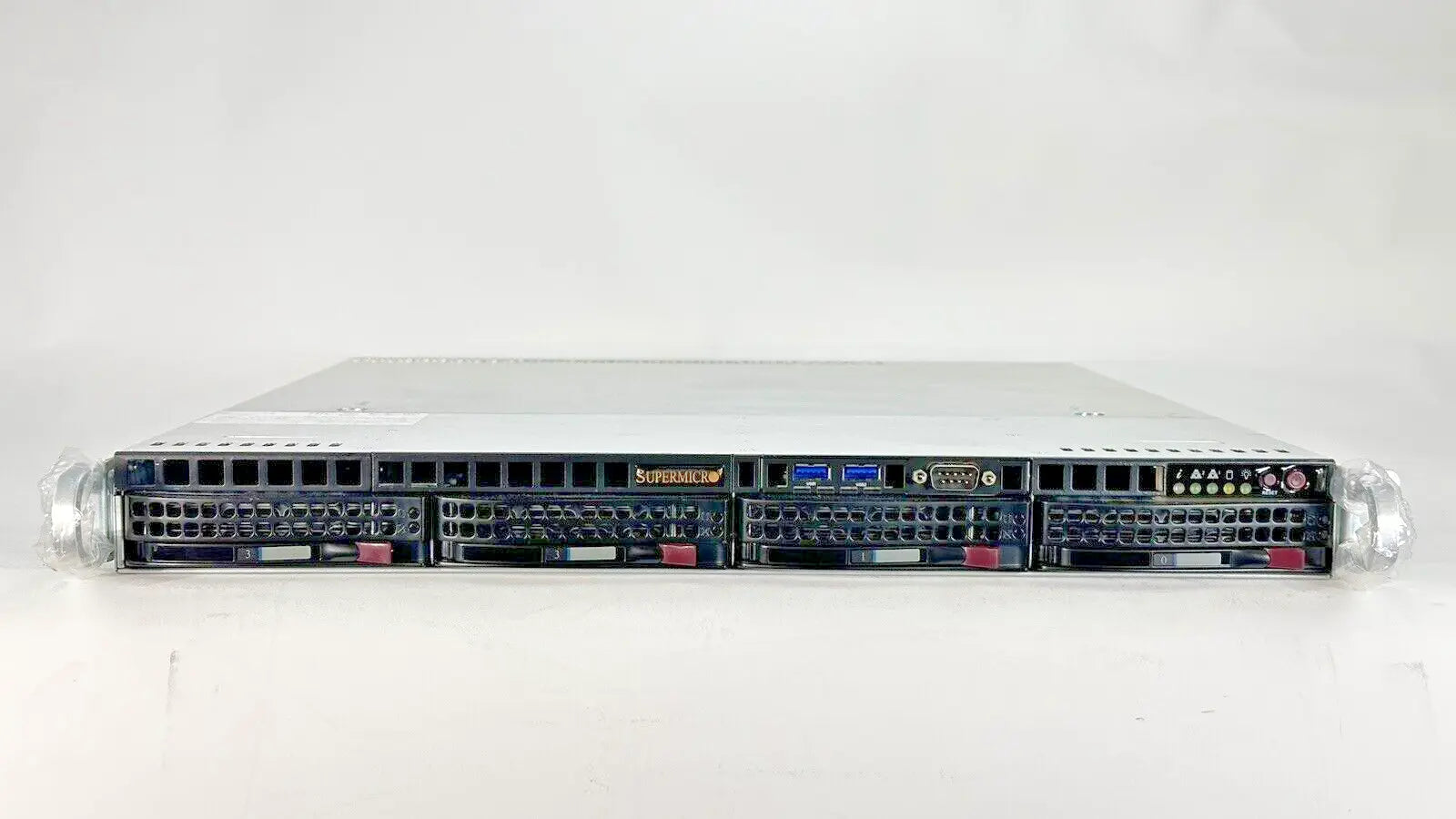

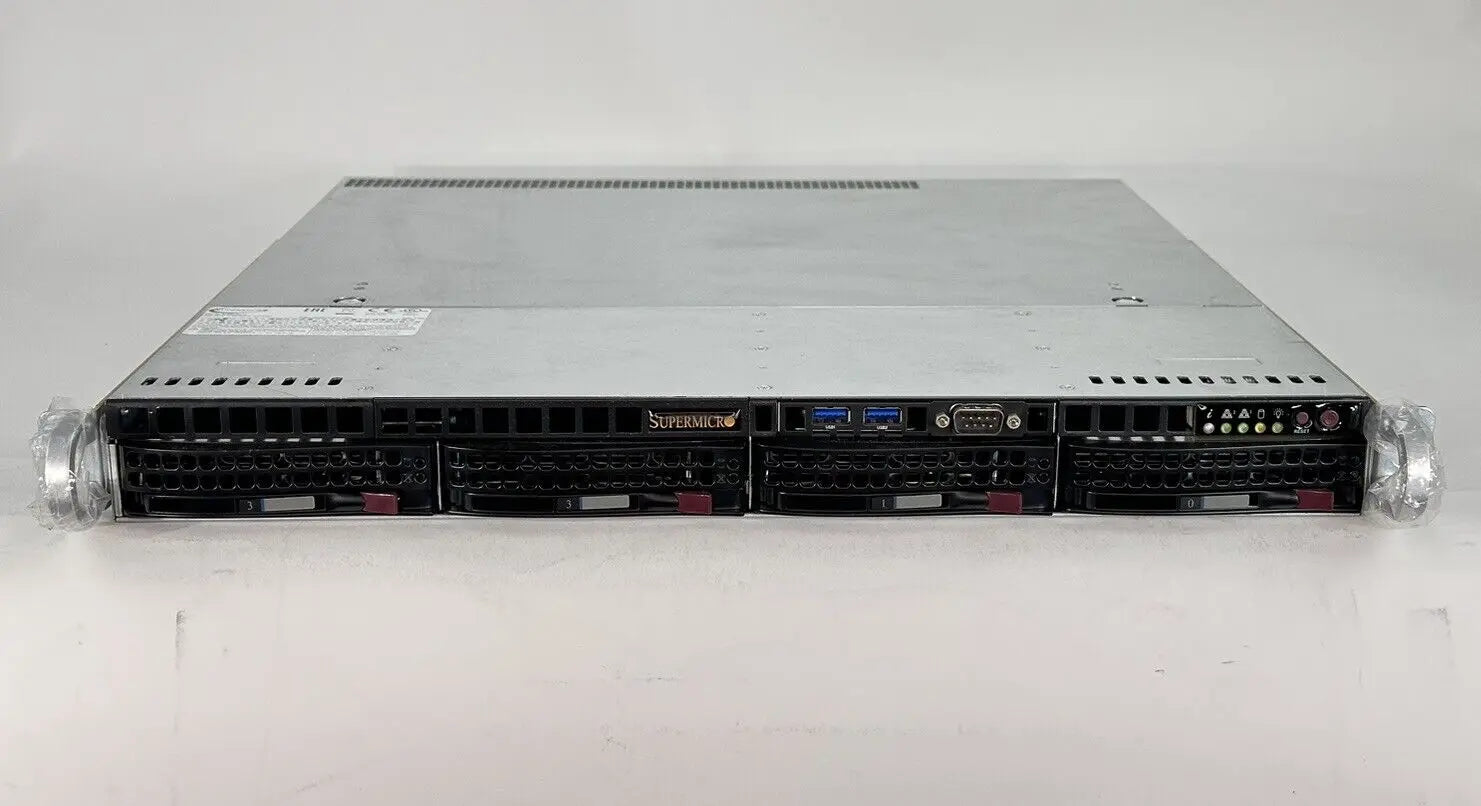

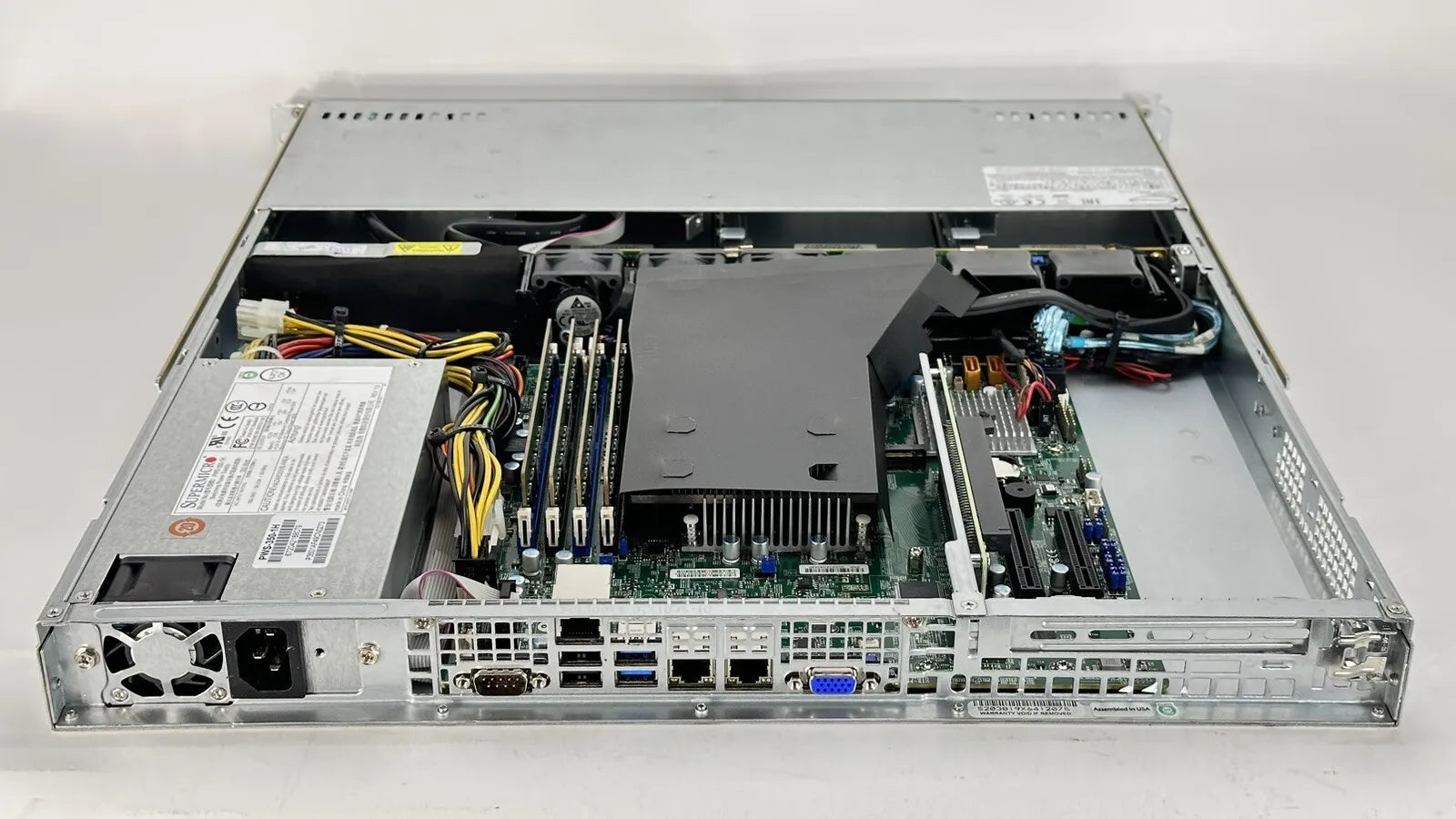

SuperMicro SuperServer SYS-5019S-M Server

Rail kit is included

Config is below

We can install any of the Open Source operating systems or hypervisors, reconfigure to spec and ship configured. Currently no OS is installed, any installations will be done upon request and will be billed separately

Additional adapters/network cards etc can be added via 1x PCI-e slot, please inquire.

4x drive bays are available for installation of additional drives, 2.5 or 3.5"
SAS drives can be used if raid adapter is installed

Config:

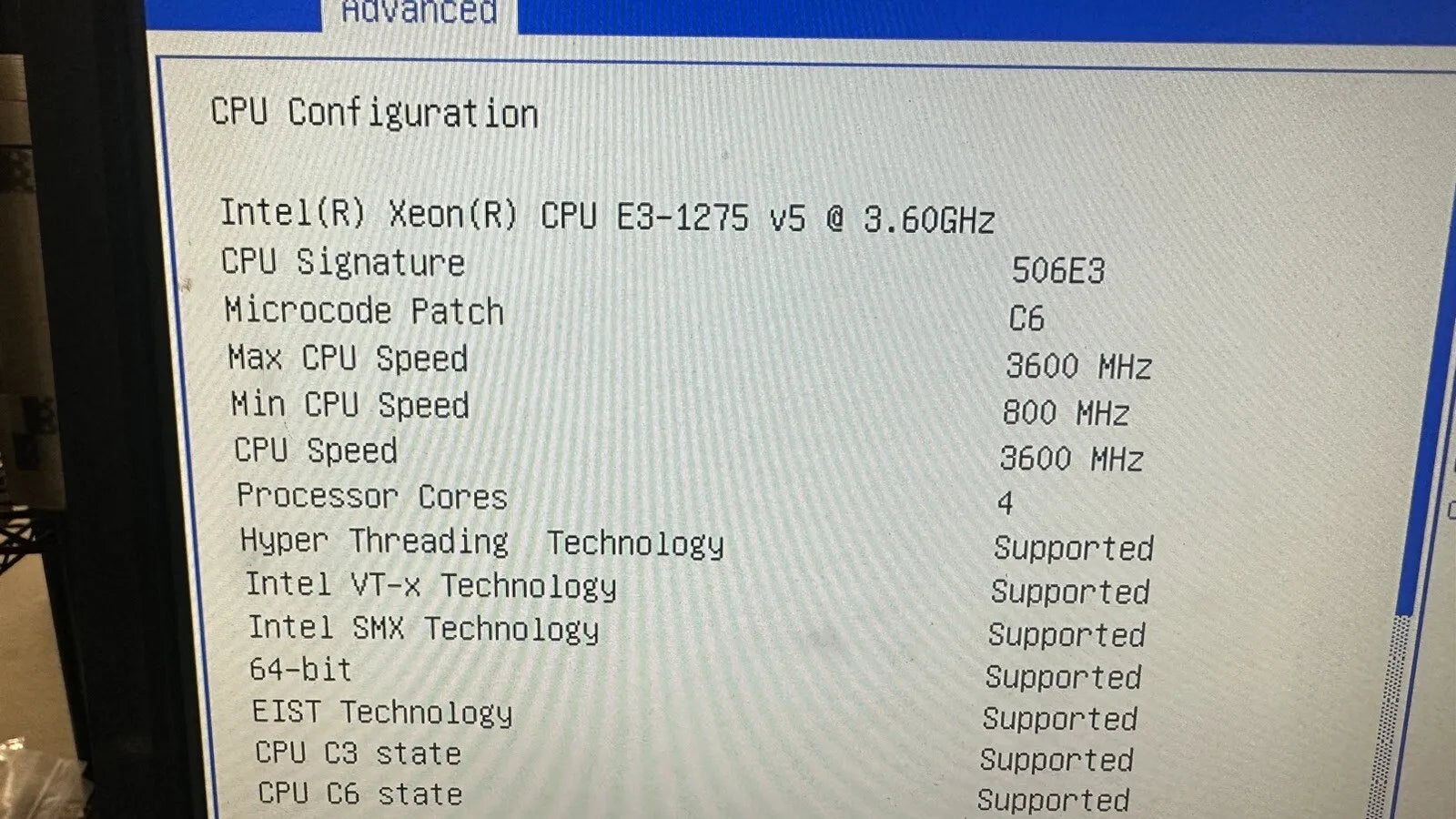

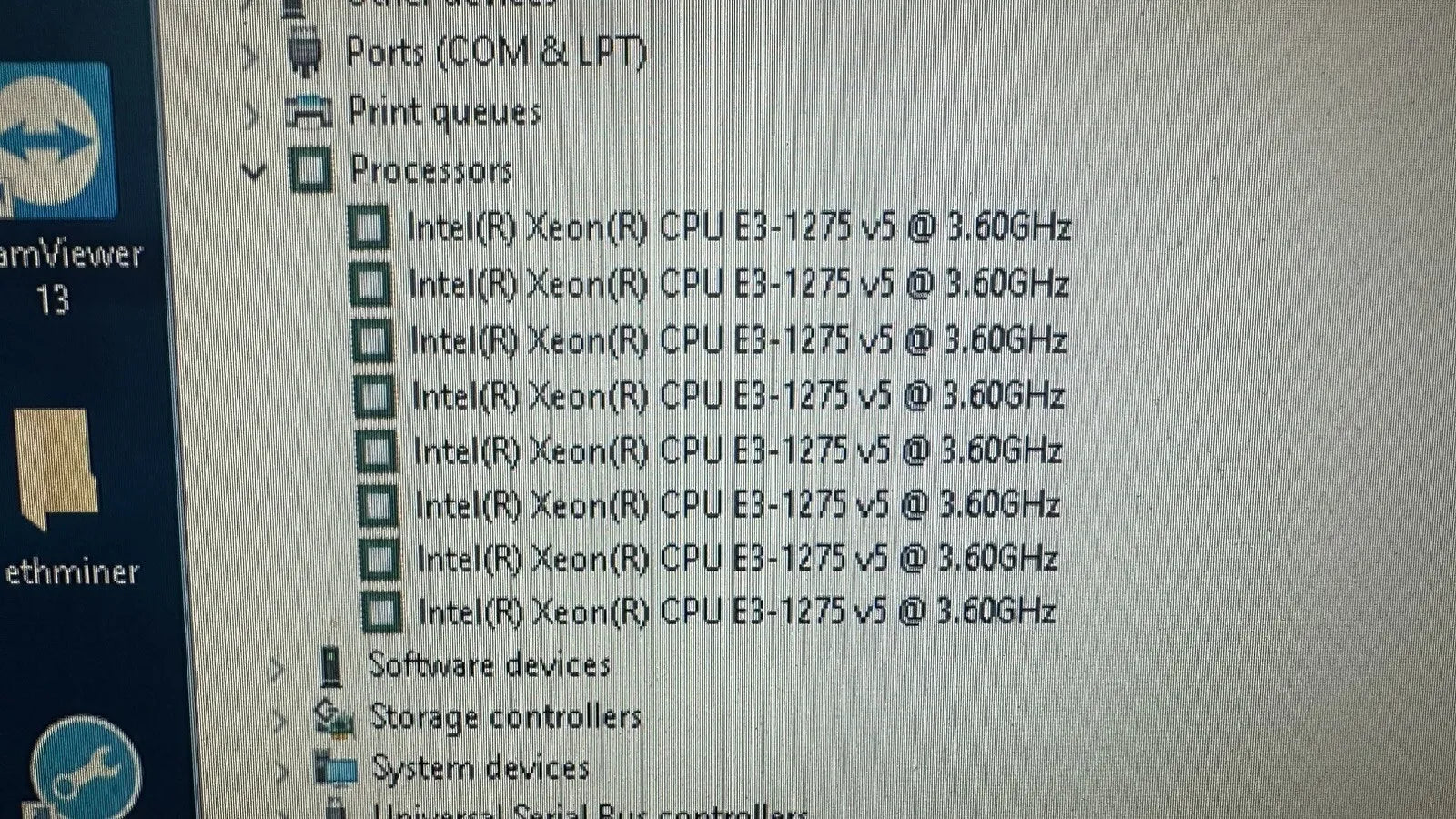

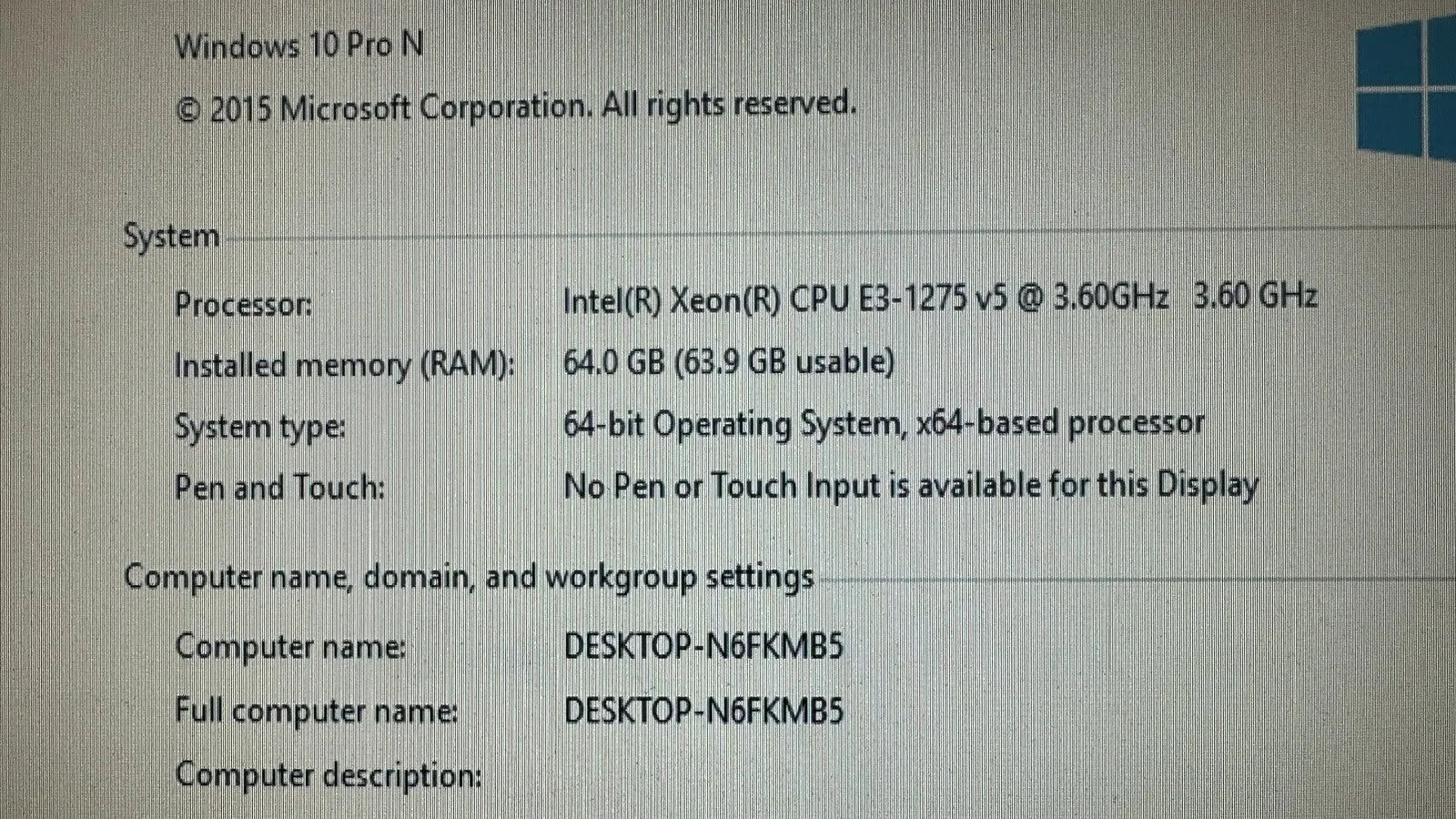

Intel Xeon E3-1275 V5 4 Core/8 Threads 3.6 - 4.0 GHz CPU

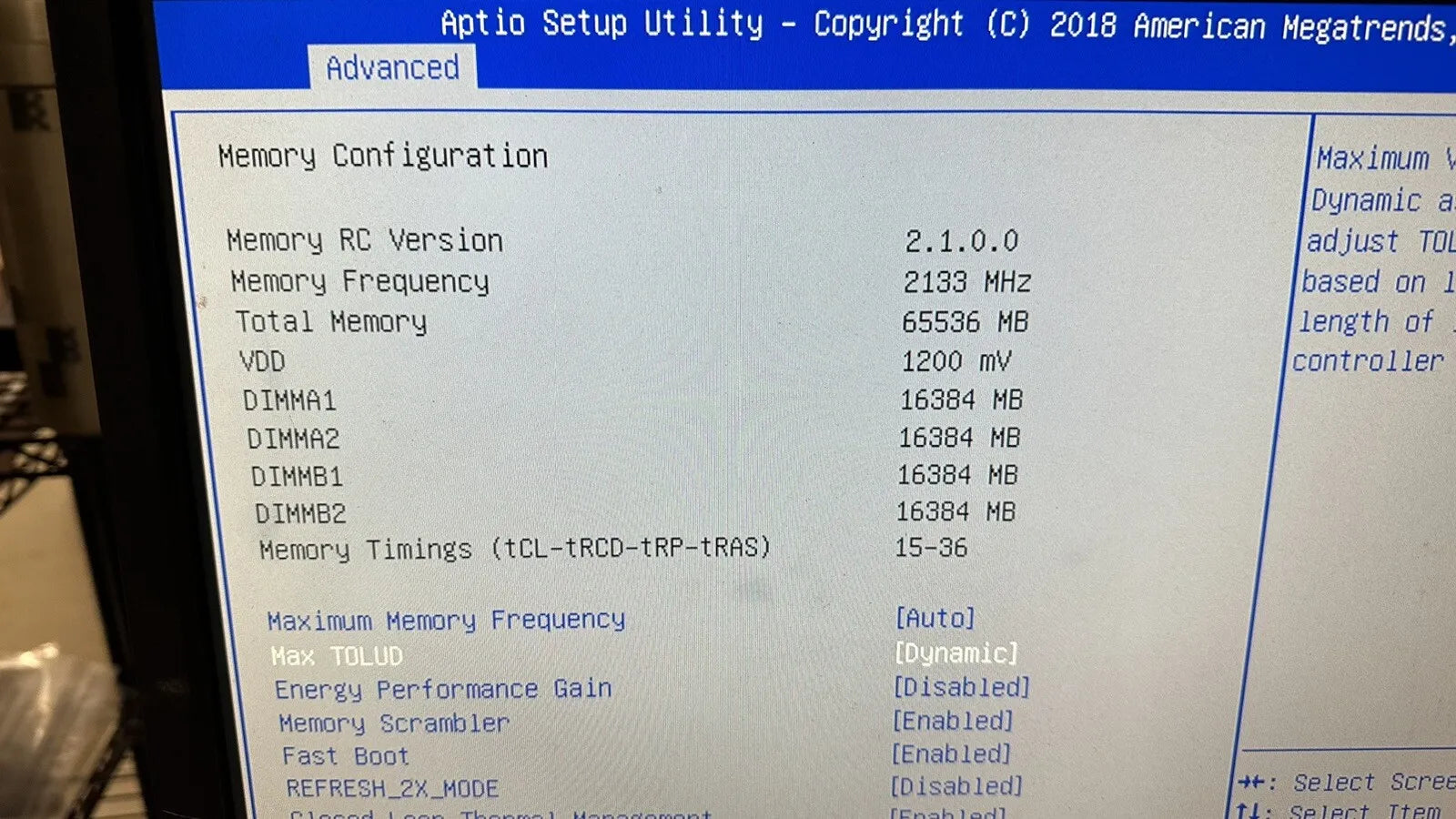

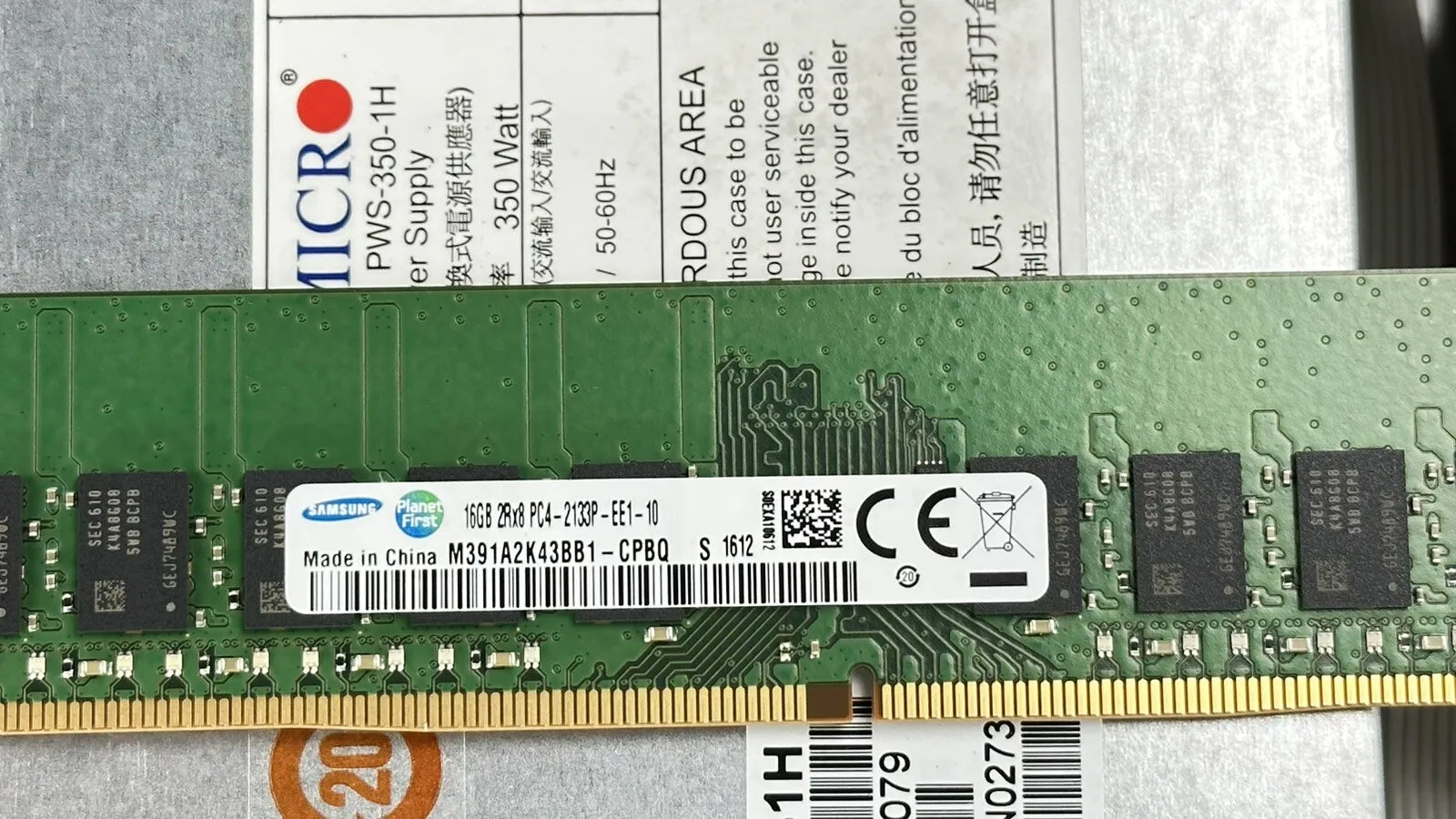

64GB DDR4 ECC RAM (4x 16GB 2133MT/s ECC Unbuffered DIMMs)
1x 256GB PCI-e NVMe M.2 SSD

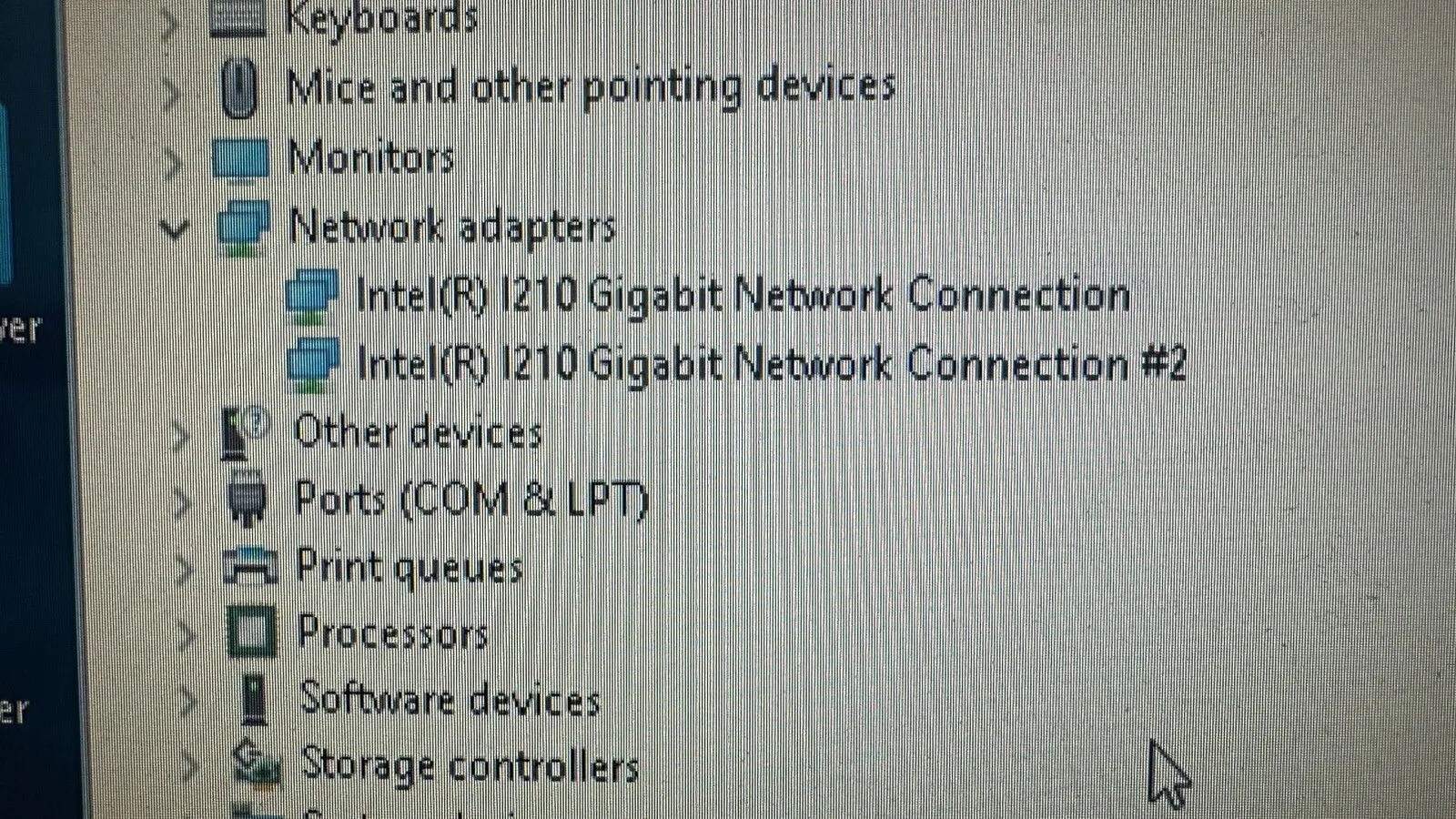

2x 1GbE RJ45 NIC Intel i210-AT
1x 350W Platinum PSU
1x PCI-e 3.0 Slot x16 (x8 signal)

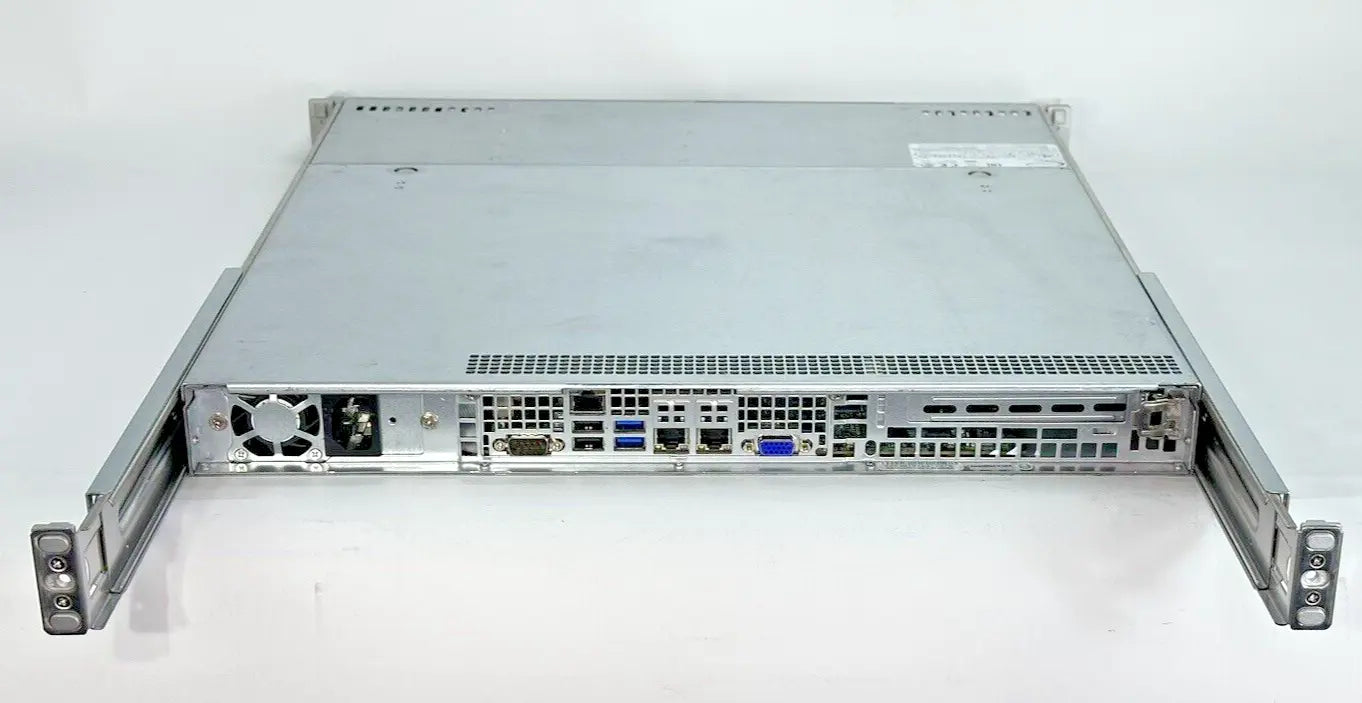

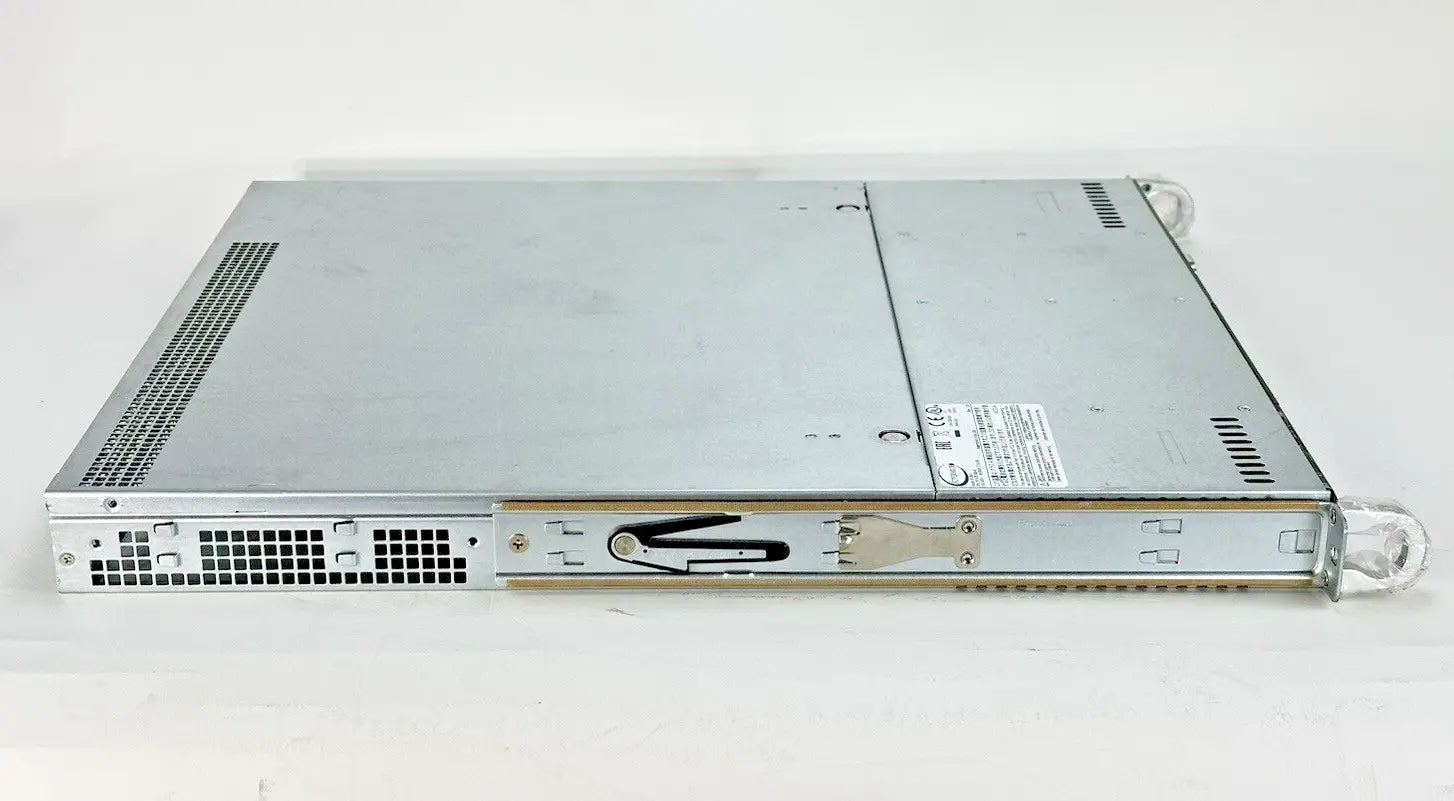

Sliding rack mount rail kit

We can modify configuration to spec, please inquire

Thank you

Manufacturer Specs:

Product SKUs
SYS-5019S-M
  • SuperServer 5019S-M (Black)
Motherboard

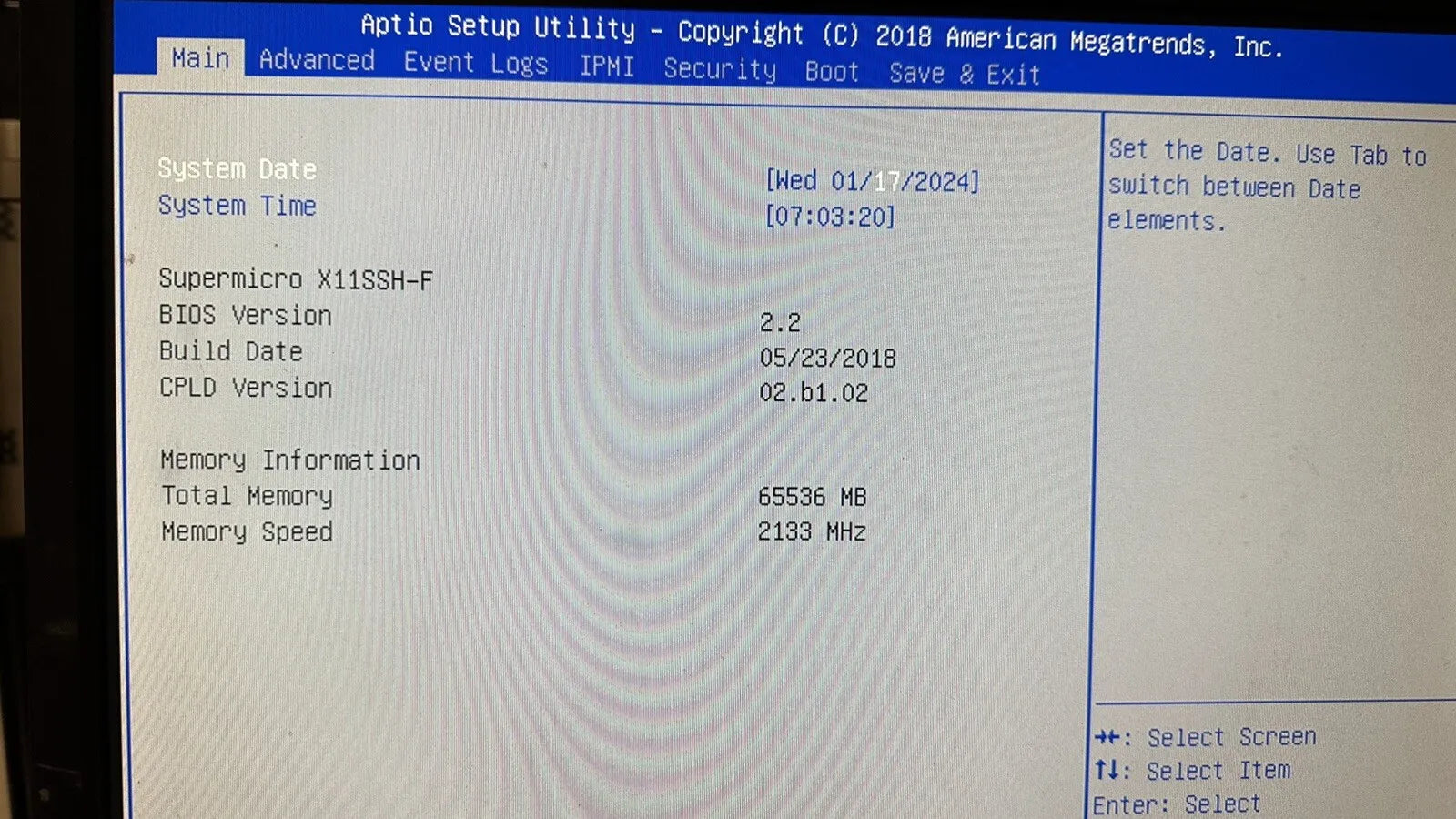

Super X11SSH-F
Processor
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3
  • CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • ASPEED AST2400 BMC

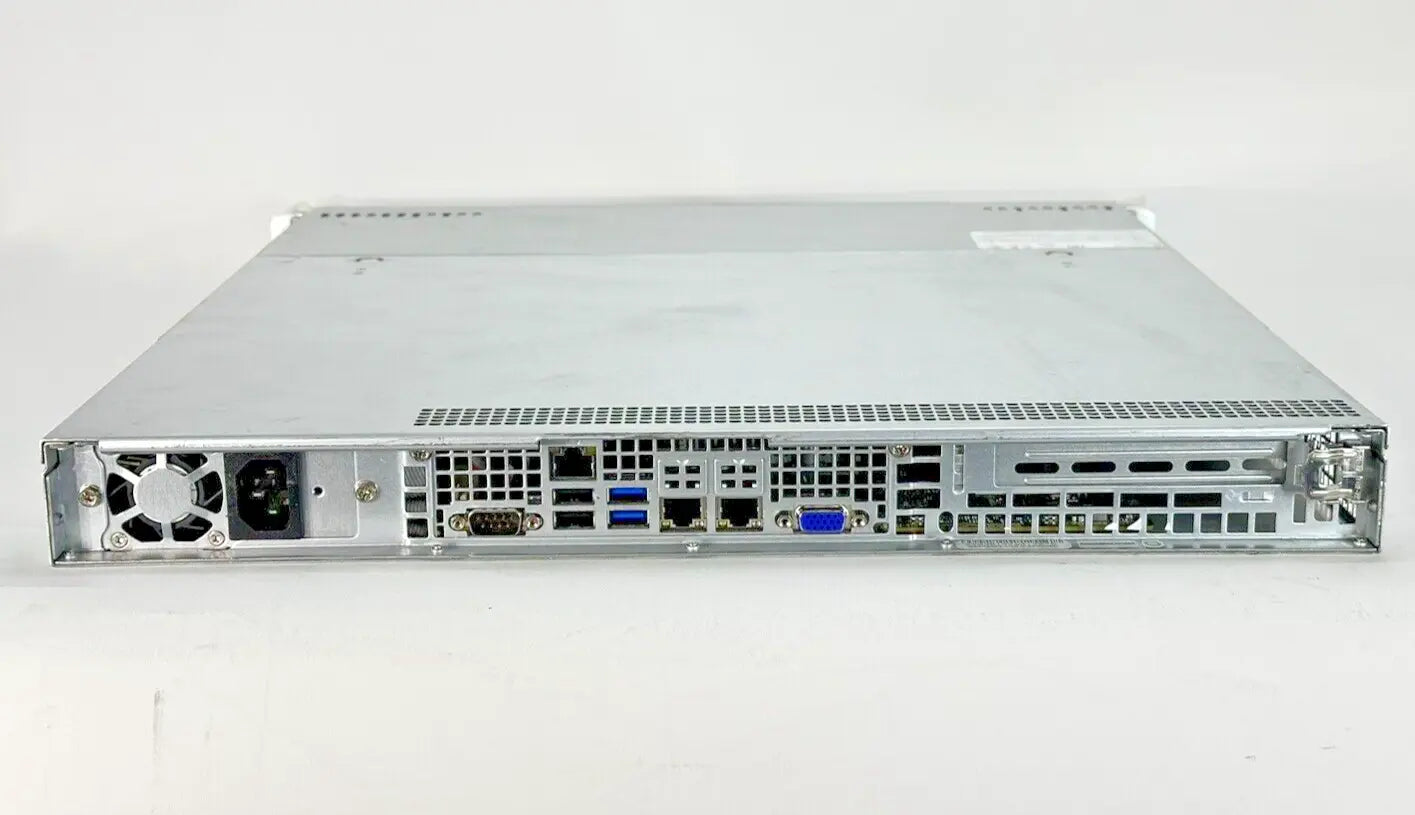

Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • 6 USB 2.0 ports (2 rear + 4 headers)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 front)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS, Halogen Free
Chassis
Form Factor
  • 1U Rackmount
Model
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Colors
  • Black

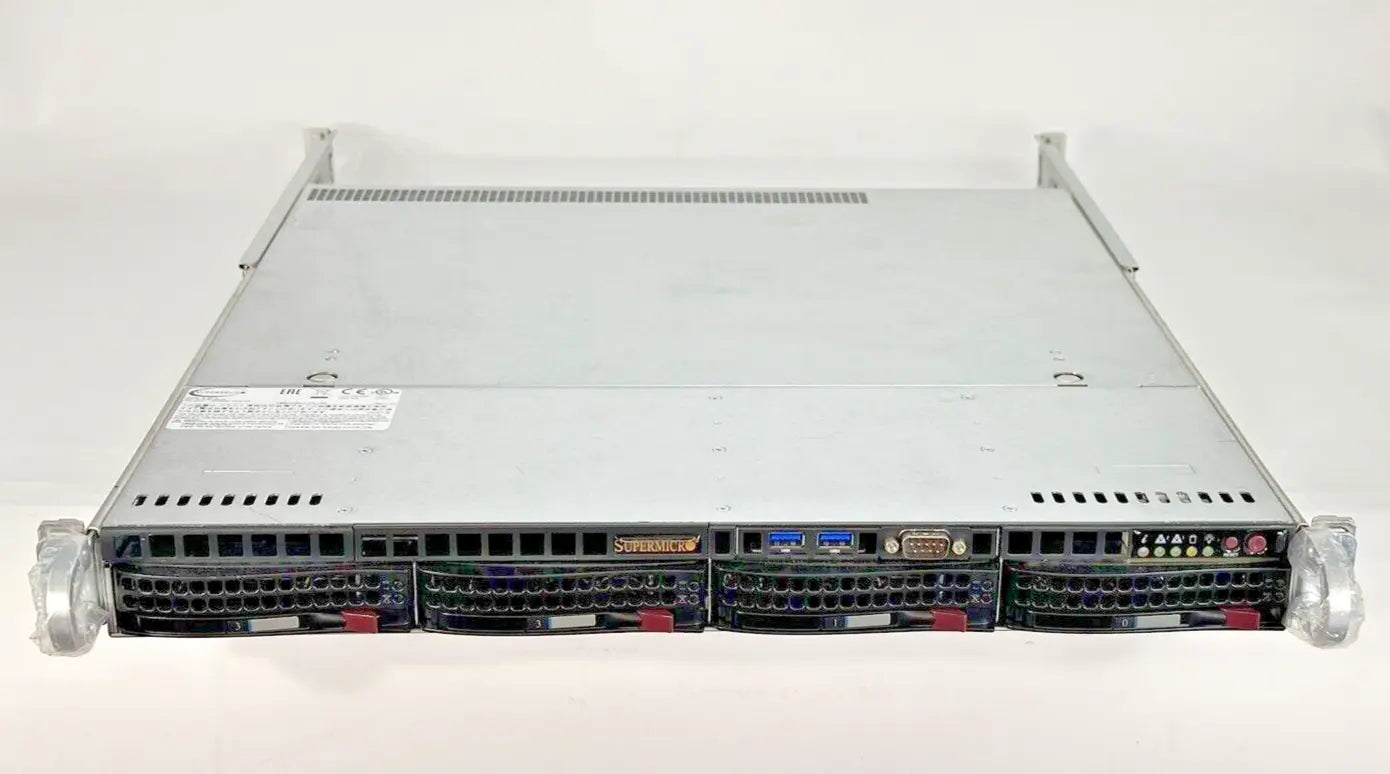

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED

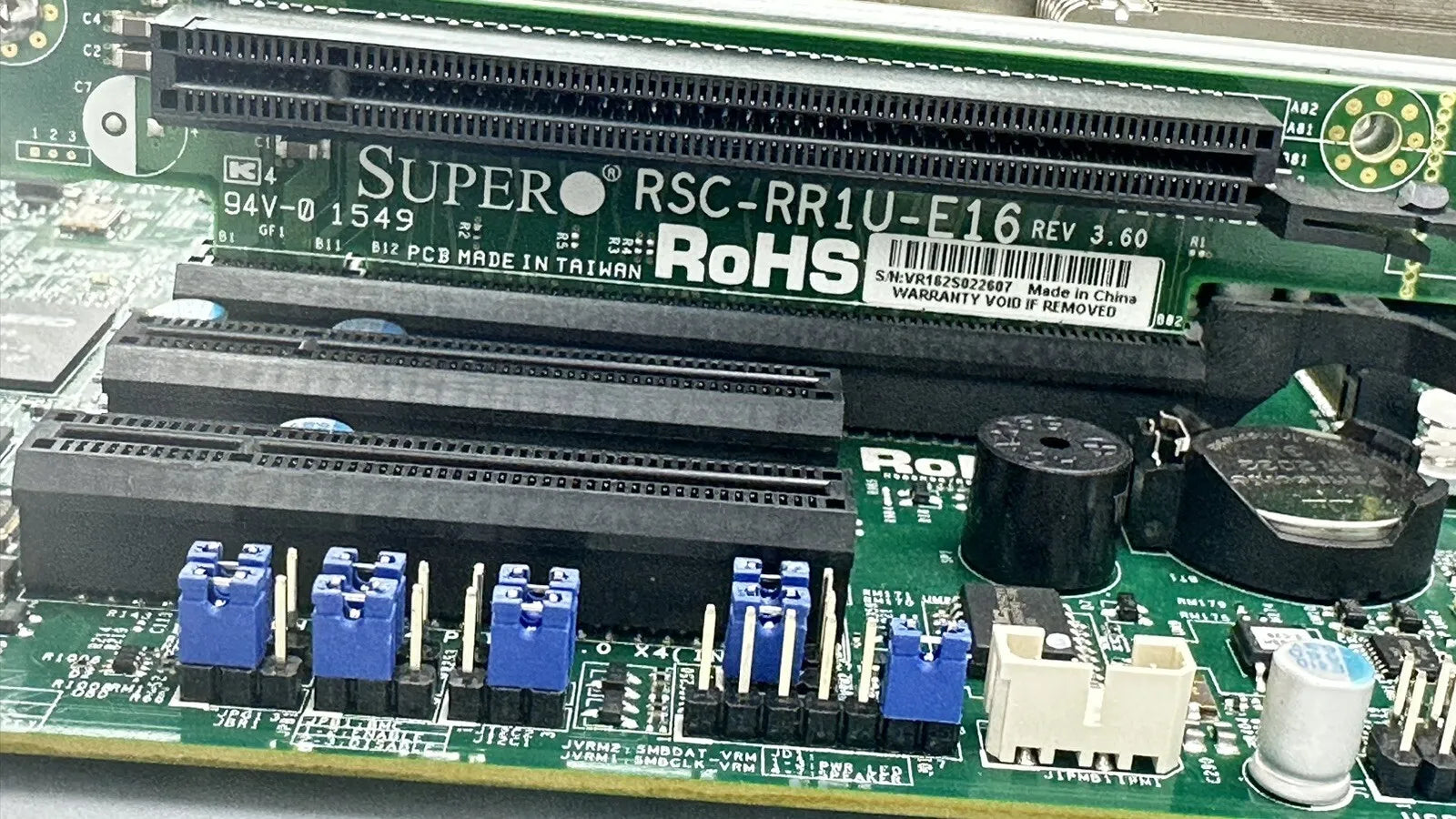

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 (in x16) AOC slot
M.2
  • 1x M.2 Interface: PCI-E 3.0 x2
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector
Drive Bays
Hot-swap

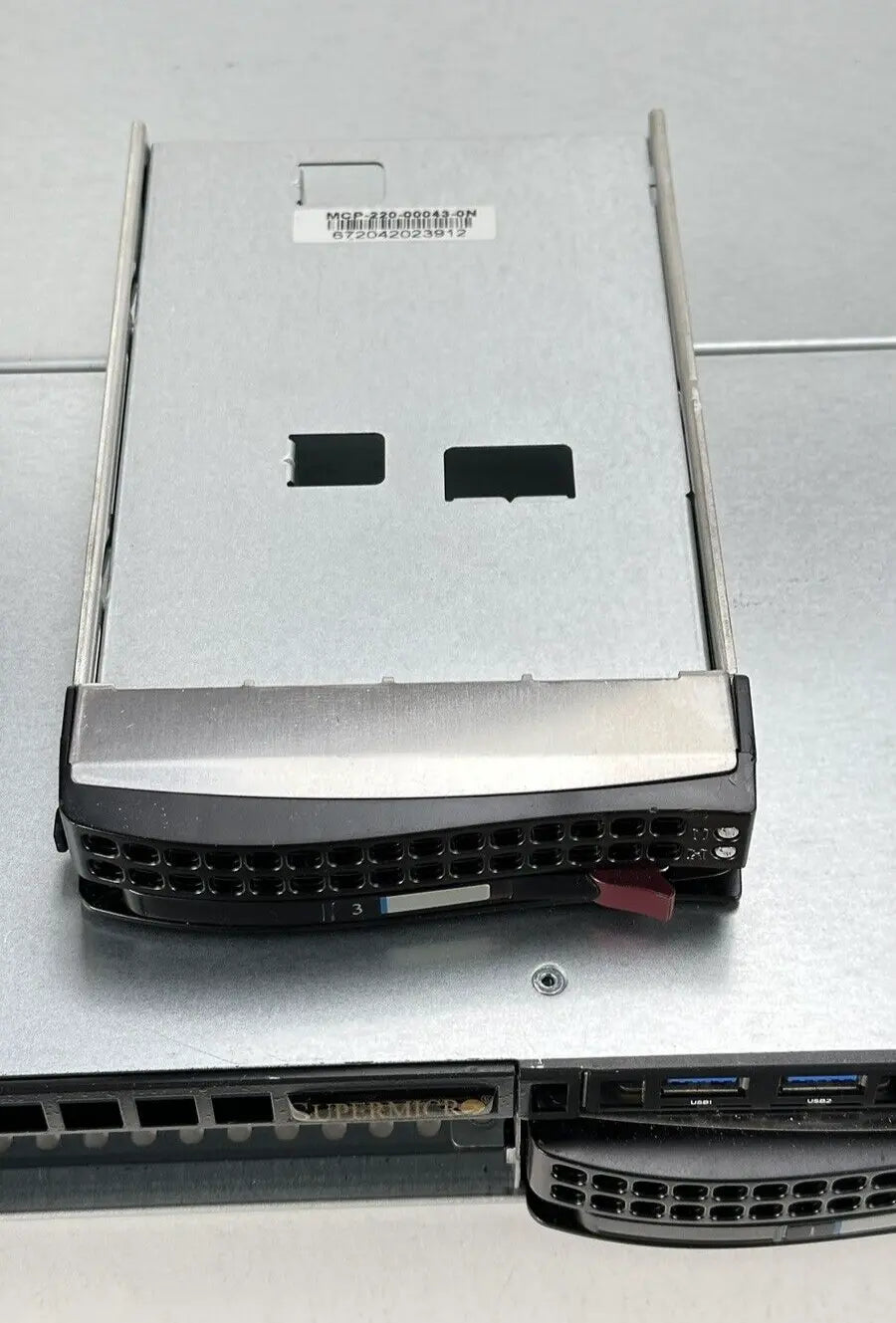

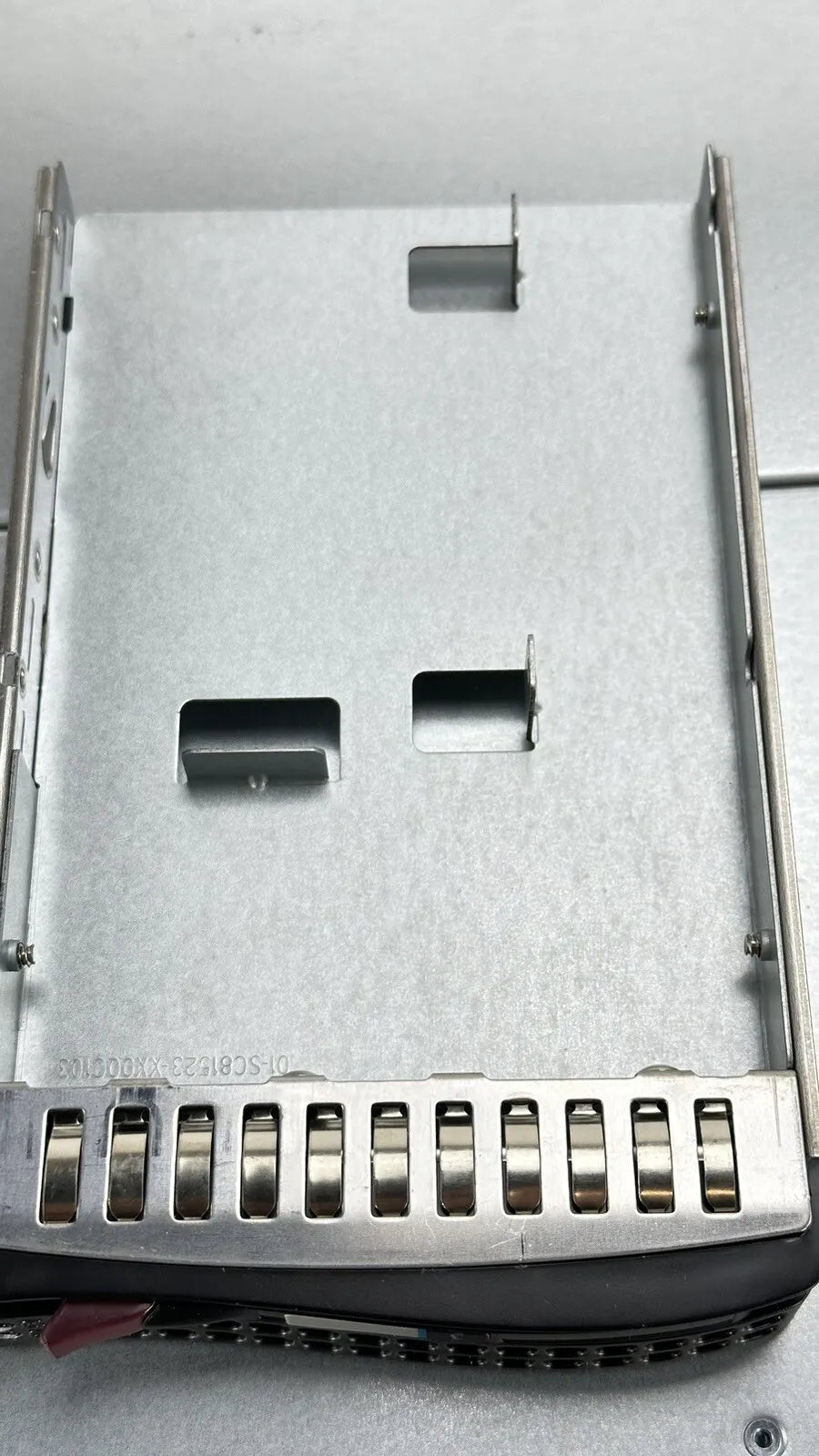

  • 4 Hot-swap 3.5" SATA3 drive bays
Peripheral Drives
Optional
  • 2 Fixed 2.5" internal drives

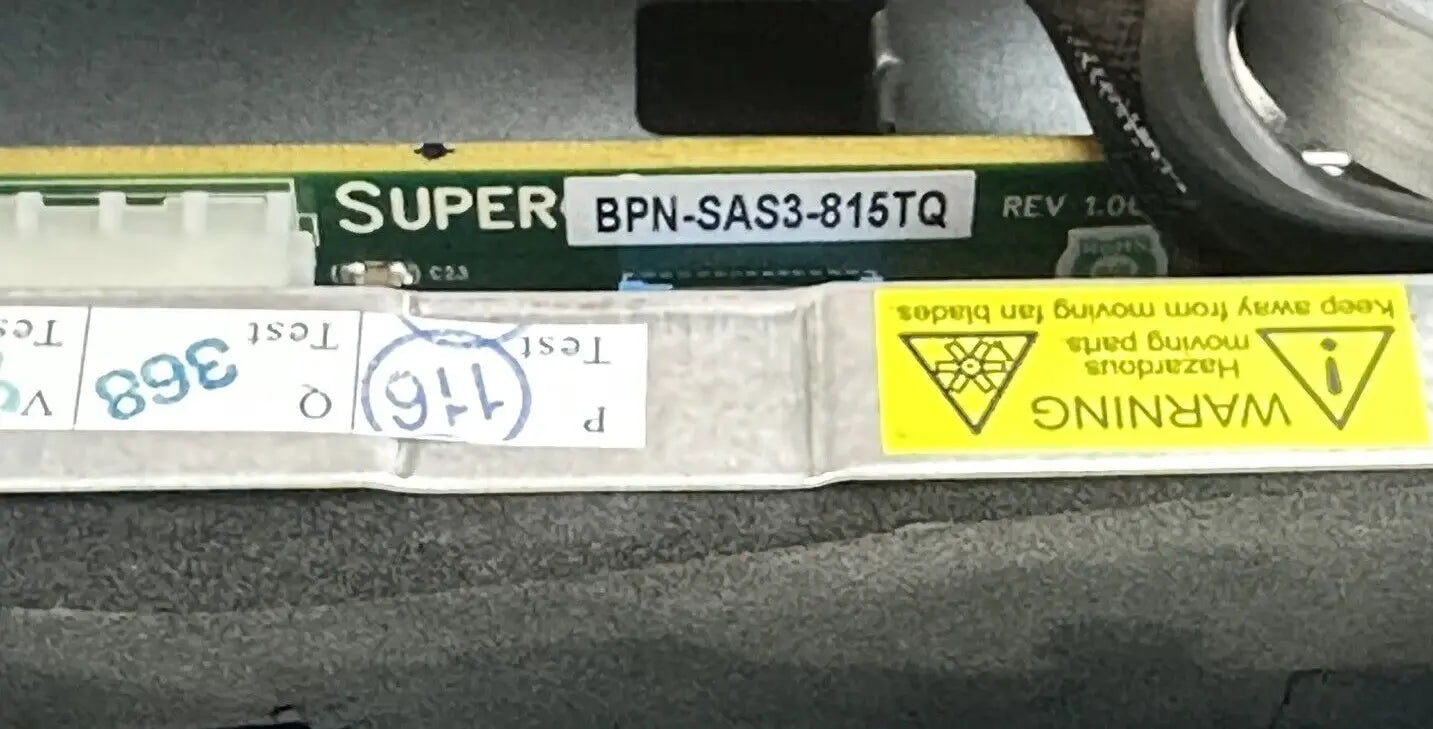

Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)
System Cooling
Fans
  • 4x 40x28mm 4-pin PWM Cooling Fans
  • Optional 1x 40x28mm PWM fan

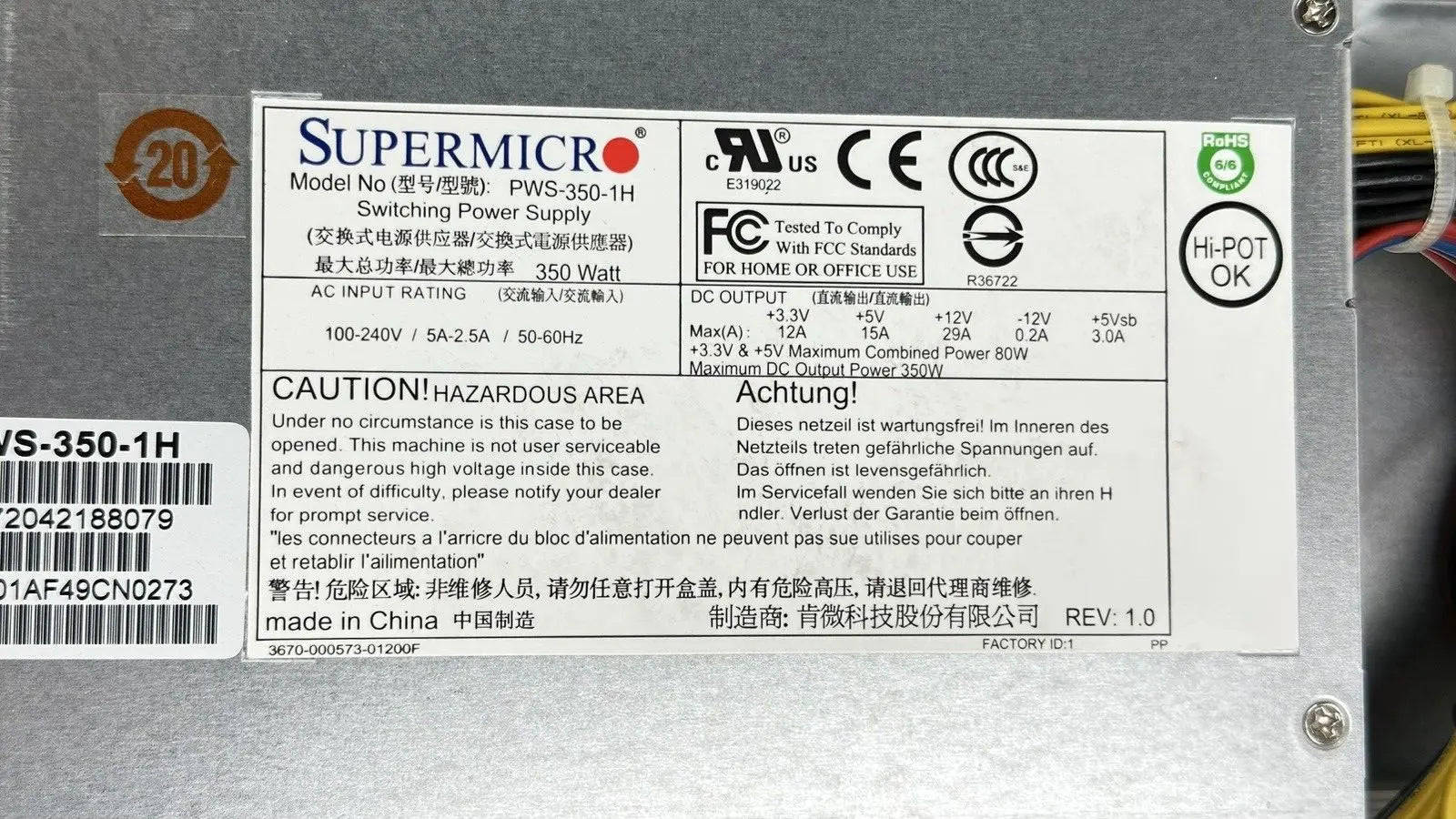

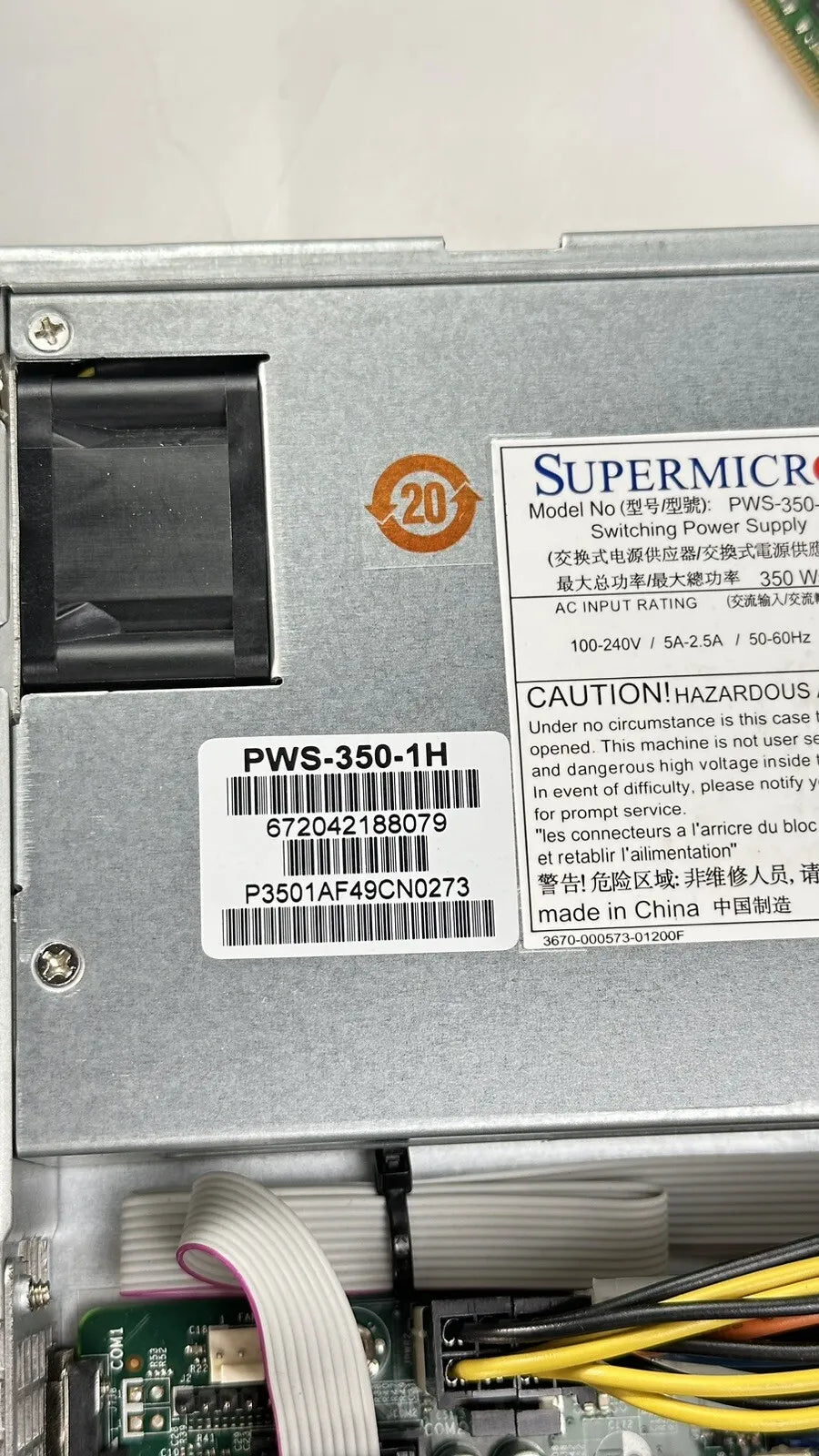

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
Certification Platinum Level Certified    Platinum Level Certified
  [ Test Report ]
System BIOS
BIOS Type
  • 8MB SPI Flash EEPROM with AMI BIOS
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
