SupermicroSKU: 170112501
Price:
$948.00

Description

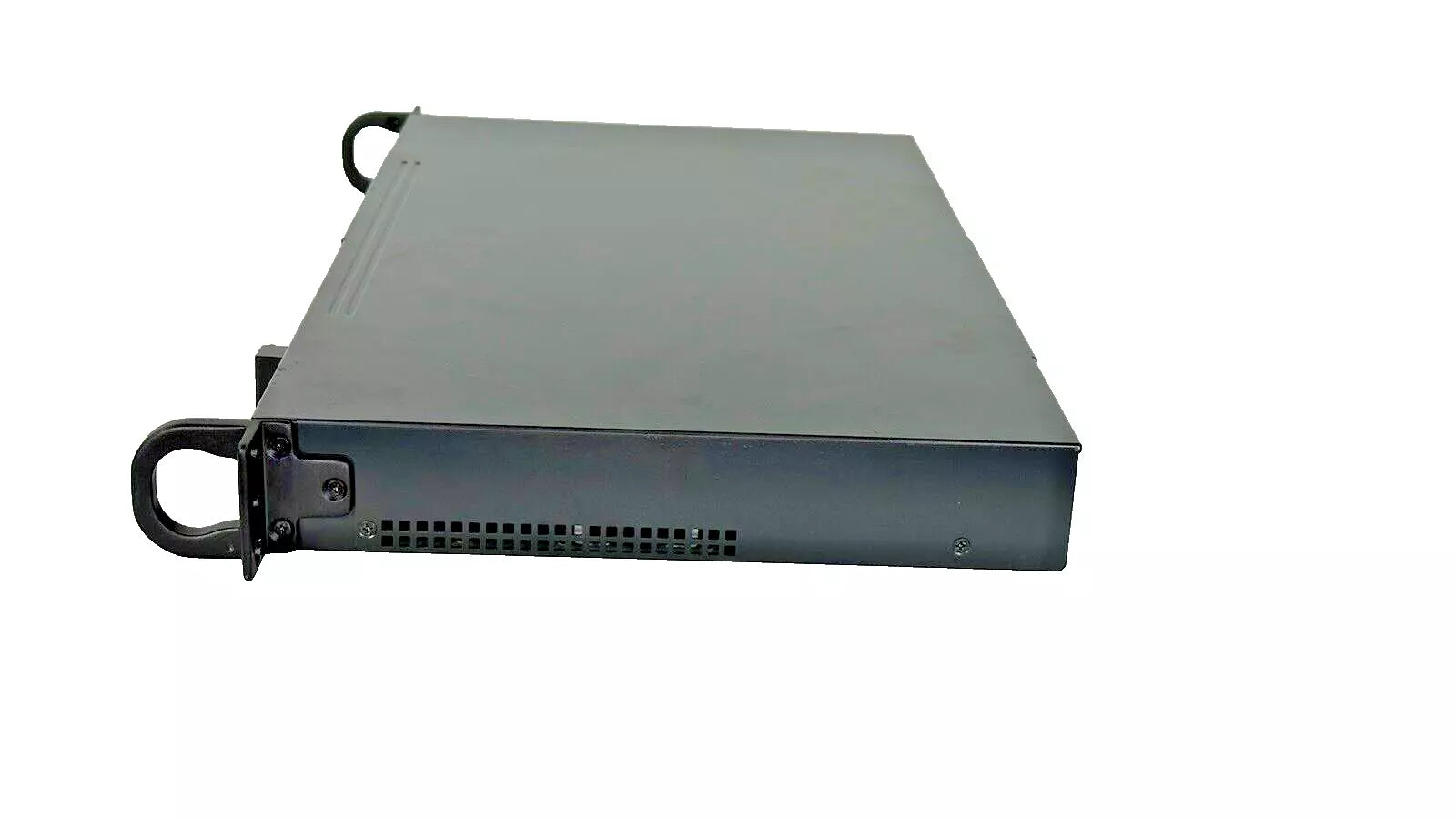

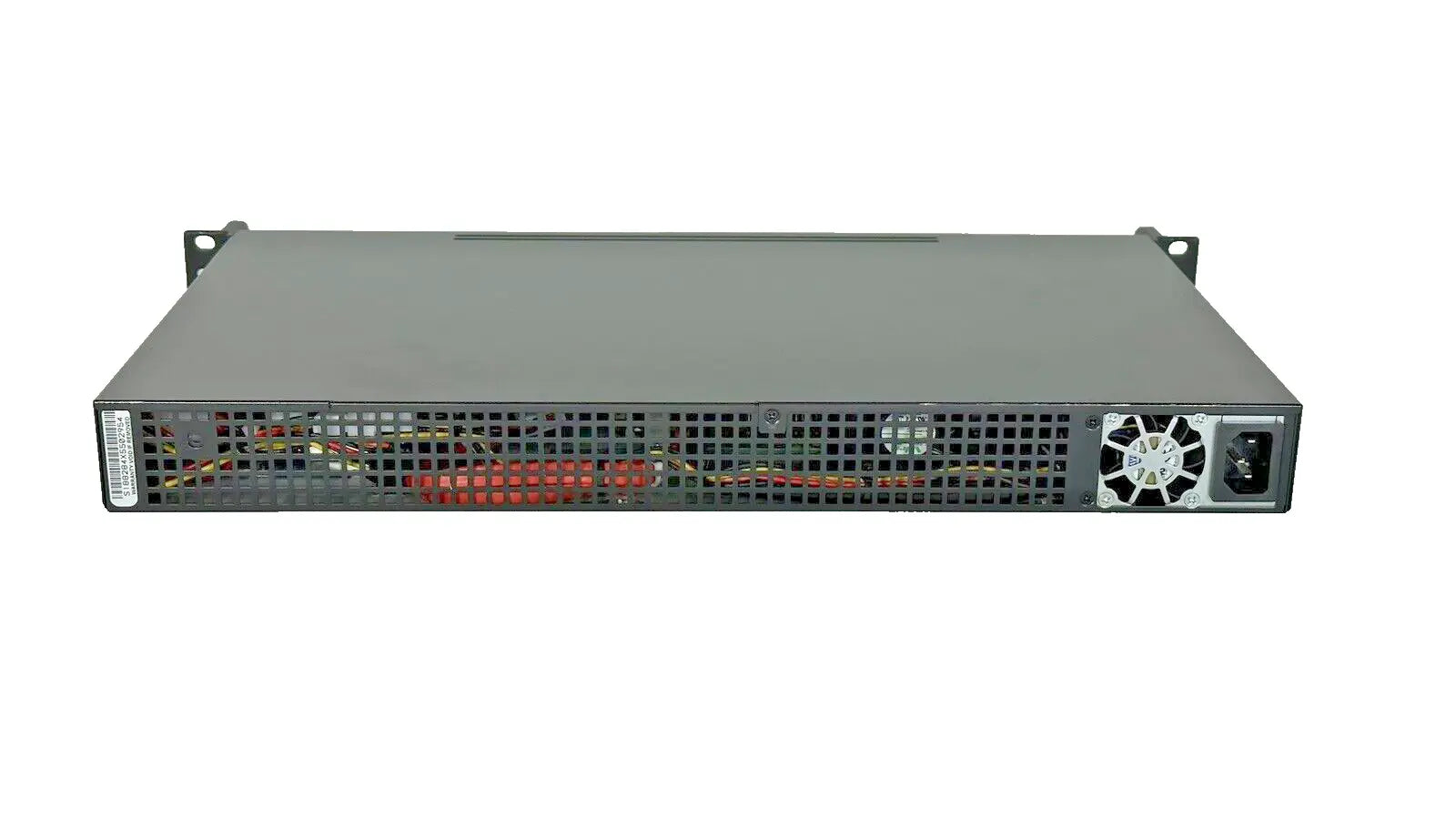

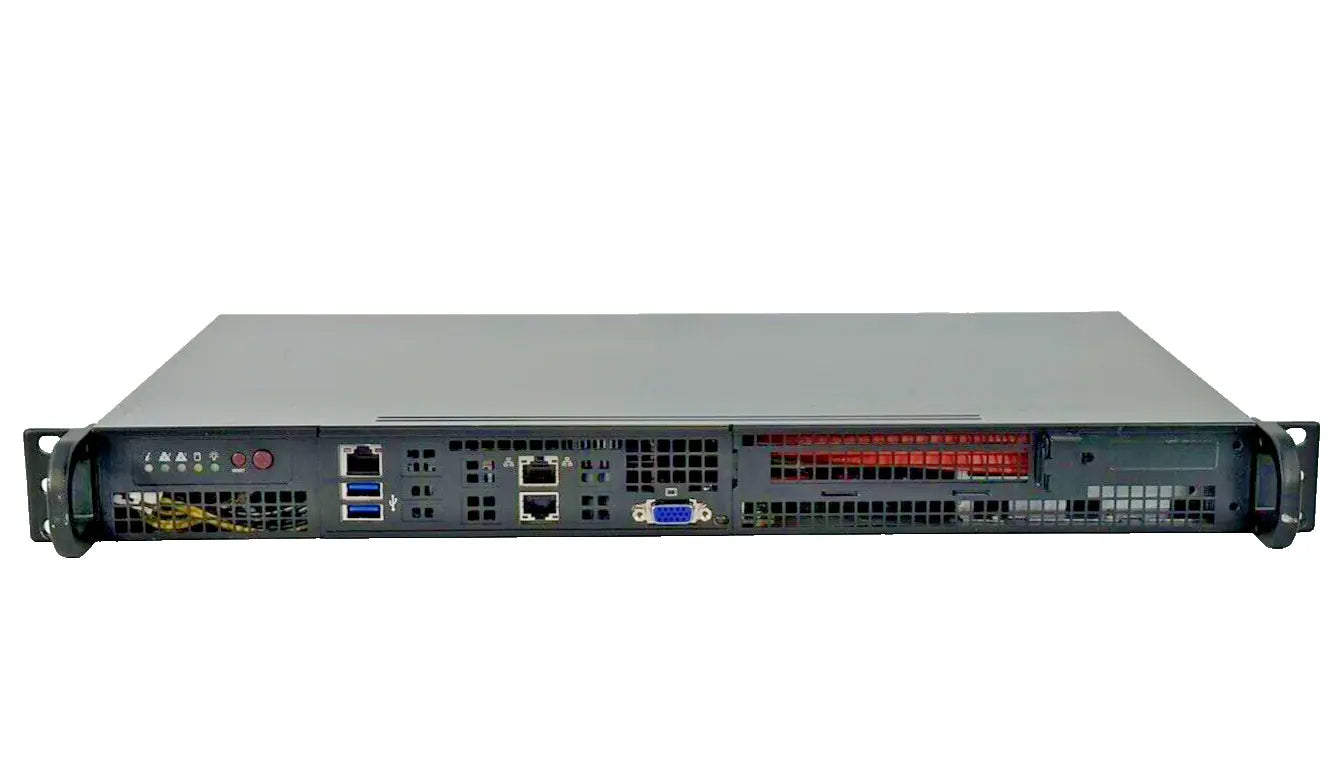

SuperMicro Server based on X10SDV-F motherboard in 505-203B chassis

Similar in config to SuperServer 5018D-FN4T except for network ports and no riser:
2x 1GbE RJ45 network ports (Motherboard is X10SDV-F), no 10GbE ports

This server is very small 1U chassis, do not need rail kit, can be held by screws in the rack. Depth in 9.8 inches

Config is below

We can install any of the Open Source operating systems or hypervisors, reconfigure to spec and ship configured. Currently no OS is installed, any installations will be done upon request.

Installation costs will be billed separately

Config:

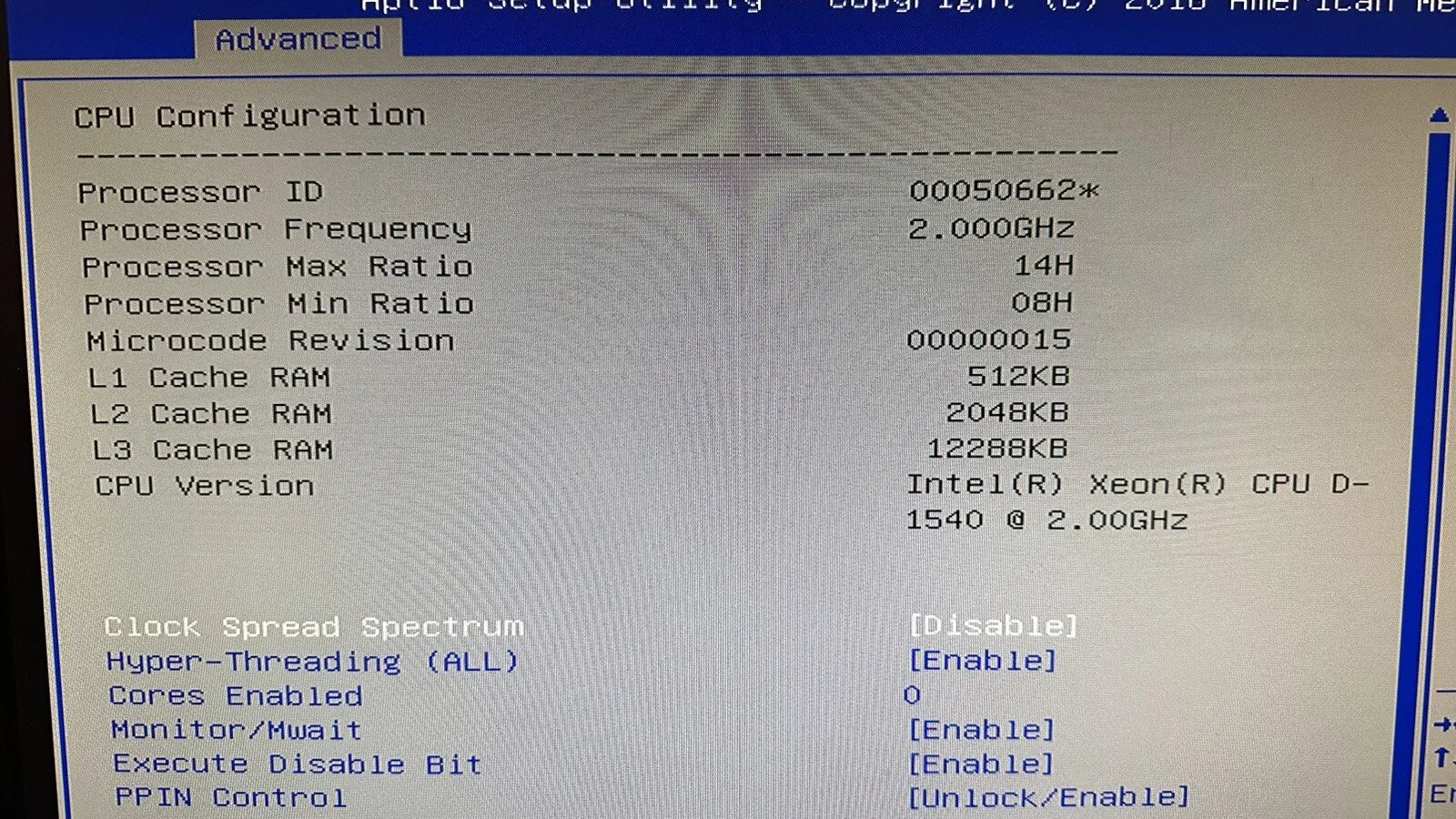

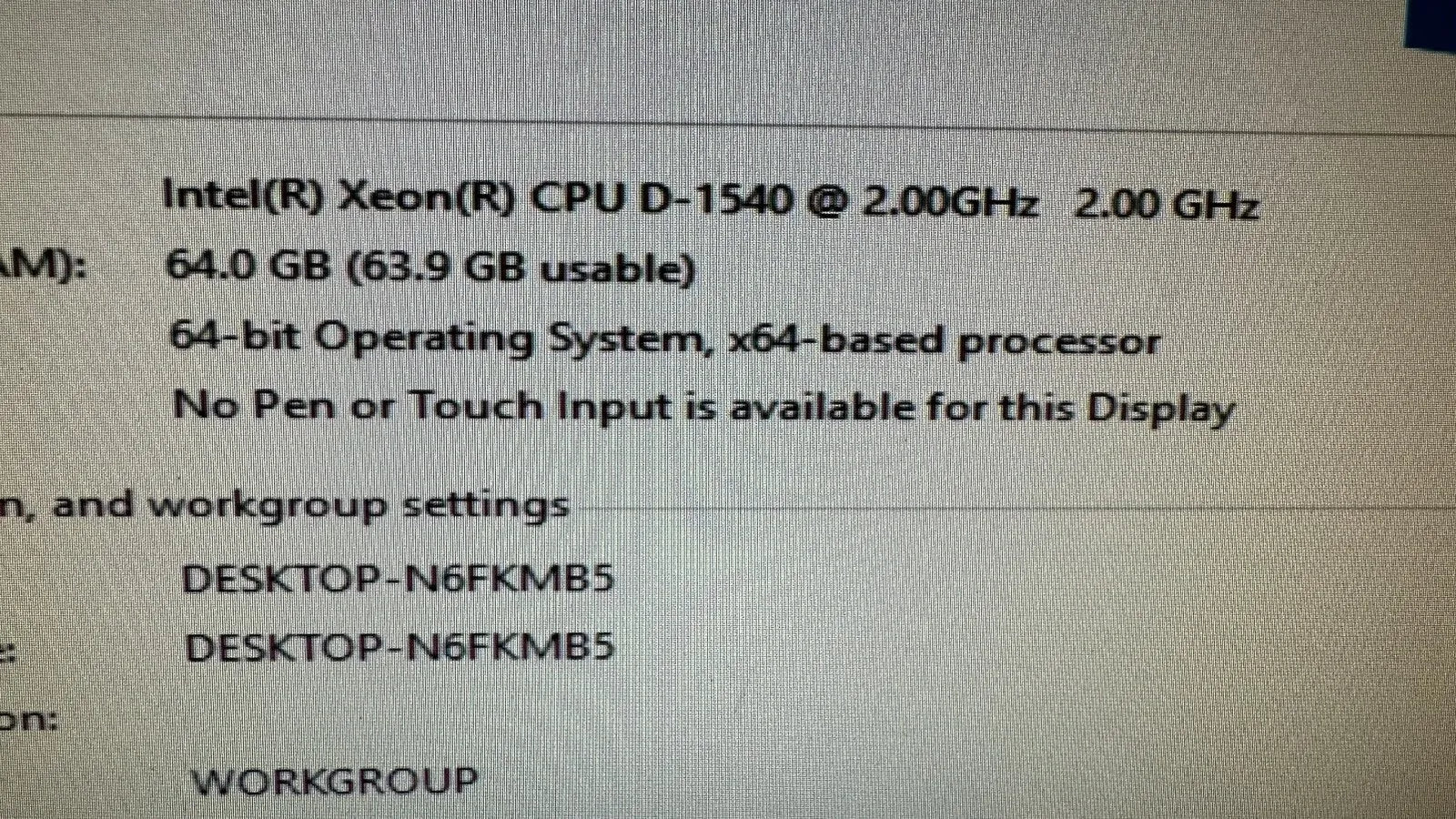

Intel Xeon-D 1540 8 Core 2.0-2.6GHz CPU (This CPU is integrated into motherboard, not replaceable)

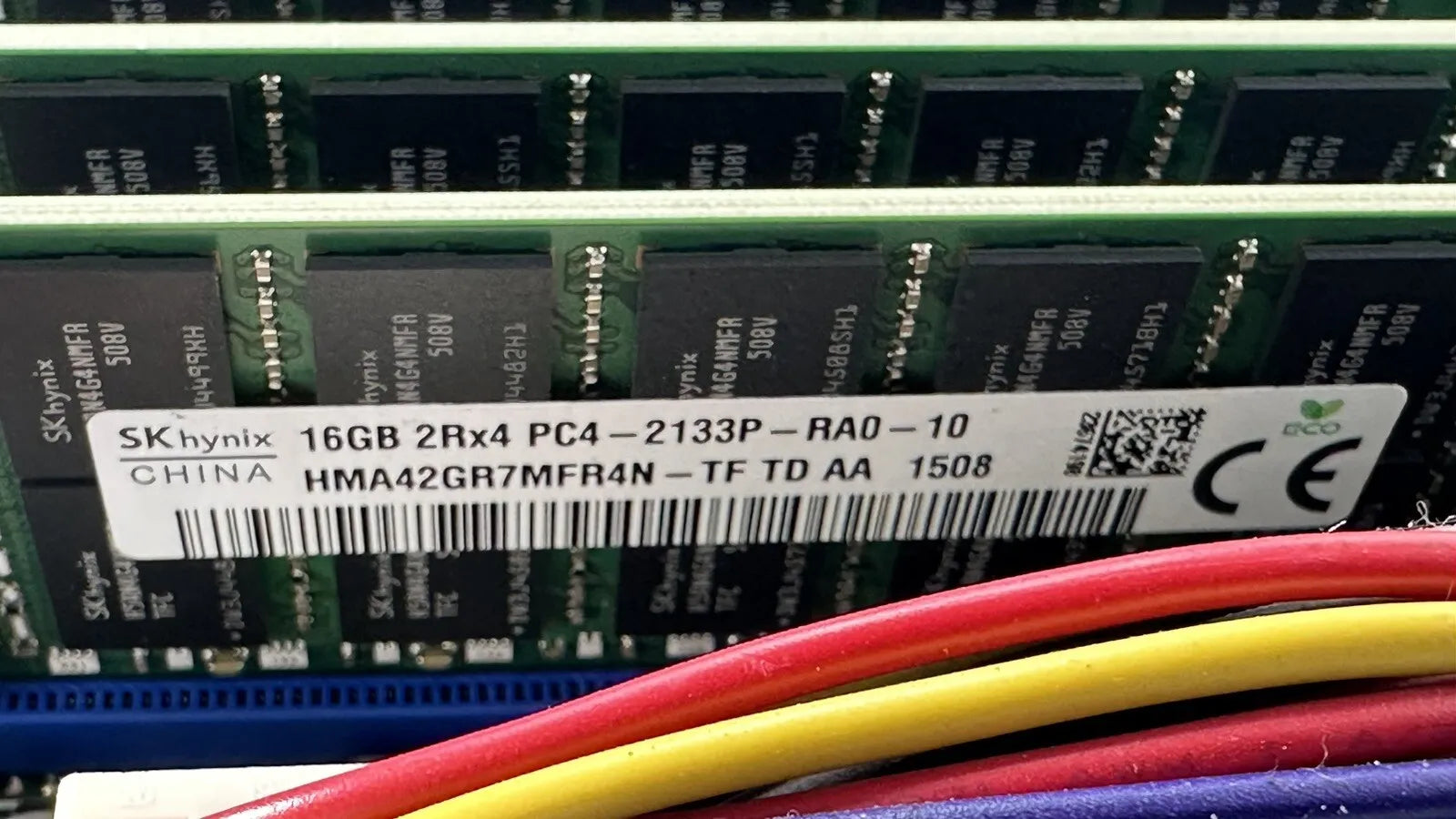

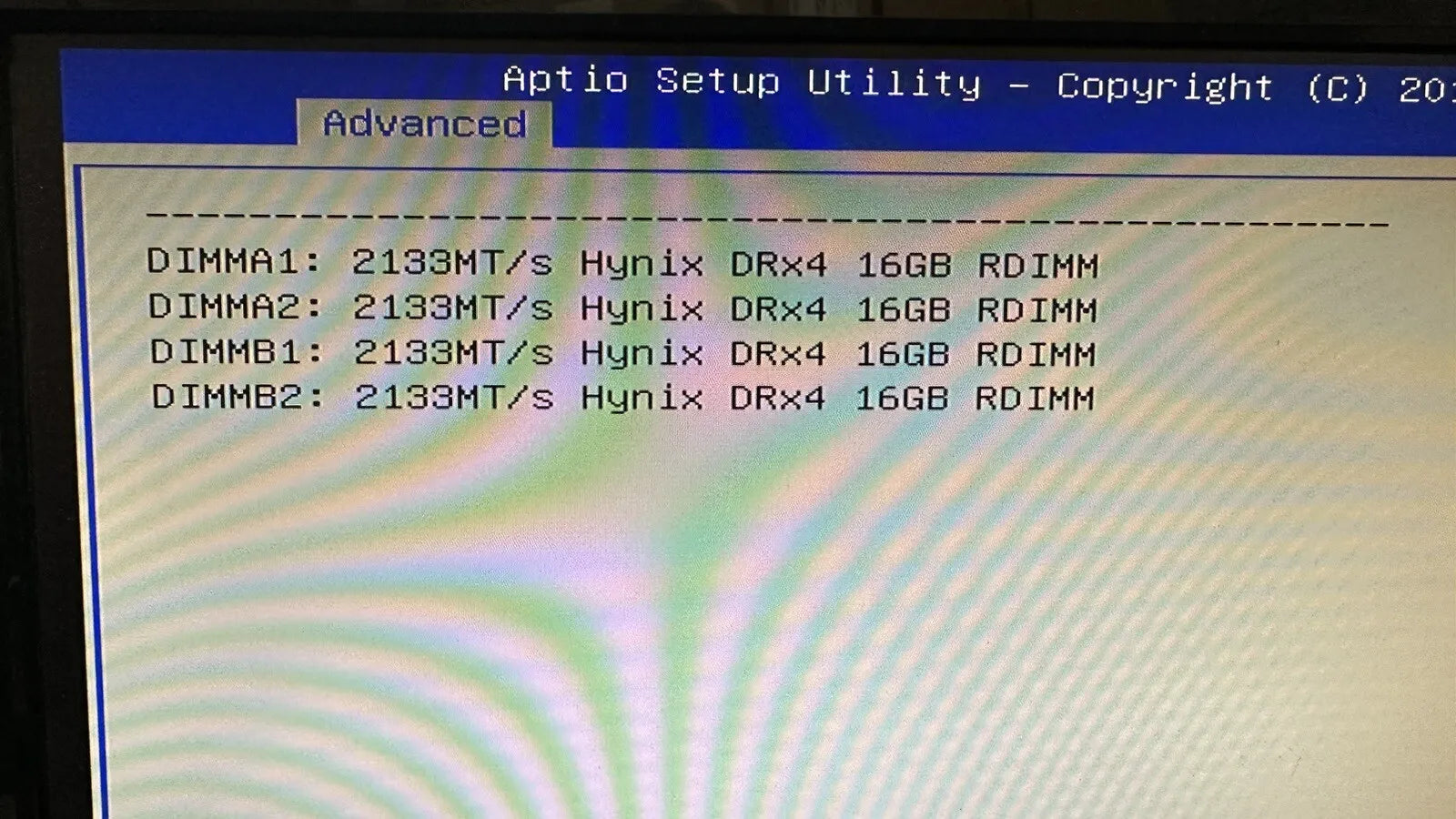

64GB DDR4 ECC RAM (4x 16GB 2133MT/s ECC Registered DIMMs)
1x 480GB M.2 SSD
Up to 4x 2.5" SATA SSDs (drive bays installed, SATA cables included)
2x 1GbE RJ45 NIC Intel i350-AM2
1x 200W PSU
Rack ears

We can modify configuration to spec, please inquire

Thank you

Manufacturer Specs:


Motherboard

Super X10SDV-F
Processor/Cache
CPU
  • Intel® Xeon® processor D-1540
  • FCBGA 1667 supported
  • CPU TDP support 45W
  • System-on-Chip
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)
On-Board Devices
SATA
  • SoC controller for SATA3 (6Gbps) ports
Network Controllers
  • Dual LAN via Intel® i350-AM2 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • BMC integrated ASPEED AST2400
Input / Output
SATA
  • 6x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 2.0 ports (4 headers, Type A)
  • 2x USB 3.0 ports (rear)
Serial Port
  • 1x COM port (header)
VGA
  • 1x VGA Port
Others
  • TPM header
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-505-203B
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 9.8" (249mm)
Weight
  • Net Weight: 8 lbs (3.62 kg)
  • Gross Weight: 12 lbs (5.44 kg)
Available Colors
  • Black

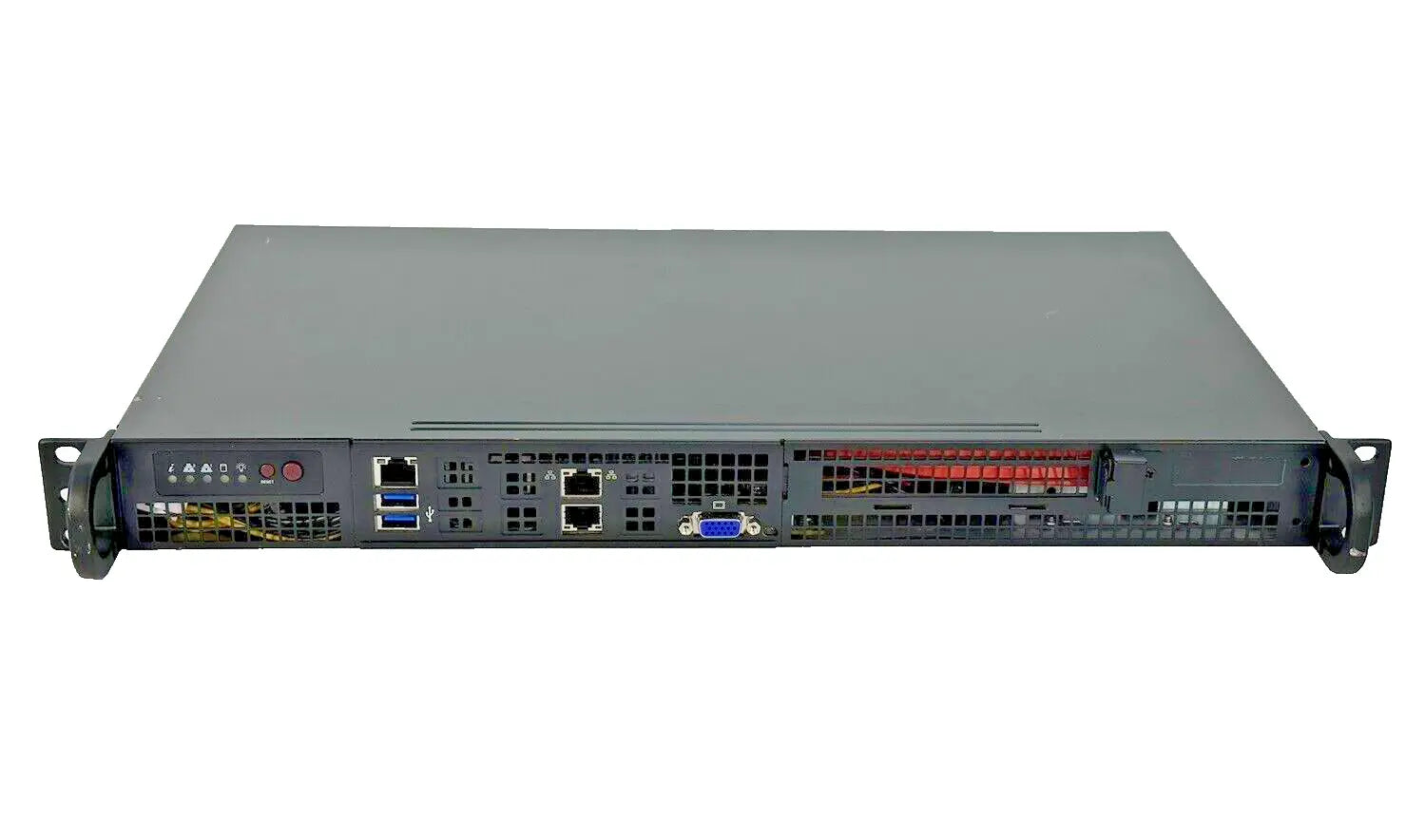

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Information LED
  • Information LED (temp., status)
Expansion Slots
PCI-E
  • 1x PCI-E 3.0 x16
  • 1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Drive Bays
HDD
  •  4x 2.5" internal SATA3 hard
      drive bays
System Cooling
Fans
  • Passive Heatsink, 40mm chassis fan

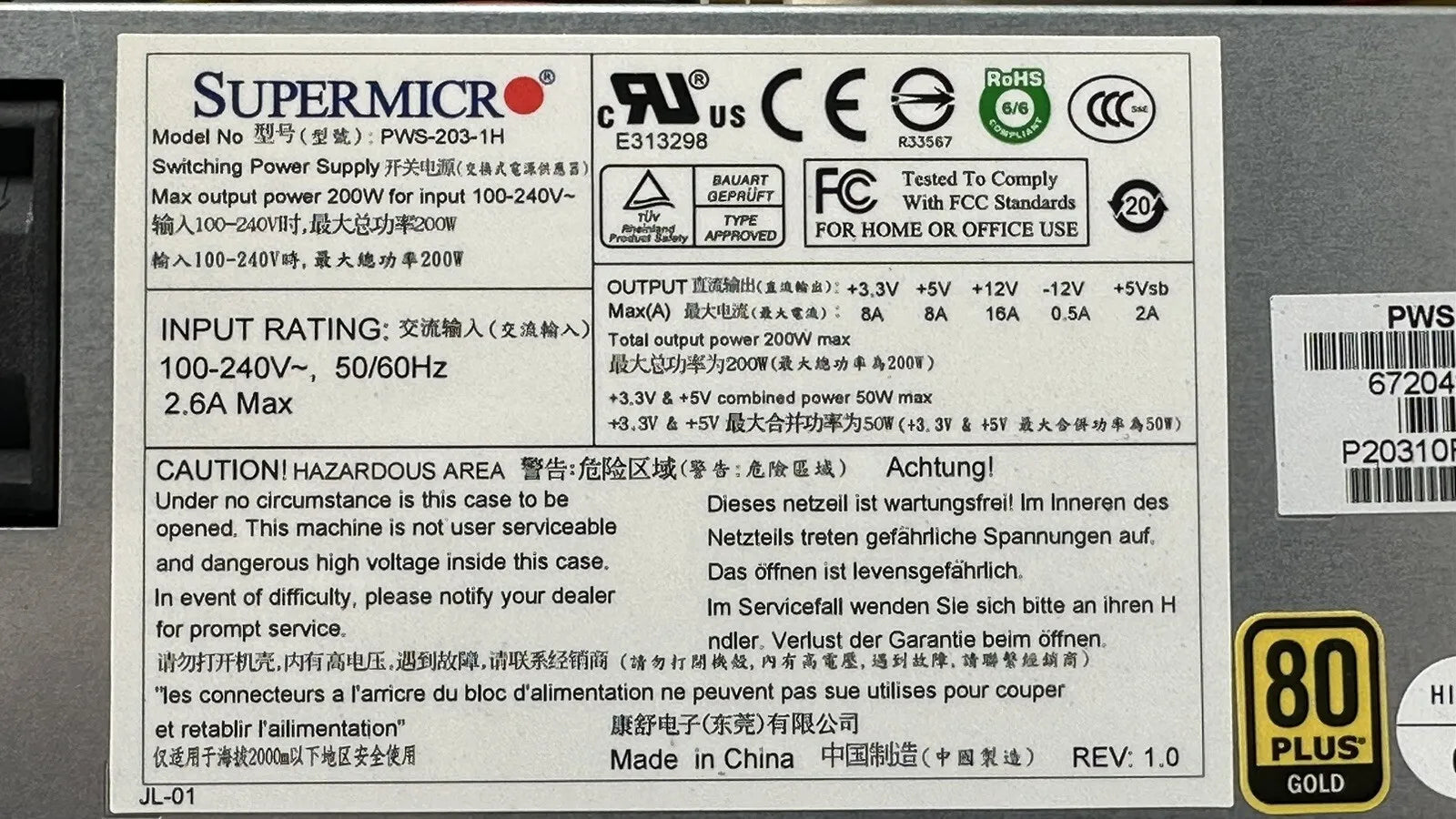

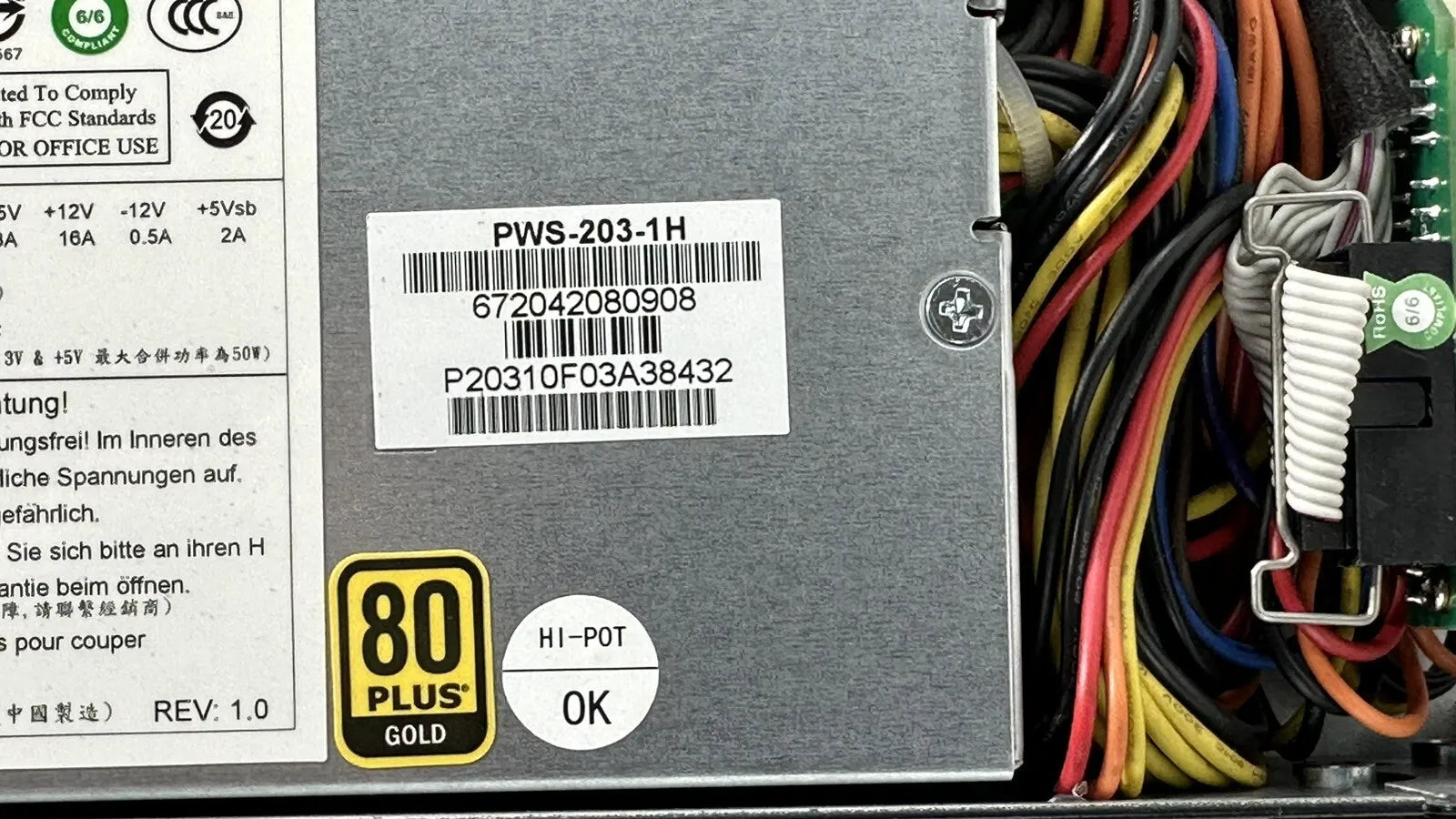

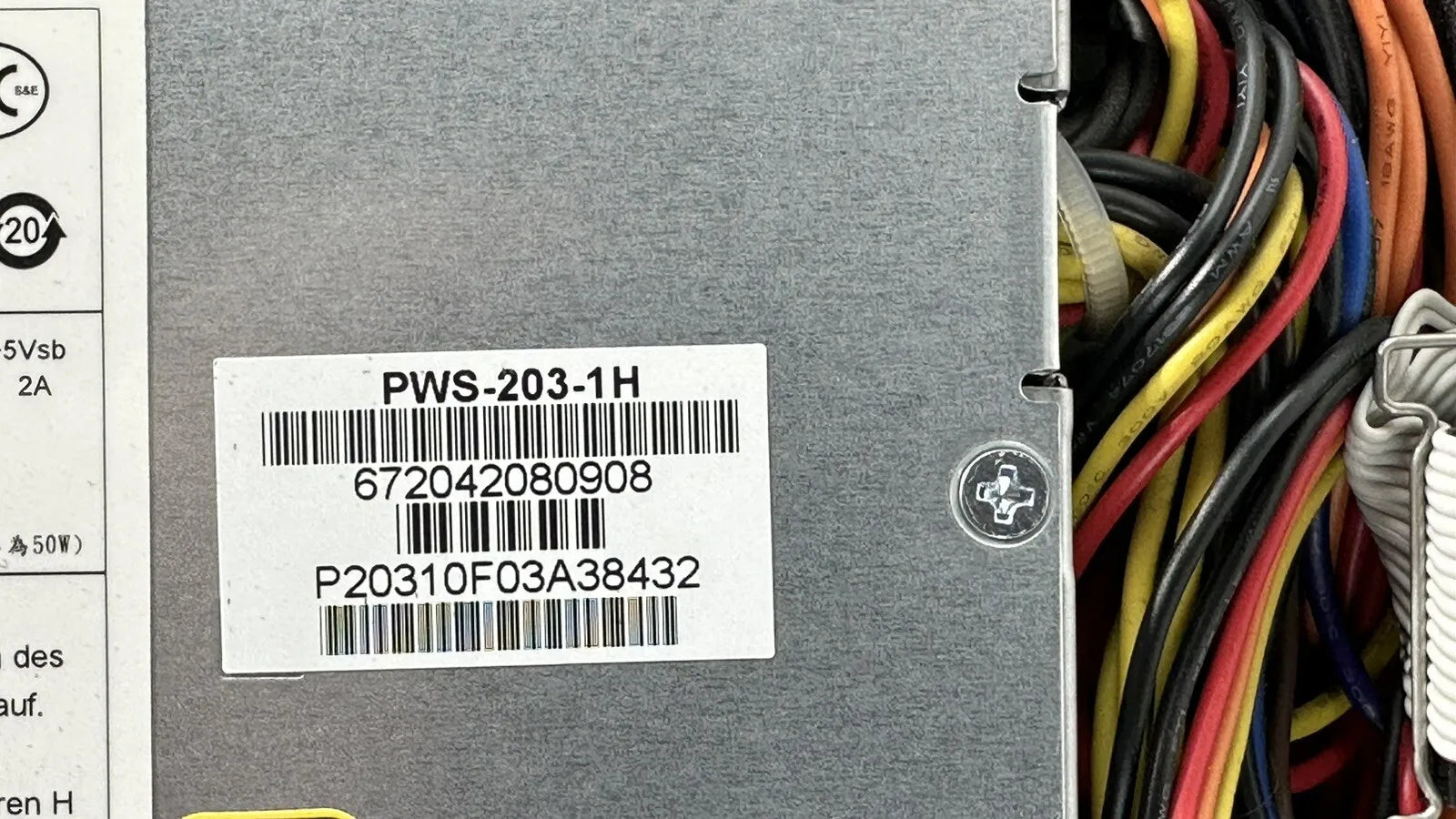

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
  • 8.0 Amp (max.)
+5V standby
  • 2.0 Amp (max.)
+12V
  • 16 Amp (max.)
-12V
  • 0.5 Amp (max.)
+3.3V
  • 8.0 Amp (max.)
Certification Gold Level Certified
  Gold Certified

System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI
  • RTC (Real Time Clock) Wakeup
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
